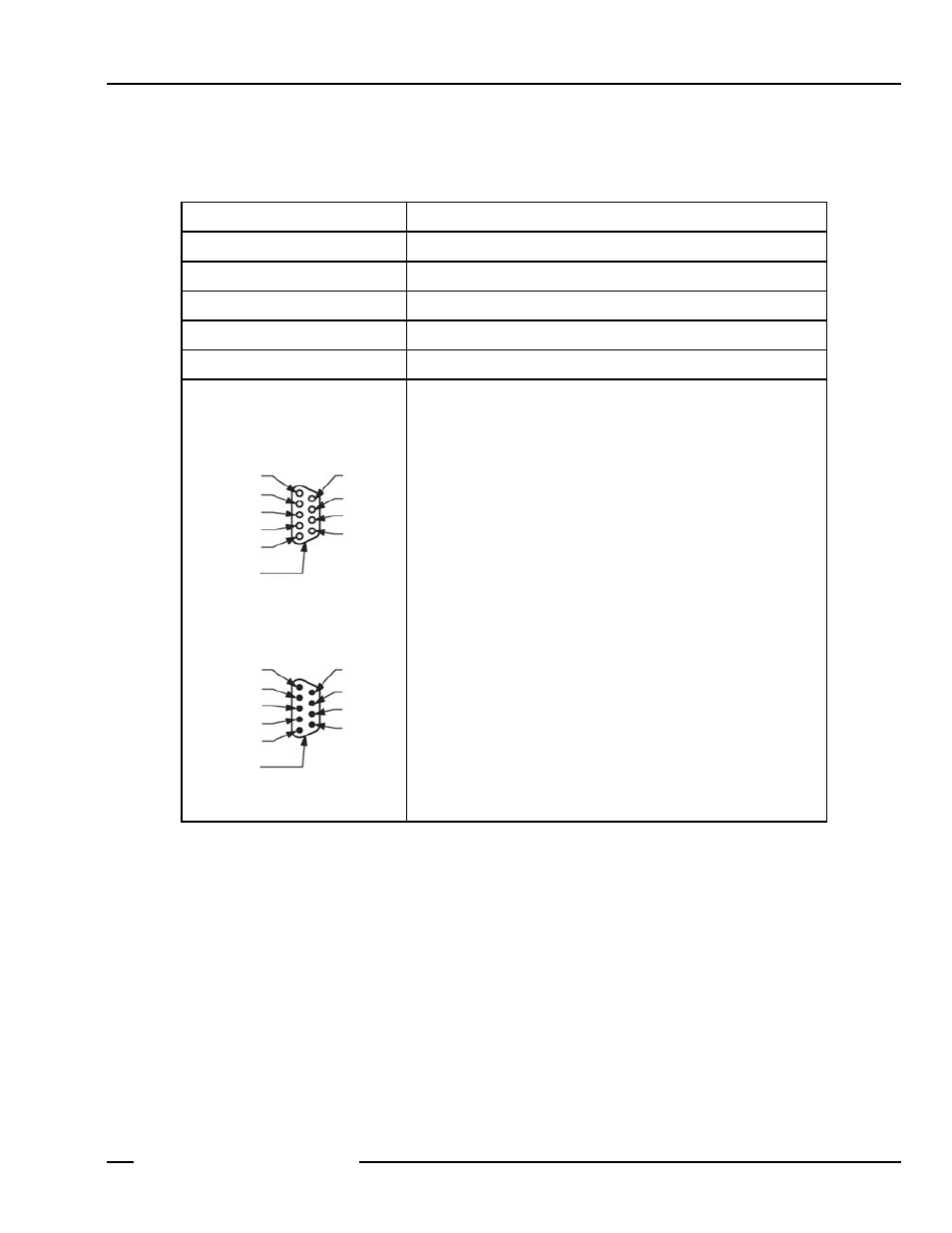

Serial Port Communication Specifications
Baud Rate 115K
Data Bits Eight
Stop Bits One
Parity Odd
Flow Control None
Connector DB9
Connector Pin-Out PresencePLUS Pro Controller (Female):
Pin 1: Received line signal detect
Pin 2: Transmit data
Pin 3: Receive data
Pin 4: Unused
Pin 5: dc common
Pin 6: Unused
Pin 7: Unused
Pin 8: Unused
Pin 9: Unused
-------------------------
-------------------------
PC COM Port (Male):
Pin 1: Received line signal detect
Pin 2: Received data
Pin 3: Transmitted data
Pin 4: DTE ready
Pin 5: Signal ground
Pin 6: DCE ready
Pin 7: Request to send
Pin 8: Clear to send
Pin 9: Ring indicator
1
9
8
7
6
5
4
3
2
1
9
8
7
6
5
4
3
2
Shield
Shield
DB9 Female
DB9 Male
