63. Re-insert TPA and C12/ X12 Connector into M-BEC.
Figure 16.
64. Remove the C11/ X11 Connector (Light Gray) or
C10/ X10 Connector (Gray) from the M-BEC. Figure
16.
65. Remove the TPA from the C11/ X11 Connector.
Figure 17.
66. If Blue wire does not exist in Connector C11/
X11 Cavity 5 or Connector C10/ X10 Cavity 8:
• Snap the supplied Jumper Harness into black
connector on the supplied mirror harness. Figure
32.

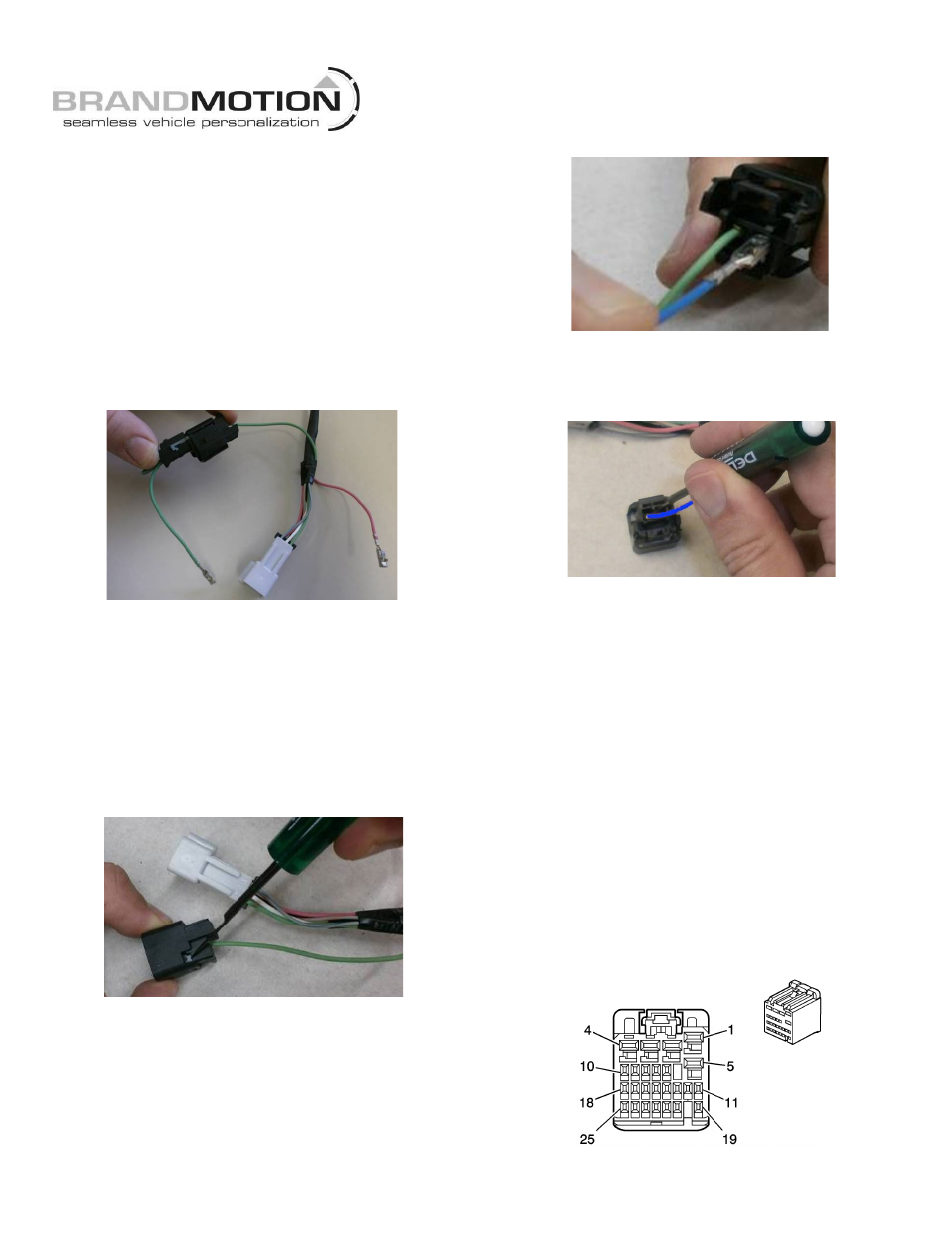

FIGURE 32
• Connect the Green wire of the Jumper Harness to
cavity 5 of C11/ X11 Connector or cavity 8 of C10/
X10 Connector. Figure 17. Proceed to Step 68.
If Blue wire exists in Connector C11/ X11 Cavity
5:
• Unlock the black connector of the supplied mirror
harness. Use Delphi Terminal Tool or a small flat
blade watch repair screwdriver to slide over the gray
TPA device. Figure 33
FIGURE 33
• Remove the Blue wire from cavity 5 of the C11/
X11 connector.
• Insert blue wire into the other cavity of the black
connector on the supplied Mirror Harness. Figure34.
FIGURE 34
•
Use Delphi tool 12094429 or a small flat
screwdriver to press the terminal of the Blue
wire into the connector. Figure 35.
FIGURE 35
•
Slide gray TPA over inside the black
connector to lock Green and Blue wires into
place.
•
Snap the supplied Jumper Harness into black
connector on the supplied mirror harness.
Figure 32. Then, connect the Green wire of
the Jumper Harness to cavity 5 of the C11/
X11 connector (where Blue wire was
removed). Figure 17.
67. Re-insert TPA and C11/ X11 Connector into M-BEC.
Figure 16. Proceed to Step 68.
68. If all M-BEC connections were secure and no
fuses were blown and Reverse was still not
present, Reverse must be located in the under
dash BCM left of the steering wheel. (Figure 15)
A. Cut connector off green Reverse (+) wire of
supplied Mirror Harness and splice to wire in
Brown BCM X5 Connector Cavity 11. Figures 15 &
36.
FIGURE 36
