INSTALLATION
INSTRUCTIONS
9503 and 9504 Instructions 7-10-13.doc 5 of 12
950

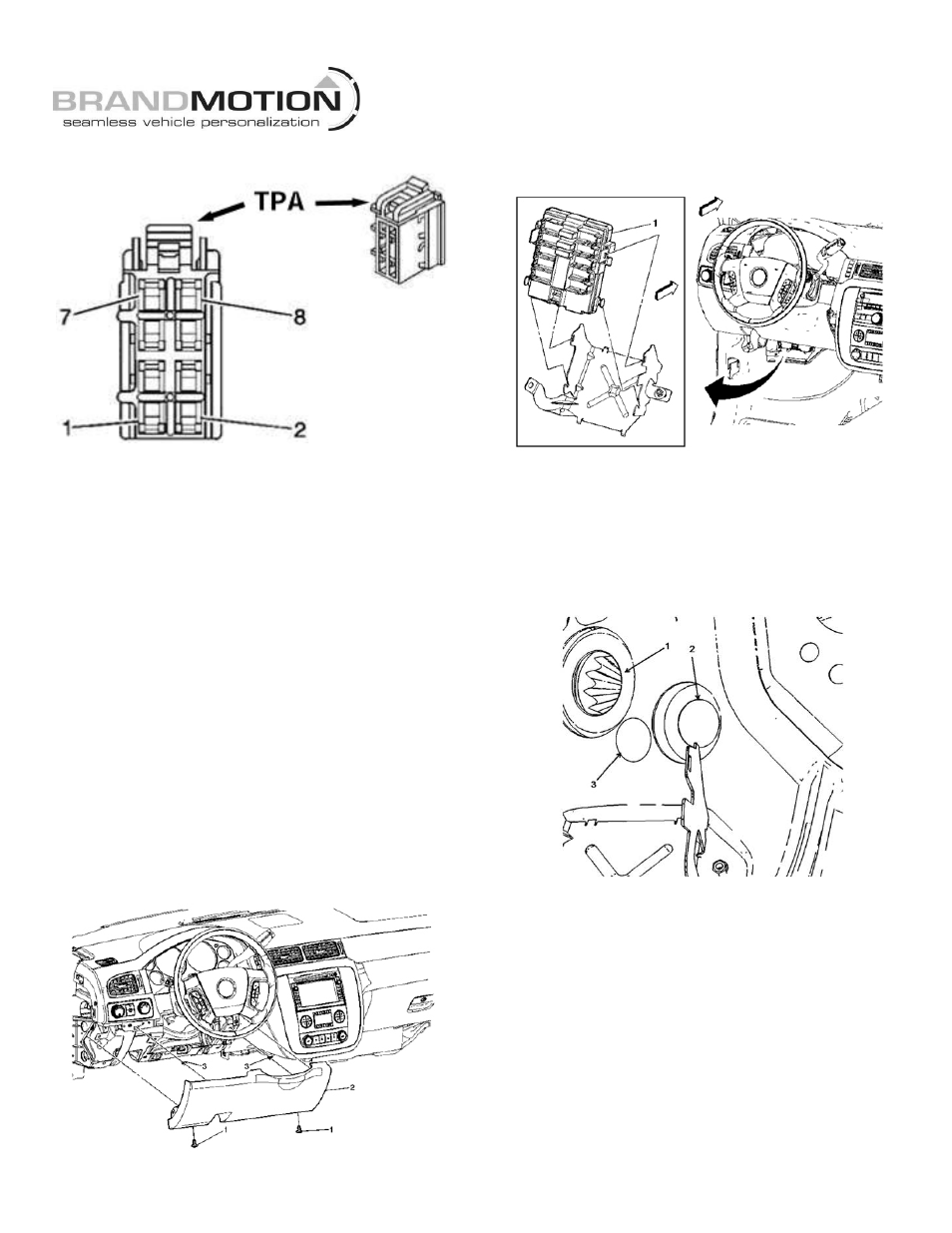

FIGURE 17
33. If Reverse signal is NOT present in the C10/ X10
Connector or C11/ X11 Connector:
A. Check that bail that secures the M-BEC
connectors is fully locked. Repeat Step 33.
B. If Reverse signal is still not present, check Fuse
Block for any blown fuses. Figure 15. Replace
any blown fuses and repeat Step 33.
C. If Reverse signal is still NOT present,
connection to Reverse signal must be made at
the BCM rather than the C10/ X10 or C11/ X11
Connector (refer to Step 67 under “Connect
Mirror Harness to Power, Reverse, and
Ground”).
Cut Accessory Pass-Through in Front of
Dash
34. Remove Parking Brake Release Handle Bolt using a
10mm socket and remove Handle. Remove two
Knee Bolster Screws (1) using a Phillips screwdriver
and remove Knee Bolster (2). Figure 18.
FIGURE 18
35. Disengage M-BEC (1) from support bracket. Figure
19.
FIGURE 19
36. Relocate M-BEC up into the IP to gain access to
Front-of-Dash Matte Opening behind M-BEC.
37. Locate cut-out in dash matte. Locate the dimple in
the sheet metal and then use a center punch to help
start a drill bit as close as possible to dimple. Using
a power drill and a 25.4mm (1”) hole saw, drill out
the chassis harness pass-through (2). Figure 20.
FIGURE 20
38. If this location is occupied by Trailer Brakes (&JL1)
or another Accessory, drill a new Chassis Harness
pass-through (3) between the IP Harness (1) and
Trailer Brake (2) pass-through grommets. Figure 20
39. Clean rough edges using a Deburring Tool and apply
Anti-Corrosion Coating to opening. Figure 21.
Remove Inside Rear View Mirror
40. Disengage Inside Rear View Mirror (ISRVM)
connector. Figure 21.
