INSTALLATION INSTRUCTIONS
9503 and 9504 Instructions 7-10-13.doc
2
of
12
950

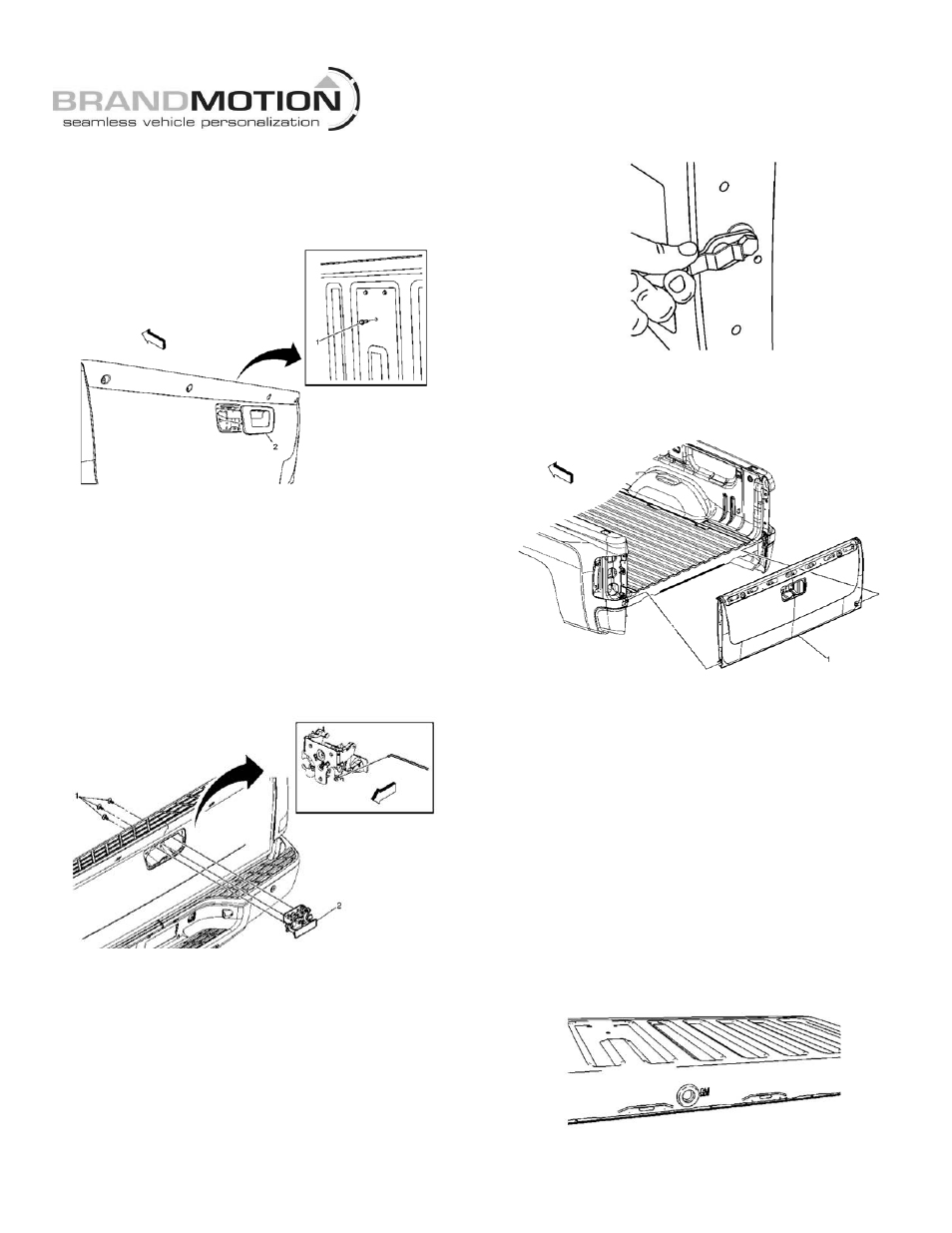

Install Camera Bezel into Tailgate
5. Lower Tailgate and remove center bezel mounting
bolt (1), using 13mm socket. Figure 1.
FIGURE 1
6. Release, by hand, the three retainer clips securing
the bezel (2) to the Tailgate outer panel. Lift the
Tailgate latch handle in order to aid in the removal
of the latch handle bezel. Figure 1.
7. If the Truck is not equipped with Tailgate Lock
(&A60), remove the two upper Tailgate Latch
Handle Bolts (1) from the Tailgate Latch Handle (2),
using 13mm socket. Figure 2. Release Rods before
removing (inset). If equipped, skip this step.
FIGURE 2
8. Prepare a work surface for the Tailgate, as it will be
removed.
9. Disconnect two Tailgate support cables. Figure 3.
FIGURE 3
10. With the aid of an assistant, remove the Tailgate
and locate to clean work surface. Figure 4.
FIGURE 4
11. Locate the supplied Template Sheet for the Tailgate
and Pickup Box Sill.
Note: For Model Years 2009 through 2013
some vehicles may already have a flanged
hole in the pickup box sill. If this is the case,
remove the flange from the front side of the
sill and skip Steps 13 and 15.
12. Cut out Tailgate Template and attach to Tailgate
using tape. Using a Center Punch, mark the center
of hole.
13. Cut out Sill Plate Template and attach to Pickup Box
Sill using tape. Using a Center Punch, mark the
center of hole.
14. Using a power drill and a 29mm (1-1/8”) Hole Saw,
cut out the harness pass-through in the Tailgate.
Figure 5.
FIGURE 5
