INSTALLATION
INSTRUCTIONS
9503 and 9504 Instructions 7-10-13.doc 4 of 12
950

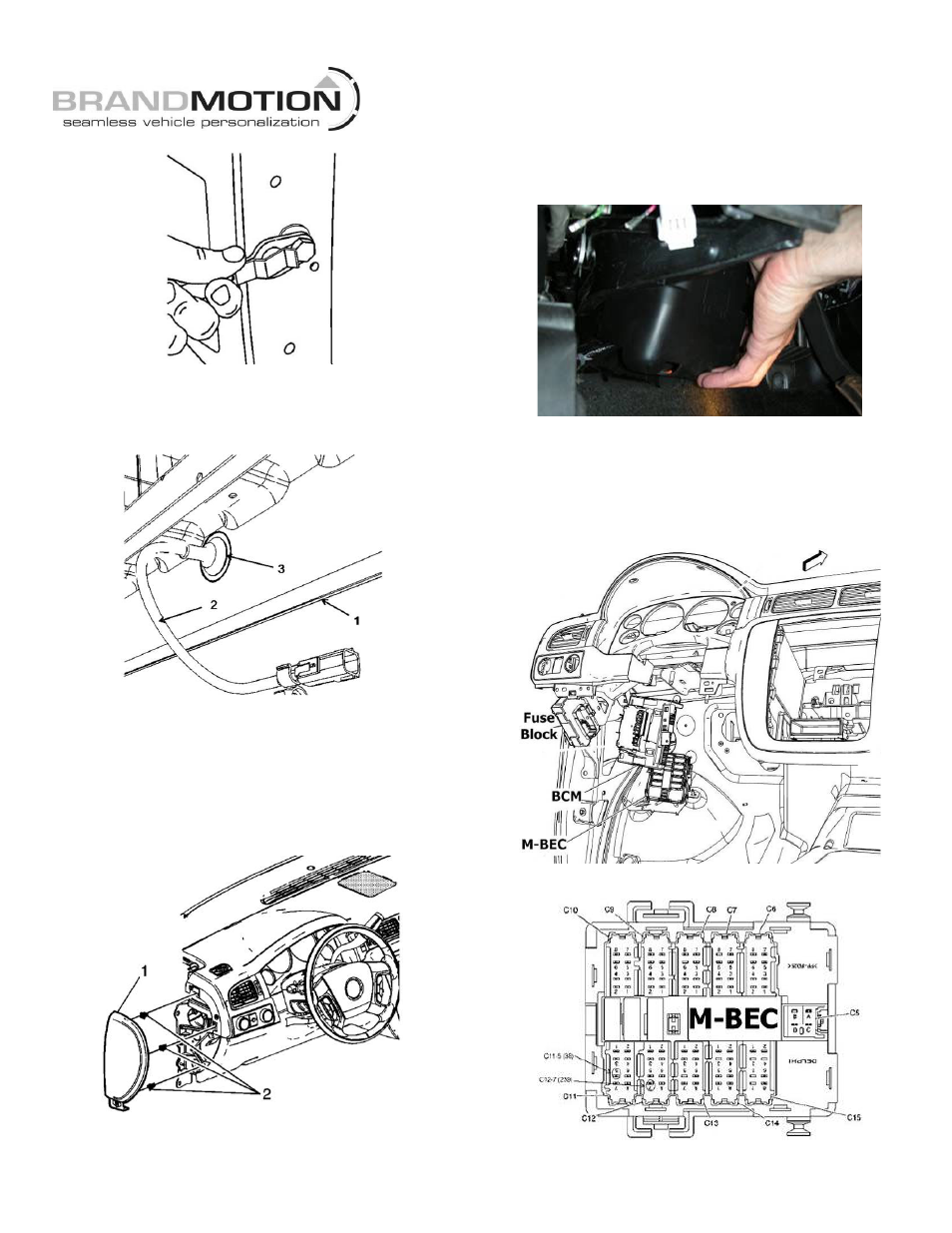

FIGURE 11
29. Pull the Camera Assembly Harness (2) through
License Plate Opening until the first grommet (3) is
properly seated in the Pickup Box Sill (1). Figure 12.
FIGURE 12
Determine Reverse Signal Location
30. Using a Trim Removal Tool, remove Left Instrument
Panel Outer Trim Cover (1). Figure 13.
FIGURE 13
31. Remove M-BEC cover under the dashboard by popping
it off with hands. Figure 14.
FIGURE 14
32. Have an assistant set parking brake, start vehicle,
and shift into Reverse. Using a digital multimeter,
check for Reverse signal in Cavity 5 at the Light
Gray C11/X11 Connector OR Cavity 8 of Gray C10/
X10 Connector in the M-BEC. Figures 15, 16, and 17.
FIGURE 15
FIGURE 16
