INSTALLATION
INSTRUCTIONS
9503 and 9504 Instructions 7-10-13.doc 3 of 12
950

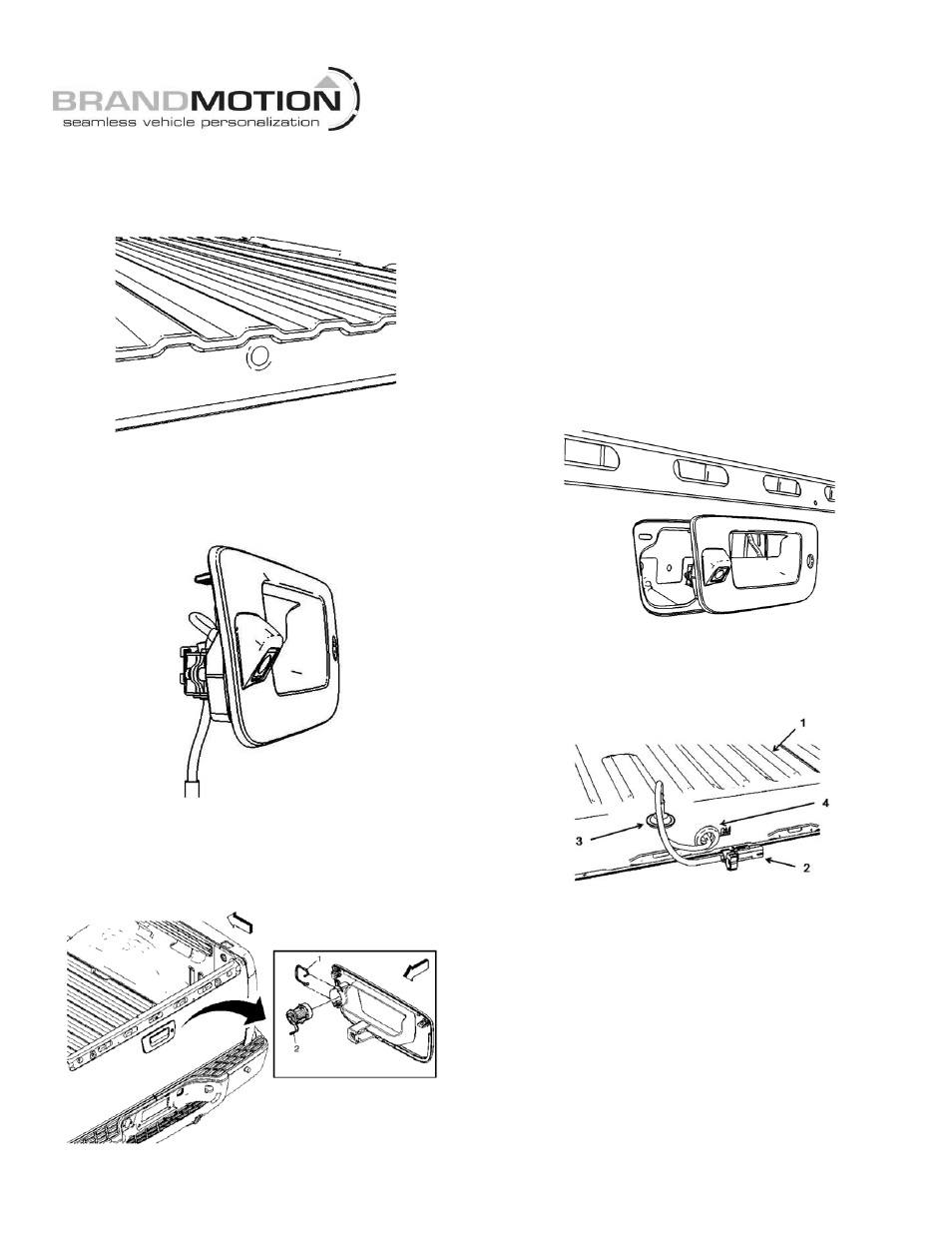

15. Using a power drill and a 29mm (1-1/8”) Hole Saw,
cut out harness pass-through in Pickup Box Sill.
Figure 6.
FIGURE 6
16. Clean rough edges using a Deburring Tool.
17. Apply supplied Anti-Corrosion Coating to the two cut
outs.
18. Locate supplied Camera Bezel Assembly. Figure 7.
FIGURE 7
19. If Truck is equipped with a factory Tailgate Lock,
remove lock cylinder from the original Tailgate
Bezel. Remove Tailgate Lock Cylinder Retaining Clip
(1) and then Tailgate Lock Cylinder (2). Figure 8.
FIGURE 8
20. If equipped, insert the Tailgate Lock Cylinder (2)
into the new Tailgate Bezel and re-attach the
Tailgate Lock Cylinder Retaining Clip (1). Figure 8.
a. If the Truck is not equipped with factory
Tailgate Lock, install supplied Lock Plug.
b. If locking features are desired, a Tailgate Latch
Handle (part number 25775280) and a Tailgate
Lock Cylinder (part number 25775278) are
available through GM dealers.
21. Install the new Tailgate Bezel Assembly, by first
routing the Camera Assembly harness pigtail
through the Tailgate Bezel opening down through
the Tailgate to the 29mm hole at the bottom of the
Tailgate. Figure 9.
FIGURE 9
22. Pull connector (2), first grommet (3), and second
grommet (4) through new Tailgate (1) pass-through.
Figure 10.
FIGURE 10
23. Snap Tailgate Bezel Assembly into Tailgate.
24. Seat second grommet (4) securely around opening.
Figure 10.
25. Install remaining Tailgate Latch Handle Bolt in
Tailgate and tighten all three 13mm bolts to 25 N·m
(18 lb ft).
26. If present, remove Rear License Plate.
27. With the help of an Assistant, re-install the Tailgate
onto the Pickup Box, carefully routing the Camera
harness through the opening on the Pickup Box Sill.
28. Re-attach Tailgate Support Cables and close
Tailgate. Figure 11.
