INSTALLATION
INSTRUCTIONS
9503 and 9504 Instructions 7-10-13.doc 12 of 12

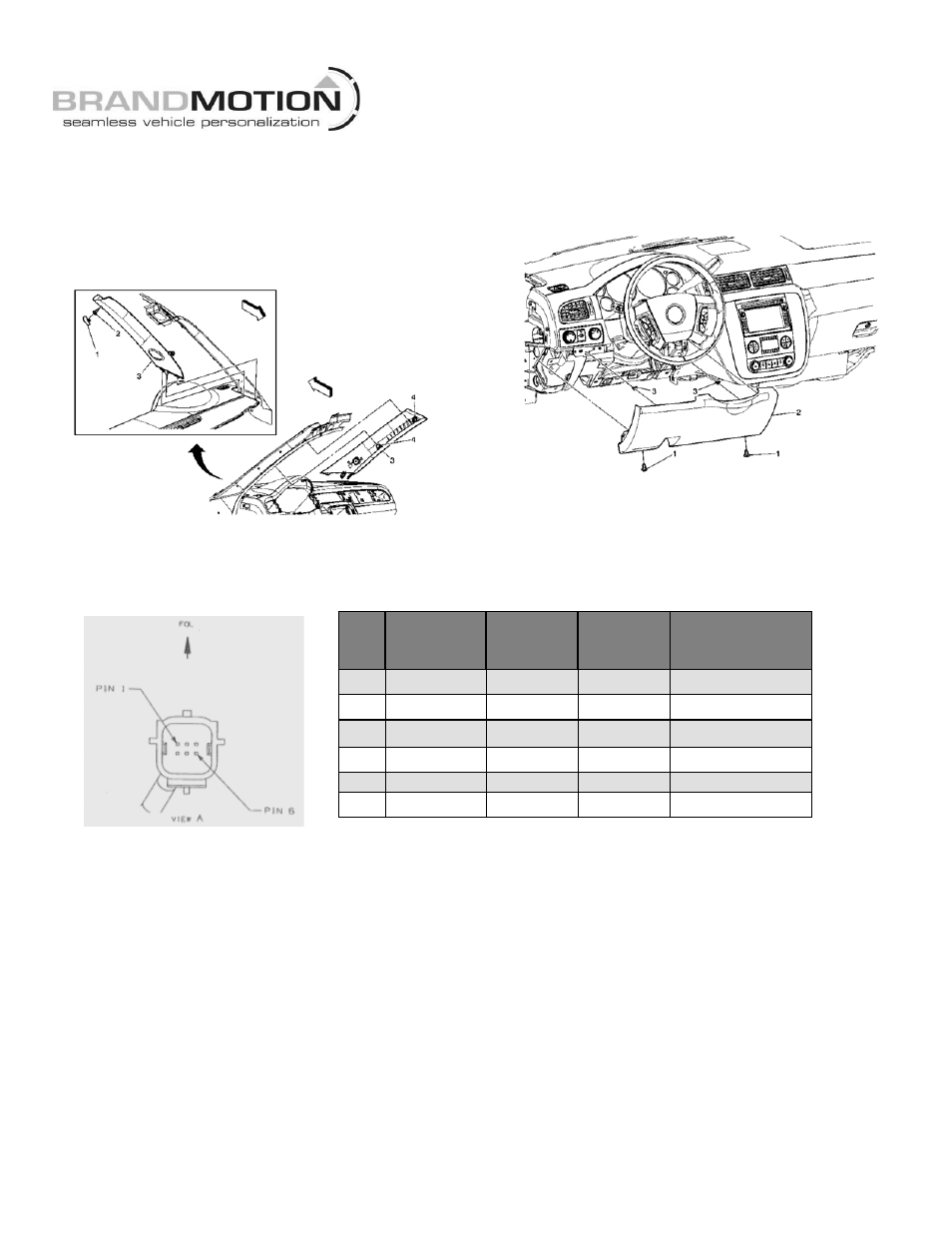

96. Re-install the Driver’s Side Windshield Side Garnish
Molding Assembly, secure the supplied Mirror
Harness to existing harness using supplied Wire
Ties, and reconnect the electrical connector (see
Figure 24). Install and tighten the Screw (2) to 2
N·m (18 lb in). Install the Screw Cover (1). Figure
48.
FIGURE 48
97. Re-install the Knee Bolster Assembly. Tighten Phillips
Screws to 2 N·m (18 lb in). Re-install Parking Brake
Release Handle and Bolt, tighten to 9 N·m (80 lb in).
Figure 49.
FIGURE 49
98. Re-install Instrument Panel Outer Trim Cover. See
Figure 13.
Camera, Chassis, and Mirror Harness Pinouts
(Reference only)
PIN
# FUNCTION
CAMERA
HARNESS
COLOR CHASSIS
HARNESS
COLOR MIRROR
HARNESS
COLOR
1 Video (+) Yellow White Gray/Dark Blue
2 Shield White Blue White
3 Reverse Blue Green Green
4 Video (-) Brown Brown Gray/Orange
5 Ground Black Black Black
6 Ignition (+) Red Red Pink
