Bendix Spicer Foundation Brakes LLC • 901 Cleveland Street • Elyria, OH 44035 • 1-866-610-9709 • www.foundationbrakes.com 91
Spider

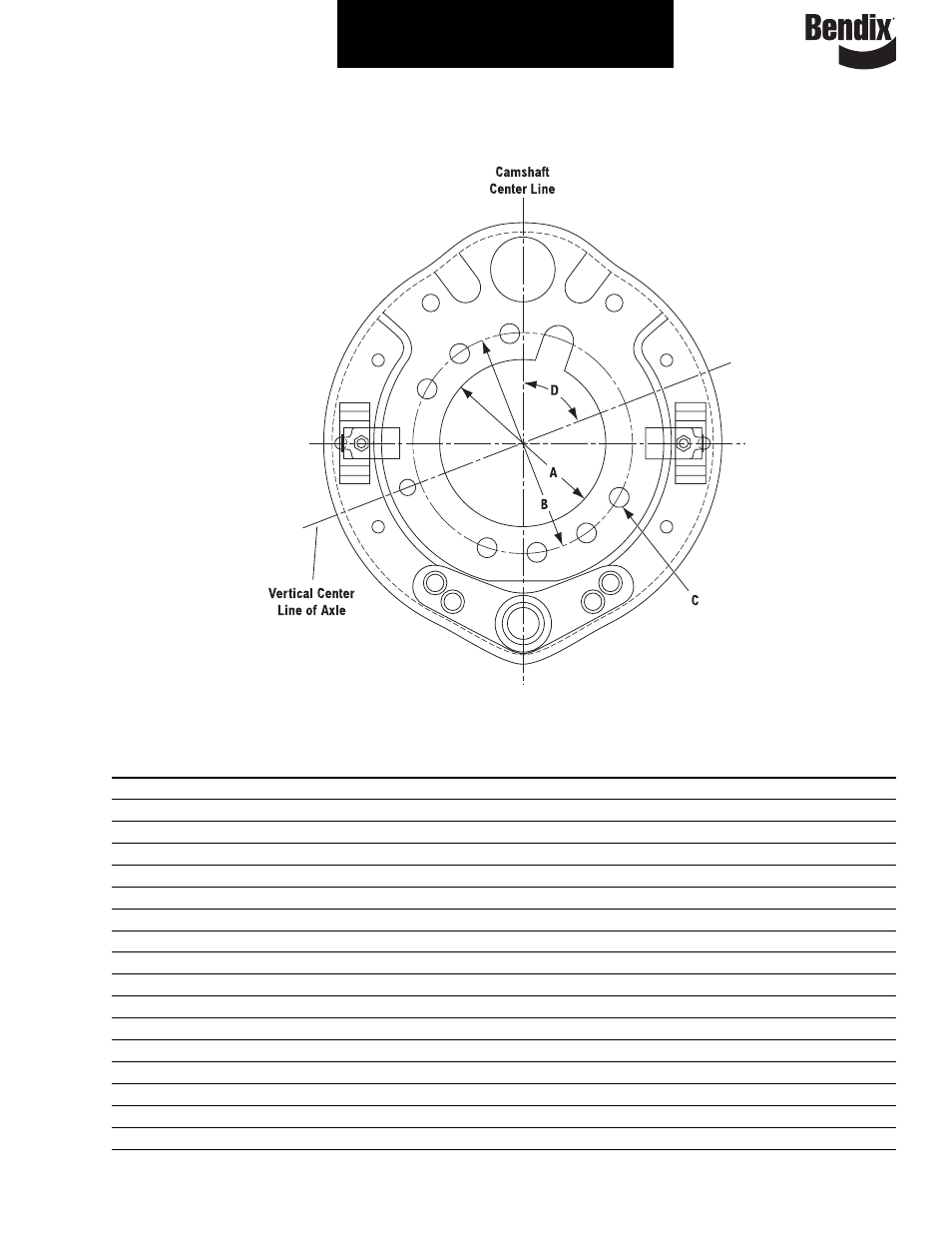

Stamped Spider and Pin Assembly 15" x 4" (pages 91–93)
For Models: EB-150-4L & ES-150-4L
“C”
Part No. “A” “B” “C” Mtg. Hole “D” Brake
Stamped Pilot Diameter Bolt Circle No. of Holes Diameter Mtg. Offset
on Piece Part No. in (mm) in (mm) & Pattern in (mm) Index Angle in (mm) Remarks
12 816012 5.503 (139.776) 7.250 (184.150) 7 Steer 0.659 (16.739) 53° 1.500 (38.100)
13 816013 5.503 (139.776) 7.250 (184.150) 7 Steer 0.659 (16.739) 307° 1.500 (38.100)
44 813044 5.503 (139.776) 6.437 (163.499) 8 Steer 0.659 (16.739) 291° 1.500 (38.100)
45 813045 5.503 (139.776) 6.437 (163.499) 8 Steer 0.659 (16.739) 69° 1.500 (38.100)
080 974080 5.003 (127.076) 6.440 (163.576) 8 Steer 0.659 (16.739) 62° 1.500 (38.100)
081 974081 5.003 (127.076) 6.440 (163.576) 8 Steer 0.659 (16.739) 298° 1.500 (38.100)
084 817084 5.503 (139.776) 7.250 (184.150) 7 Steer 0.659 (16.739) 60° 1.500 (38.100)
084 974084 5.003 (127.076) 6.440 (163.576) 7 Steer 0.659 (16.739) 62° 1.500 (38.100)
085 817085 5.503 (139.776) 7.250 (184.150) 7 Steer 0.659 (16.739) 300° 1.500 (38.100)
085 974085 5.003 (127.076) 6.440 (163.576) 7 Steer 0.659 (16.739) 298° 1.500 (38.100)
088 974088 5.003 (127.076) 7.250 (184.150) 8 Steer 0.659 (16.739) 62° 1.500 (38.100)
089 974089 5.003 (127.076) 7.250 (184.150) 8 Steer 0.659 (16.739) 298° 1.500 (38.100)
128 975128 5.503 (139.776) 7.250 (184.150) 7 Steer 0.659 (16.739) 49° 1.500 (38.100)
129 975129 5.503 (139.776) 7.250 (184.150) 7 Steer 0.659 (16.739) 311° 1.500 (38.100)
130 816130 5.503 (139.776) 7.250 (184.150) 8 Steer 0.659 (16.739) 302° 1.500 (38.100)
131 816131 5.503 (139.776) 7.250 (184.150) 8 Steer 0.659 (16.739) 58° 1.500 (38.100)
162 819162 5.003 (127.076) 6.000 (152.400) 8 Steer 0.534 (13.564) 54° 1.500 (38.100)
