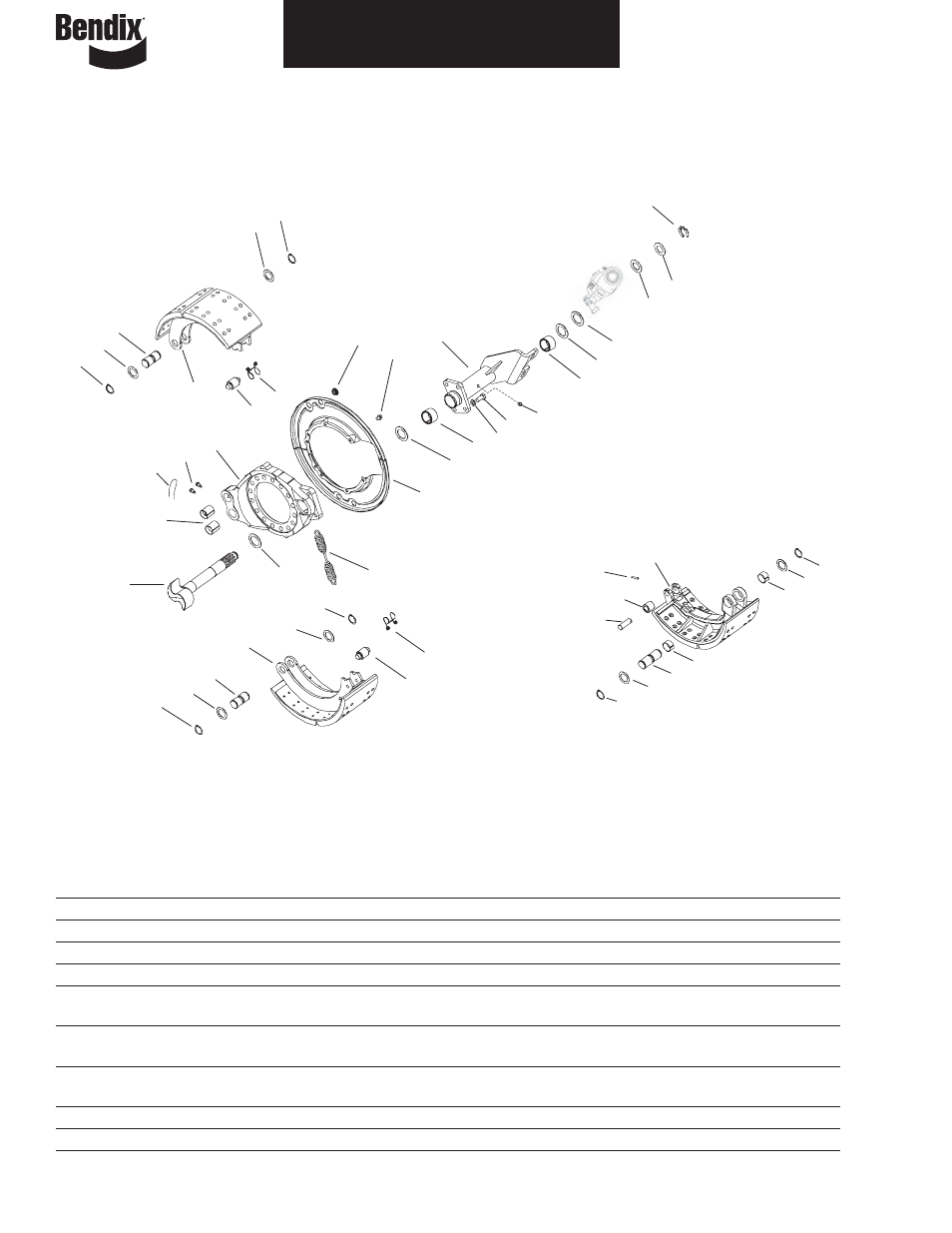

Brake Assembly
Cast Shoe "H" version
Fabricated Shoe "M" version shown
2
13
26
7
6
21
23
22
21
27
29
30
14
22
25
1
1
18
20
19
24
28
10
11
11
10
9
6
7
16
17
15
3
10
11
11
10
9
8
12
1
8
9
10
11
5
4
10
11
Brake Kits
Brake Spring Kit N/A
Camshaft Bushing Kit 1008047 Incls: Items 21-22, 30 Services 2 brake assys
Minor Overhaul Kit – "M" Series 812118 Incls: Items 6-7, 9-11, 13, 15-17 Services 1 brake assy
Minor Overhaul Kit – "H" Series 810213 Incls: Items 4-5, 8-13, 15-17 Services 1 brake assy
Brake Lining Kit Pages 20-22 Incls: Lining & Rivets Services 2 brake assys
Shoe & Lining Assys Pages 20-22 Incls: Shoes/Lining & Rivets Assembled Sold in Multi-Pack of 2
and Item #8 for “H” Series which services 1 brake assy
Major Overhaul Kit – “M” Series Pages 20-22 Incls: Items 6-7, 9-13, 15-17, & Services 1 brake assy
(2 Shoe & Lining Assys)
Major Overhaul Kit – “H” Series Pages 20-22 Incls: Items 4-5, 9-13, 15-17, & Services 1 brake assy
(2 Shoe & Lining Assys)
Brake Shoe Kit – “M” Series 812114 Incls: Items 1, 6-7 Services 1 brake shoe
Brake Shoe Kit – “H” Series 810214 Incls: Items 1, 4-5, 8 & 12 Services 1 brake shoe
Brake Assembly 16.5" – Heavy and Severe Duty Extended Service Brakes (pages 16–17)
For Models: ES-165-7M (Heavy Duty) & ES-165-7H (Severe Duty)
