Bendix Commercial Vehicle Systems ILLUSTRATED PARTS LIST BRAKES User Manual
Page 11
10 Bendix Spicer Foundation Brakes LLC • 901 Cleveland Street • Elyria, OH 44035 • 1-866-610-9709 • www.foundationbrakes.com

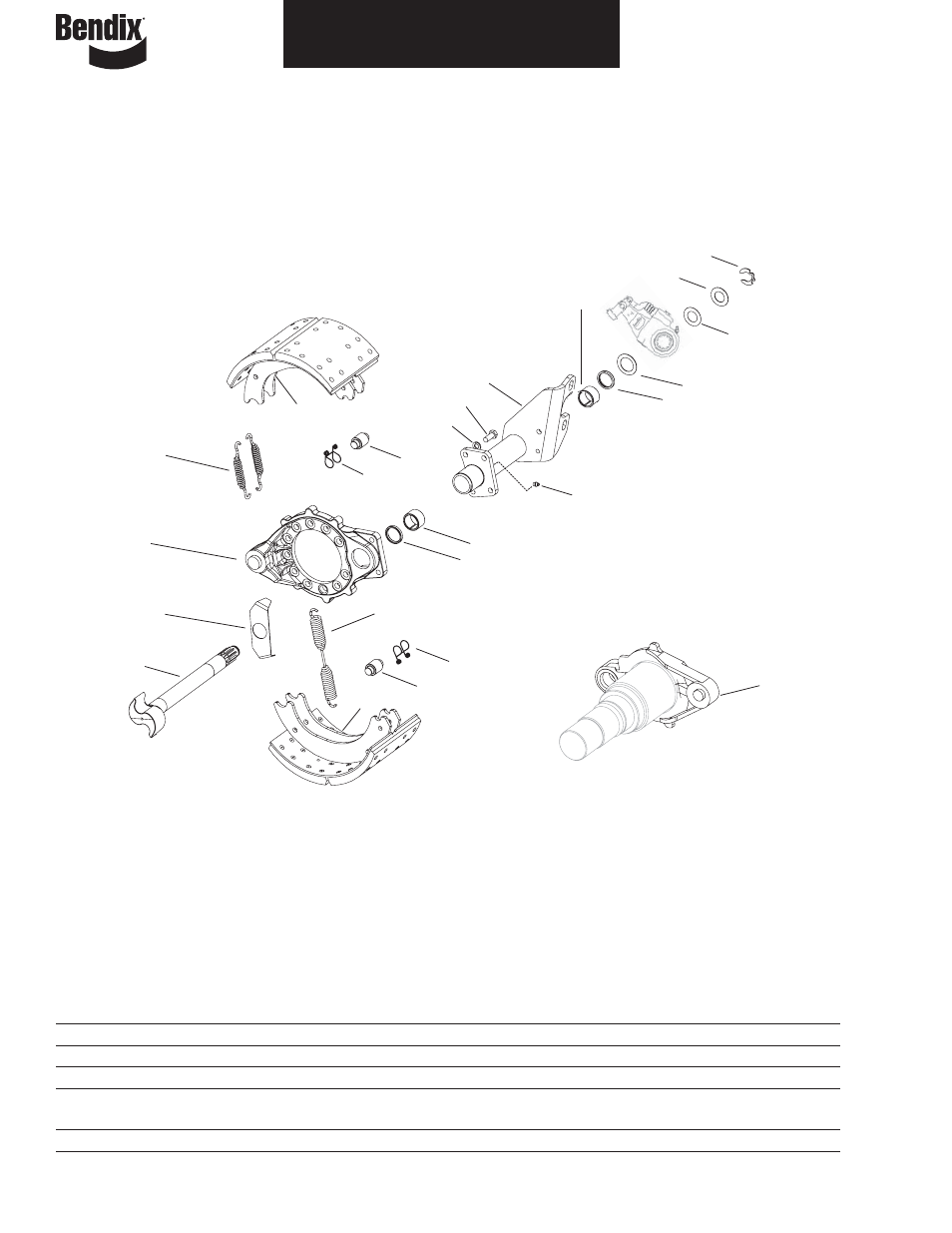

Brake Assembly
7
1
1
6
3
16
6
5
9
11
17
10
4
9
12
13
14
8
5
2
15
10
18
Brake Kits
Brake Spring Kit
815627
Incls:Items 2 & 3
Services 1 brake assy
Camshaft Bushing Kit
127808
Incls:Items 9,10,15
Services 2 brake assys
Minor Overhaul Kit
815626
Incls:Items 2-3, 5-6
Services 1 brake assy
Brake Lining Kit
Pages 20-22
Incls:Linings & Rivets
Services 2 brake assys
Shoe & Lining Assys
Pages 20-22
Incls:Shoe, Linings & Rivets assembled
Sold in Multi-Pack of 2
which services 1 brake assy
Major Overhaul Kit
Pages 20-22
Incls:Items 2-3, 5-6 & (2 Shoe & Lining Assys)
Services 1 brake assy
Brake Assembly 15" – Reduced Envelope Brakes (pages 10–11)
For Models: ES-150-8D (Drive Axle) & ES-150-8F (Trailer Axle) Reduced Envelope Brake
