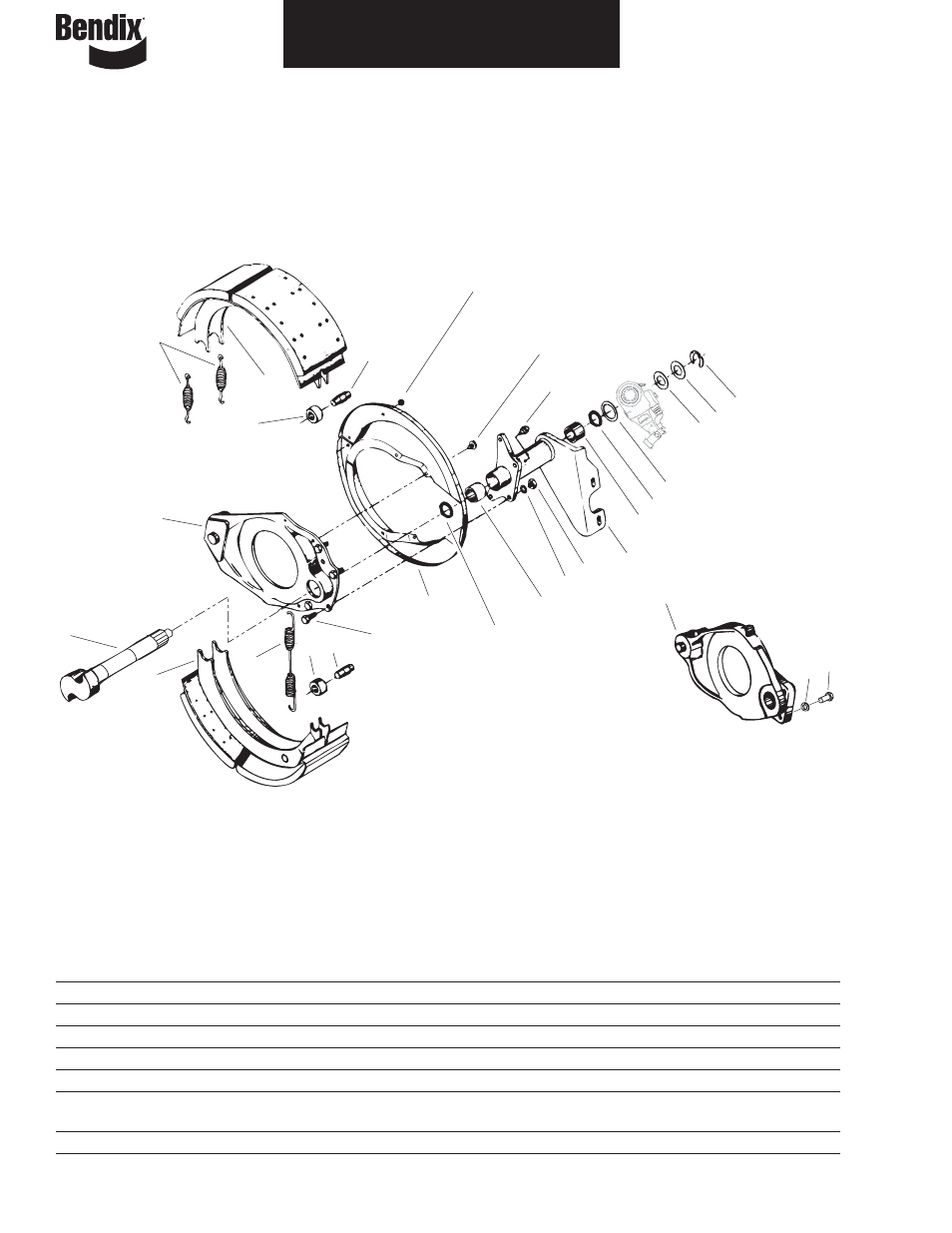

Brake Assembly
5
7 3
8
2
1
1
Cast Spider
12
14
15
13
12
16
19
11
20
10
21
11
Stamped Spider
18
17
4
5
6
4
9
8
22
14
Brake Assembly 16.5" – Standard Brakes (pages 12–13)
For Models: EB-165-5D, EB-165-5L, EB-165-6D, EB-165-6L, EB-165-7D, EB-165-7L, EB-165-8D, EB-165-8F
Brake Kits
Brake Spring Kit–Low Mount 1001237 Incls:Items 2 & 6 Services 1 brake assy
Brake Spring Kit–High Mount 1008403 Incls:Items 2 & 6 Services 1 brake assy
Camshaft Bushing Kit 127808 Incls:Items 11, 12, 19 Services 2 brake assys
Minor Overhaul Kit–Low Mount 1001238 Incls:Items 2, 4-6 Services 1 brake assy
Minor Overhaul Kit–High Mount 1005003 Incls:Items 2, 4-6 Services 1 brake assy
Brake Lining Kit Pages 20-22 Incls:Lining & Rivets Services 2 brake assys
Shoe & Lining Assys Pages 20-22 Incls:Shoes, Lining & Rivets assembled Sold in Multi-Pack of 2
which services 1 brake assy
Major Overhaul Kit Pages 20-22 Incls:Items 2, 4-6, & (2 Shoe & Lining Assys) Services 1 brake assy
