Brackets
Air Chamber Mounting Brackets 18" x 7" – Standard Service Brakes with Cast Spider (pages 88–90)
For Model: EB-180-7R (Standard Brakes)
L
L
Note: Brackets listed by part number.

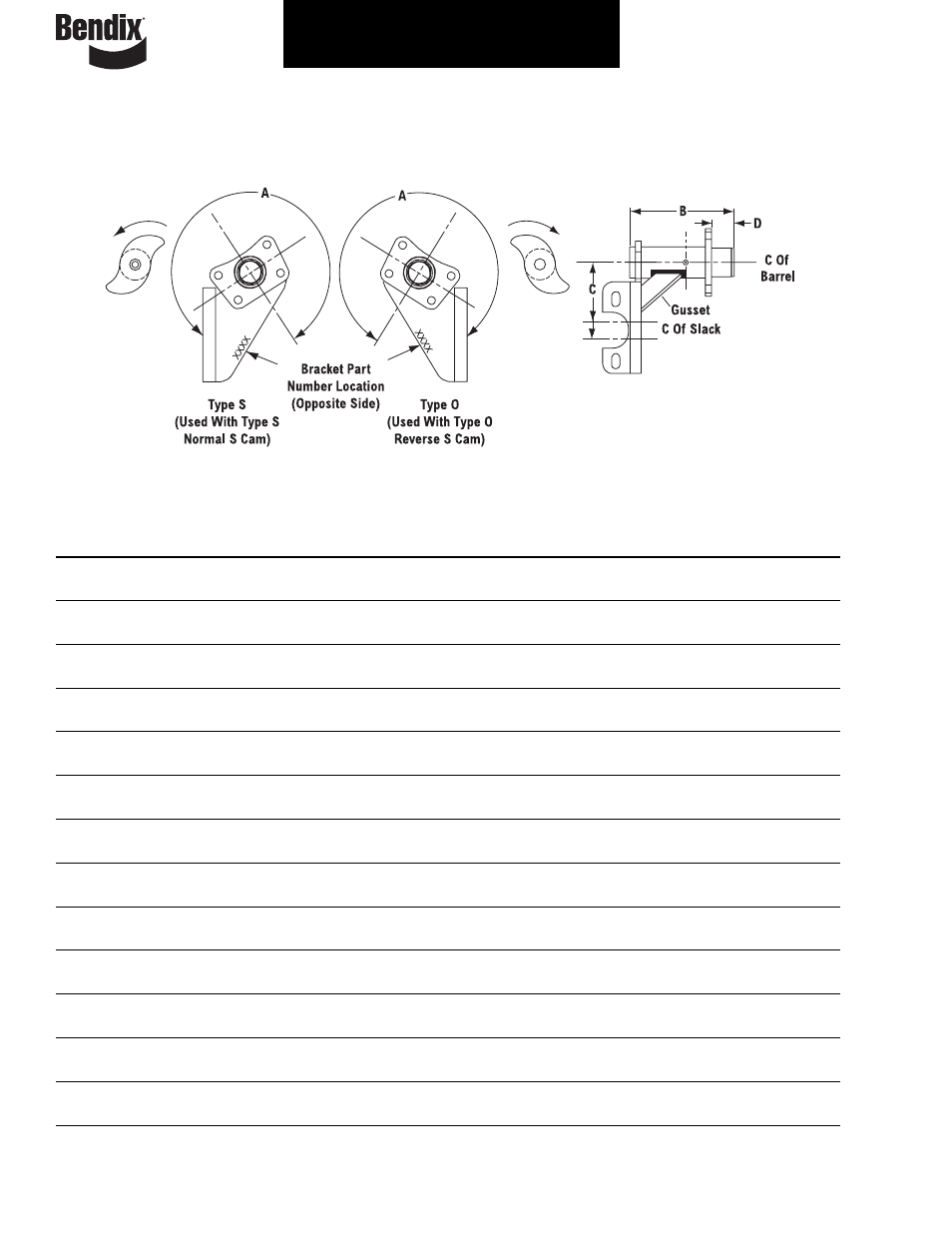

“A” “B” “C” “D”
Gussetted Bracket Angle Barrel Length Slack Length Offset
Part No. Bracket Type in (mm) in (mm) in (mm)
811962 56 CCW 8.97 5.5-6.0 1.75
811963 56 CW (227.810) (140-152) (44.450)
811964 69 CCW 8.97 5.5-6.0 1.75
811965 69 CW (227.810) (140-152) (44.450)
974796 45 CCW 9.31 5.5-6.0 1.75
974797 45 CW (236.550) (140-152) (44.450)
815882 50 CCW 9.31 5.5-6.0 1.75
815883 50 CW (236.550) (140-152) (44.450)
815952 59 CCW 9.31 5.5-6.0 1.75
815953 59 CW (236.550) (140-152) (44.450)
810062 69 CCW 9.31 5.5-6.0 1.75
810063 69 CW (236.550) (140-152) (44.450)
810124 75 CCW 9.31 5.5-6.0 1.75
810125 75 CW (236.550) (140-152) (44.450)
810524 80 CCW 9.31 5.5-6.0 1.75
810525 80 CW (236.550) (140-152) (44.450)
811550 90 CCW 9.31 5.5-6.0 1.75
811551 90 CW (236.550) (140-152) (44.450)
810064 100 CCW 9.31 5.5-6.0 1.75
810065 100 CW (236.550) (140-152) (44.450)
974798 108 CCW 9.31 5.5-6.0 1.75
974799 108 CW (236.550) (140-152) (44.450)
817270 72 CCW 9.67 5.5-6.0 1.75
817271 72 CW (245.670) (140-152) (44.450)
974800 88 CCW 9.67 5.5-6.0 1.75
974801 88 CW (245.670) (140-152) (44.450)
