Bendix Spicer Foundation Brakes LLC • 901 Cleveland Street • Elyria, OH 44035 • 1-866-610-9709 • www.foundationbrakes.com 25
Camshafts
“A”
Camshaft Length Extended
in (mm) Service Part No. Rotation Remarks
8.315 (211.20) 974682 CCW (S)
8.315 (211.20) 974683 CW (O)
8.750 (222.25) 974874 CCW (S)
8.750 (222.25) 974875 CW (O)
9.125 (231.78) 975654 CCW (S)
9.125 (231.78) 975655 CW (O)
9.438 (239.73) 974910 CCW (S)
9.438 (239.73) 974911 CW (O)
9.570 (243.08) 975558 CCW (S)
9.570 (243.08) 975559 CW (O)
9.688 (246.08) 975042 CCW (S)
9.688 (246.08) 975043 CW (O)
10.090 (256.29) 975576 CCW (S)
10.090 (256.29) 975577 CW (O)
10.190 (258.83) 975534 CCW (S)
10.190 (258.83) 975535 CW (O)
10.320 (262.13) 975578 CCW (S)
10.320 (262.13) 975579 CW (O)
10.440 (265.18) 975580 CCW (S)
10.440 (265.18) 975581 CW (O)
10.570 (268.48) 975582 CCW (S)
10.570 (268.48) 975583 CW (O)
10.688 (271.48) 975610 CCW (S)
10.688 (271.48) 975611 CW (O)
10.875 (276.23) 975228 CCW (S)
10.875 (276.23) 975229 CW (O)
11.570 (293.88) 975584 CCW (S)
11.570 (293.88) 975585 CW (O)
Camshafts 15" – Extended Ser vice (pages 25–26)
For Model: ES-150-4D
CCW = Counter clockwise Rotation
CW = Clockwise Rotation
Note: Camshafts listed by length.

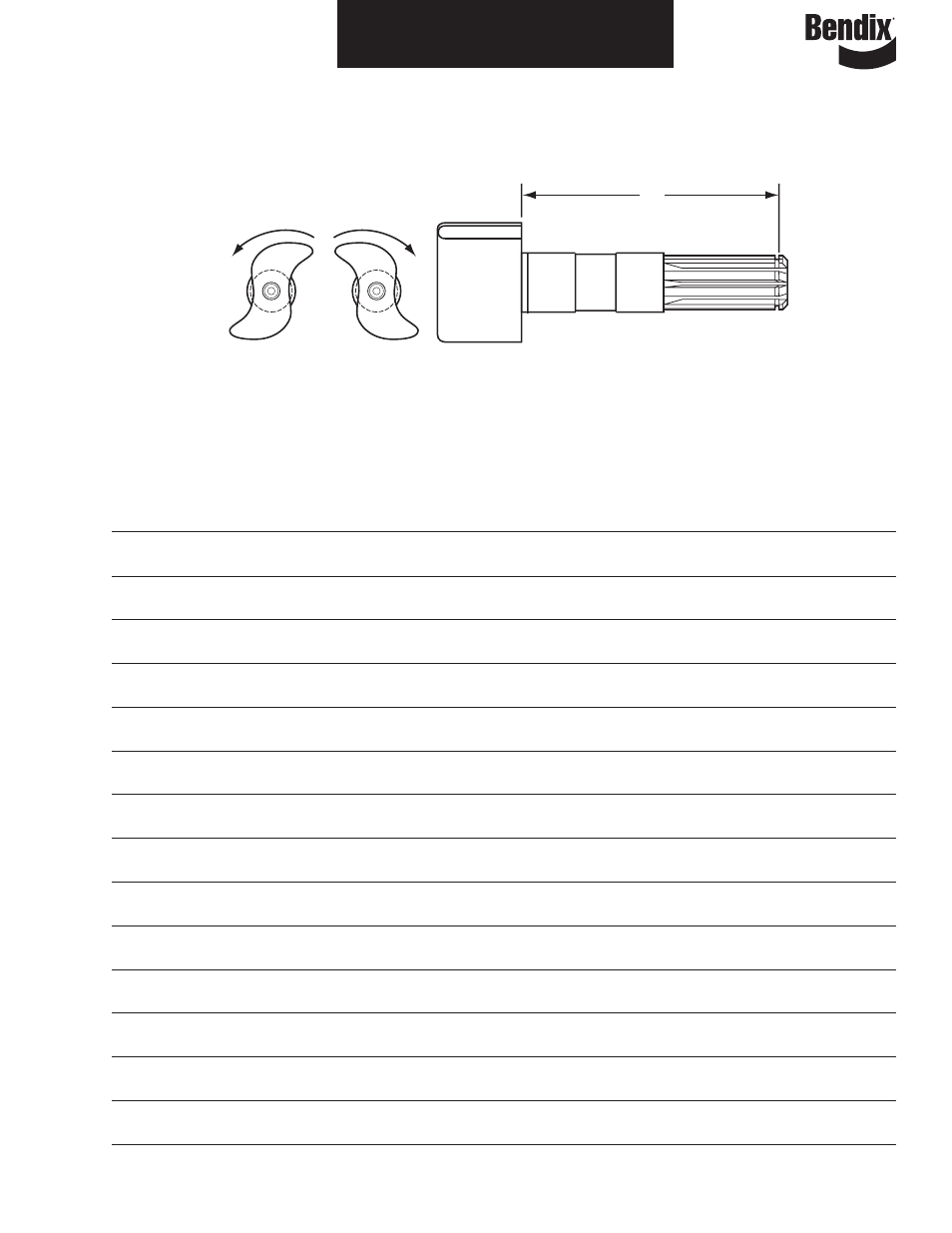

A
(Outside of snap ring groove)
Extended Service
1.250" Dia. x 10 Splines
Type S (CCW)
(Normal S)
Type O (CW)
(Reverse S)
