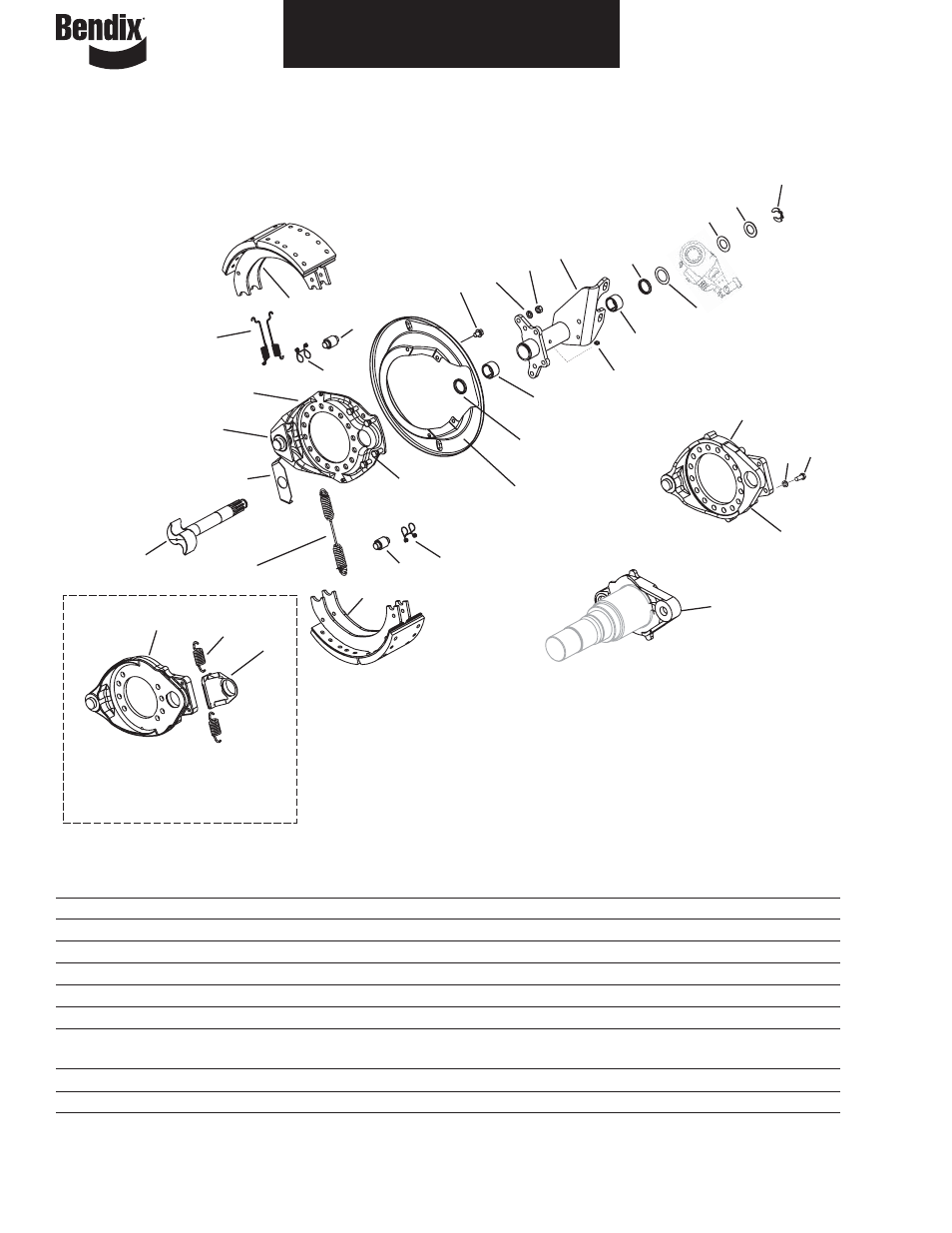

Brake Assembly 16.5" – Extended Ser vice Brakes (pages 14–15)
For Models: ES-165-5D, ES-165-5L, ES-165-6D, ES-165-6L,
ES-165-7D, ES-165-7L, ES-165-8D, ES-165-8F
Brake Kits
Brake Spring Kit (ESII Only) 316896 Incls: Items 2 & 7 Ser vices 1 brake assy
Brake Spring Kit (for use with 817009 only ESII) 316895 Incls: Items 2 & 7 Ser vices 1 brake assy
Camshaft Bushing Kit 127808 Incls: Items 12-13, 23 Ser vices 2 brake assys
Minor Overhaul Kit (for use with 817009 only ESII) 314146 Incls: Items 2, 5-7 Ser vices 1 brake assy
Minor Overhaul ES 808330 Incls: Items 2, 5-7 Ser vices 1 brake
Minor Overhaul Kit (ESII Only) 314147 Incls: Items 2, 5-7 Ser vices 1 brake assy
Brake Lining Kit See Pages 20-22 Incls: Linings & Rivets Ser vices 2 brake assys
Shoe & Lining Assys See Pages 20-22 Incls: Shoe, Lining & Rivets assembled Sold in Multi-Pack of 2
which services 1 brake assy
Major Overhaul Kit See Pages 20-22 Incls: Items 2, 5-7 & (2 Shoe & Lining Assys) Ser vices 1 brake assy
Horse Collar Kit 814011 Incls: Items 7 & 25 Ser vices 1 brake assy
Note: Minor overhaul kit 808330 use with ES shoes with the retaining springs attached to the shoe table. ESII shoes have the retainin g spring
attached to the shoe webs.
3
1
5
7
19
6
5
12
16
4
12
13
20
23
9
6
2
1
9
9
17 18
21
22
13
14
15
11
10
8
7
25
Stamped
Cast
Note: Horse Collar 817009 and Spring
817017 to be used on steer axles greater
than 14.6K with 16.5 x 5 or 16.5 x 6 brakes.
24
Brake Assembly
