Dustshields

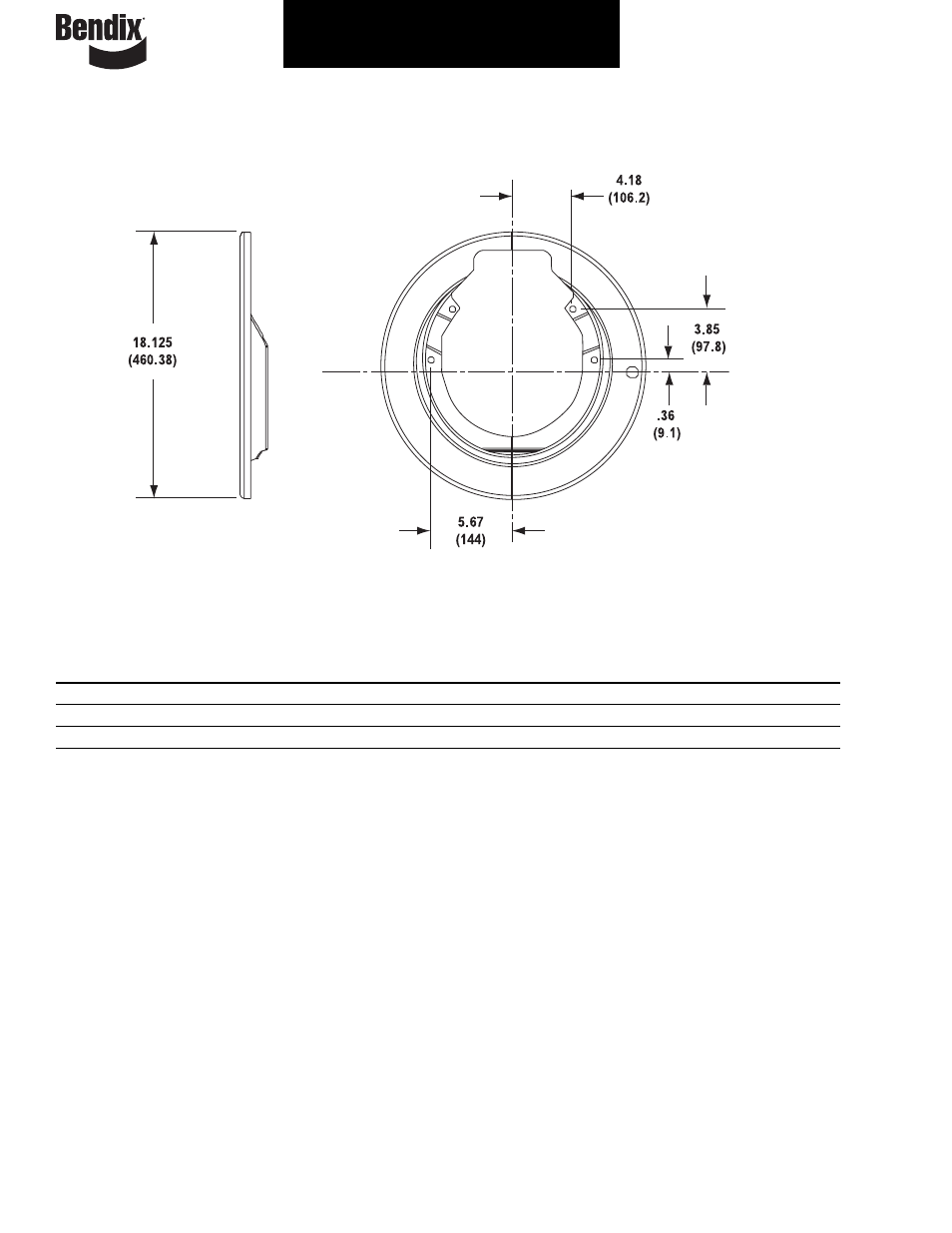

Dustshields 16.5" – with Stamped Steel Spider
For Models: EB-165 & ES-165
Part
No.
Qty.
Description
973953
NSS
1
Dustshield
804703
4
Screws-Dustshield
089899
(2)
Dustshield
plug
805057 Dustshield kit replaced by 805143
805169 Dustshield kit replaced by 805143
NSS - Not Sold Separately.
Note: For 16.5” x 5” Brakes use kit 317671 with 1.75” offset.
For 16.5” x 6” Brakes use kit 317670 with 1.75” offset.
Note: For 16.5” x 8.6” Brakes use 973954 for lightweight spider number 325156.
For 16.5” x 8.6” Brakes use 973958 for cast spider number 314184 with 1.75” offset.
Note: Kit 805143 Includes: 973953, 804703 & 089899
These dust shields can be conviently serviced with the following kits:
• 805143 Dustshield kit (1 piece breakaway, without inspection plugs).
