Monitor Diagnostics 117

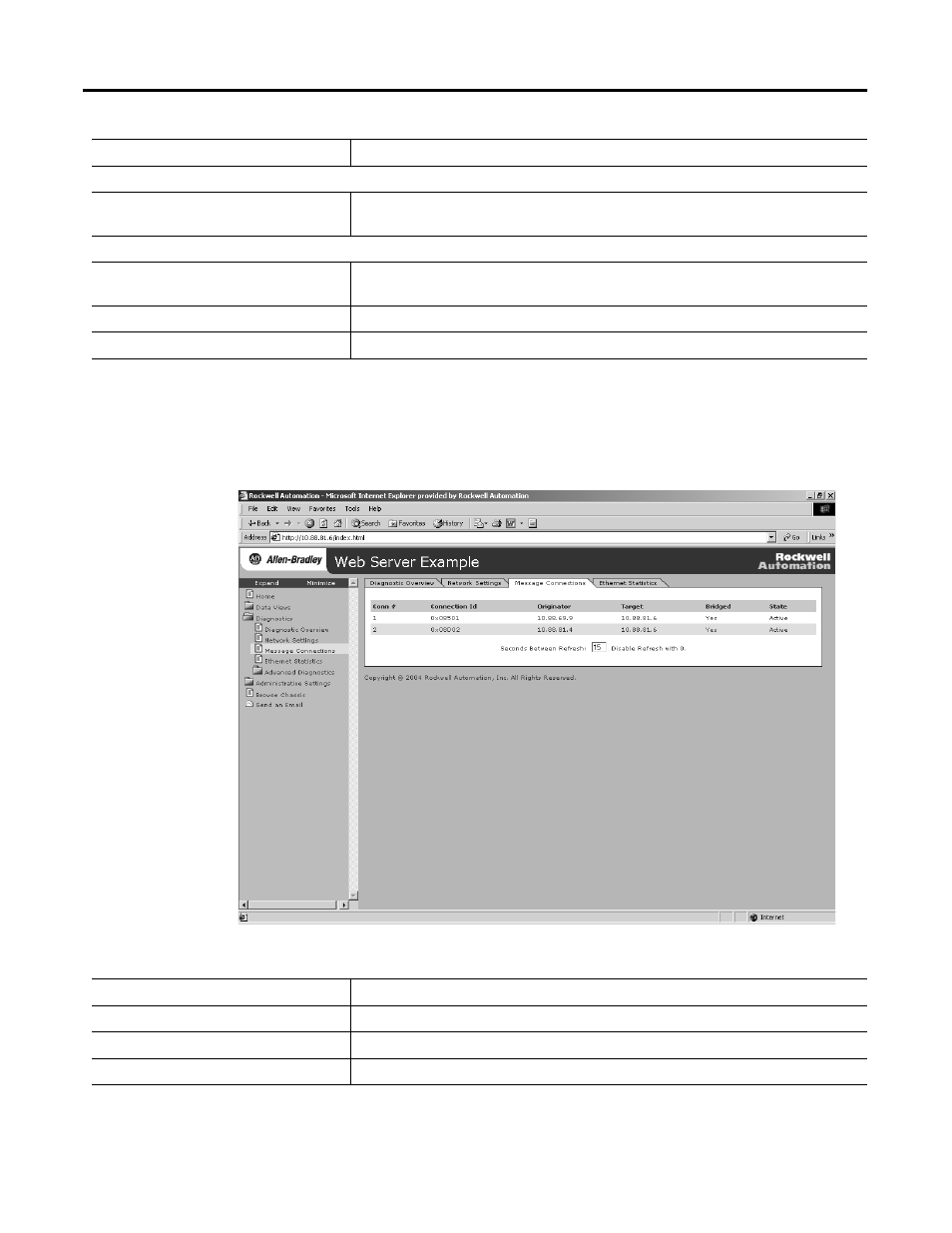

Message Connections The Diagnostics
> Message Connections page presents a summary of
messages bridged through or initiated by the web server module.
Ethernet Interface Configuration
Obtain Network Configuration Whether the module is configured to obtain its network parameters (such as IP address)
via BOOTP, DHCP, or from static configuration
Ethernet Link
Autonegotiate Status Whether the port speed and duplex mode were determined via autonegotiation or
whether they were manually configured
Port Speed Whether the Ethernet port is operating at 10 Mbps or 100 Mbps
Duplex Mode Whether the Ethernet port is operating at half duplex or full duplex
This field Specifies
This Field Specifies
Conn # The relative index of this connection (on the Message Connections page)
Connection ID The unique identifier for each connection
Originator The IP address of the device that originated the connection on Ethernet network
