114 Monitor Diagnostics

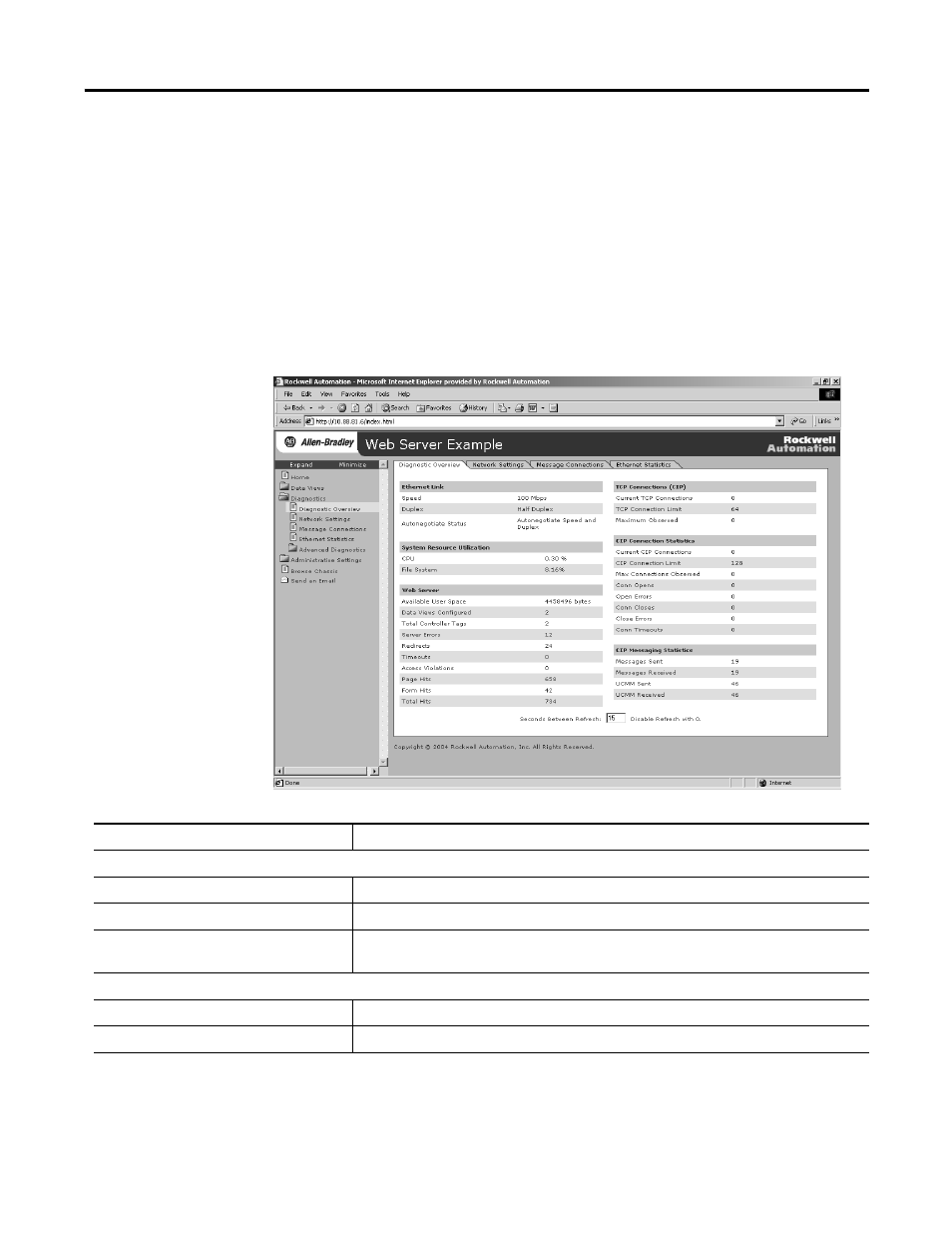

Diagnostics Overview The Diagnostics
> Diagnostic Overview page presents a summary of
the current configuration and overall status of the web server module.
This summary includes:
• Ethernet configuration
• Web server file use
• Web server statistics
• TCP connection use
• CIP connection use
• Message statistics
This Field Specifies
Ethernet Link
Speed Whether the Ethernet port is operating at 10 Mbps or 100 Mbps
Duplex Whether the Ethernet port is operating at half duplex or full duplex
Autonegotiate Status Whether the port speed and duplex mode were determined via autonegotiation or
whether they were manually configured
System Resource Utilization
CPU Current percent CPU utilization for the web server module
File System% Utilization Current percent utilization of the space available for user files
