20 Installing the XM-320 Position Module

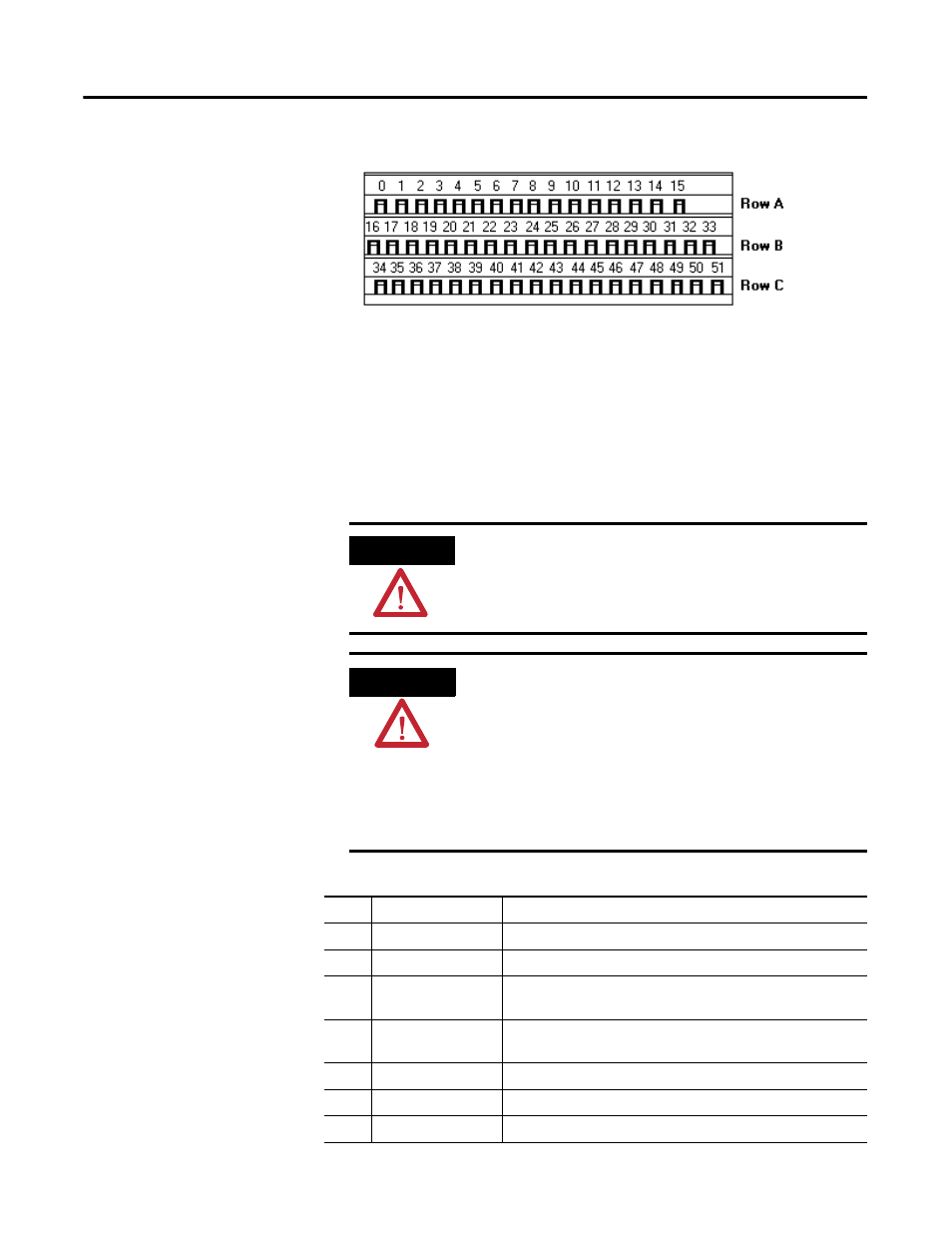

Figure 2.7 XM-941 Terminal Base Unit
Terminal Block Assignments
The terminal block assignments and descriptions for the XM-320 module are
shown below.
ATTENTION
The terminal block assignments are different for different
XM modules. The following table applies only to the
XM-320. Refer to the installation instructions for the
specific XM module for its terminal assignments.
WARNING
EXPLOSION HAZARD
Do not disconnect equipment unless power has been
removed or the area is known to be nonhazardous.
Do not disconnect connections to this equipment unless
power has been removed or the area is known to be
nonhazardous. Secure any external connections that mate
to this equipment by using screws, sliding latches, threaded
connectors, or other means provided with this product.
XM-941, Cat. No. 1440-TB-B
Terminal Block Assignments
No. Name Description
0 Xducer 1 (+) Transducer 1 connection
1 Xducer 2 (+) Transducer 2 connection
2 Protected Output 1
(+) Short Circuit Protected Output 1, positive side
3 Protected Output 2
(+) Short Circuit Protected Output 2, positive side
4 No Connection
5 No Connection
6 Xducer V (+) Transducer power supply output, positive side
