Page 24

24
Rockwell Automation Publication GMC-RM004C-EN-P - September 2013
Kinetix 300 and Kinetix 350 Drive Systems
Kinetix 300/350 (400V-class) Drives with MP-Series Stainless Steel Motors
This section provides system combination information for the Kinetix 300/350 (400V-class) drives when matched with
MP-Series stainless-steel motors. Included are motor power/brake and feedback cable catalog numbers, system
performance specifications, and the optimum torque/speed curves.
Bulletin MPS Motor Cable Combinations
For cable configuration illustrations and feature descriptions, by catalog number, refer to 2090-Series Motor/Actuator Cables Overview beginning on
.
Motor-end connector kits, and panel-mounted breakout components (drive end), are available for motor power/brake and feedback cables. Refer to Optional Drive Accessories on
.
Cable length
xx is in meters. Refer to the Kinetix Motion Accessories Technical Data, publica
, for standard cable lengths.
Bulletin MPS Motor Performance Specifications with Kinetix 300/350 (400V-class) Drives

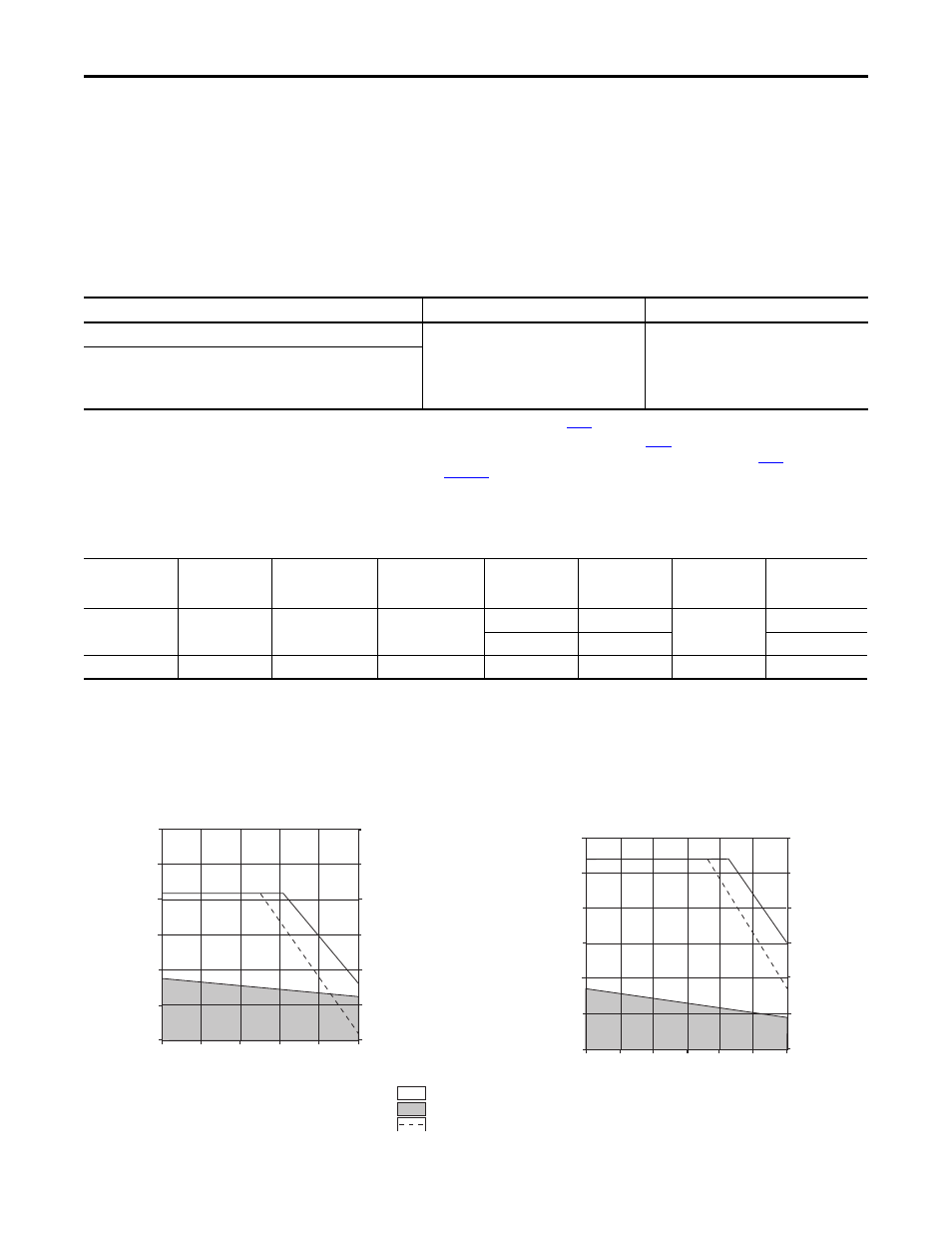

Kinetix 300/350 (400V-class) Drives/MP-Series Stainless Steel Motor Curves
Motor Cat. No. (400V-class)
Motor Power Cable
Motor Feedback Cable
(1)
(1) Use low-profile connector kit (catalog number 2090-K2CK-D15M) on the drive end. Refer to Required Drive Accessories on
.
MPS-B330P
2090-CP
xM7DF-16AAxx (standard, non-flex)
2090-CP
xM7DF-16AFxx (continuous-flex)
2090-CFBM7DF-CEAA
xx or
2090-CFBM7DD-CEAA
xx (standard, non-flex)
2090-CFBM7DF-CEAF
xx or
2090-CFBM7DD-CEAF
xx (continuous-flex)
Absolute High-resolution Feedback
MPS-B4540F
Rotary Motor
Speed, max
rpm
System Continuous
Stall Current
A 0-pk
System Continuous
Stall Torque
N•m (lb•in)
System Peak
Stall Current
A 0-pk
System Peak
Stall Torque
N•m (lb•in)
Motor Rated
Output
kW
Kinetix 300/350
400V-class
Three-phase Drives
MPS-B330P
5000
4.90
3.6 (32)
16.9
10.1 (89.4)
1.3
2097-V34PR5-
xx
19.0
11.1 (98.2)
2097-V34PR6-
xx
MPS-B4540F
3000
7.1
8.1 (72)
25.4
26.3 (233)
1.4
2097-V34PR6-
xx
Torque
(N•m)
Torque
(lb•in)
2097-V34PR6 and MPS-B330P
Speed (rpm)
0
2000
4000
3000
1000
5000
12.0
10.0
8.0
6.0
4.0
2.0
0
106
88.5
70.8
53.1
35.4
17.7
0
Torque
(N•m)
Torque
(lb•in)
30
25
20
15
10
5
0
265
221
177
133
88.5
44.2
0
Speed (rpm)
0
2000
3000
1000
500
1500
2500
2097-V34PR6 and MPS-B4540F
= Intermittent operating region
= Continuous operating region
= Drive operation with 400V AC rms input voltage
