Rockwell Automation Publication IASIMP-QS025B-EN-P - December 2012
77
Create a Logix Designer Project Chapter 5

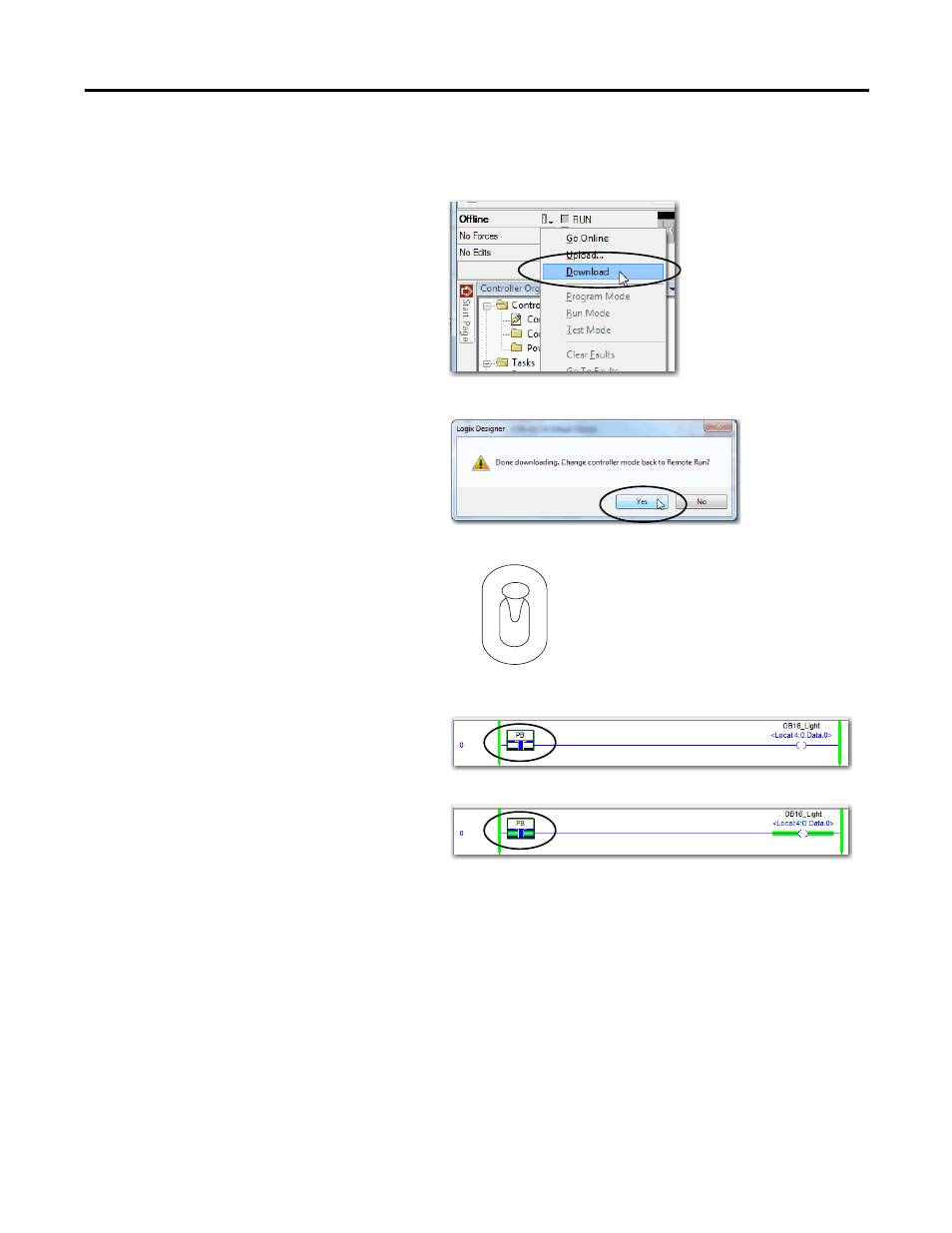

Download the Project to the Controller and Test the Logic
1. From the mode pull-down menu,
choose Download.
2. When the dialog box appears with
information about the download,
click Download.
3. Click Yes to change the controller
mode to Remote Run.
4. Move the mode switch on your
controller to RUN.
5. Select the PB Examine On
instruction.
6. Press Ctrl+T to toggle the state
from 0 to 1, or Off to On.
7. Verify that the status indicator on
the digital output module turns on after you toggle the state to 1 or On.
8. Press Ctrl+T to toggle the state back to 0 or Off.
9. Save the project and go offline.
RUN
REM
PROG
