Prepare the CompactLogix 5370 L2 Controller Hardware
Chapter 1

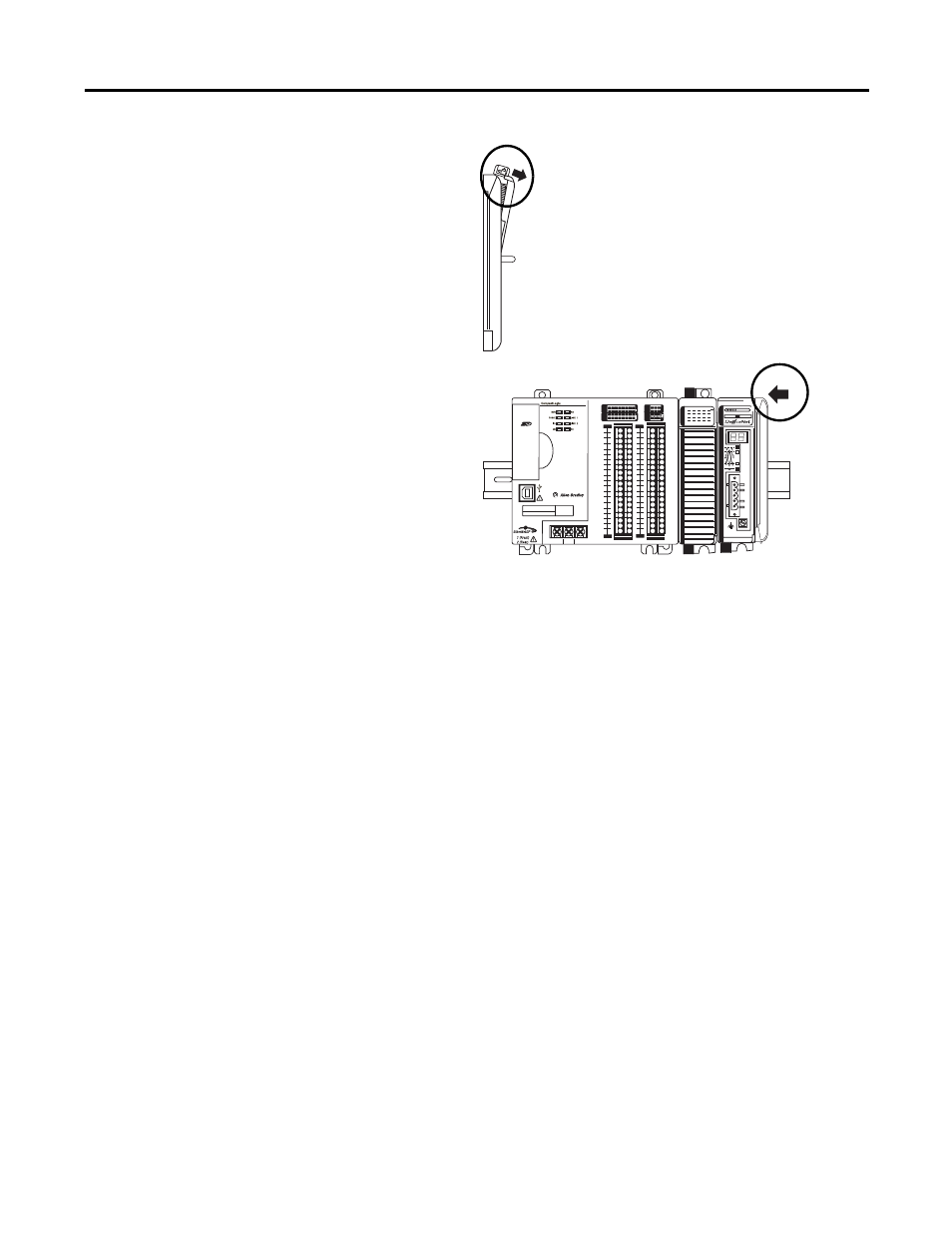

8. Install the 1769-ECR end cap
terminator.
a. Move the end cap terminator’s bus
lever to the unlocked position, that
is, the right.
b. Move the end cap terminator back
along the tongue-and-groove slots
with the rightmost module in the
system until the bus connectors line
up with each other.
c. Move the end cap terminator’s bus
lever fully to the left until it locks.
Connect Power to the Controller
The external 1606-XLDNET4 standard switched-mode power supply converts 115/230V AC
power to 24V DC to power the CompactLogix 5370 L2 controller.
1. Verify that the power setting on the external power supply is configured to match the
voltage source.
2. Mount the external power supply on the DIN rail.
3. Verify that the wire you use to connect input power to the external power supply is
not powered.
4. Remove the clear plastic finger safe cover on the front of the power terminals.
