76

Rockwell Automation Publication IASIMP-QS025B-EN-P - December 2012

Chapter 5 Create a Logix Designer Project

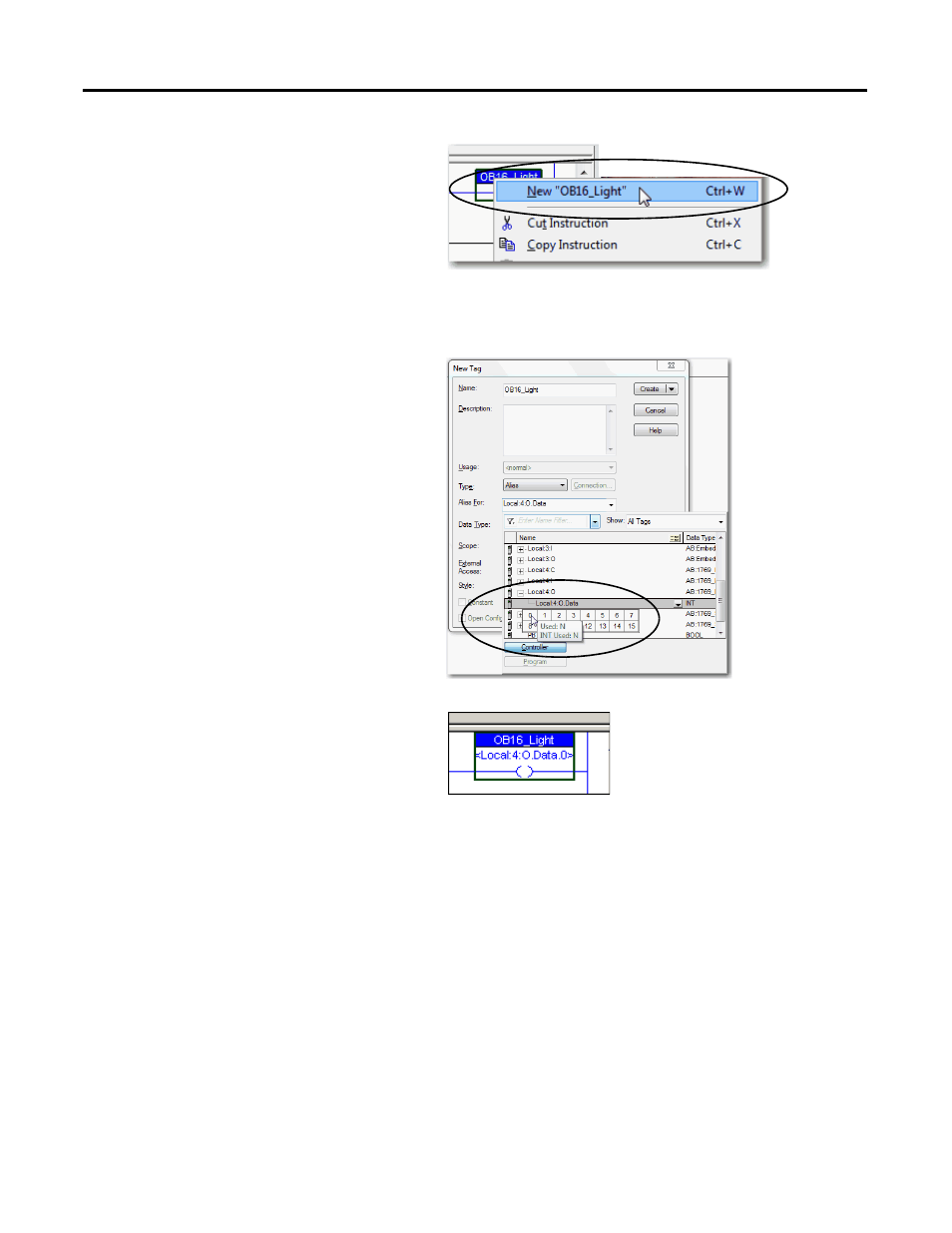

12. Right-click the OB16_Light tag

name and choose New
OB16_Light.

OB16_Light is an alias tag for the
I/O point tag name. With an alias
tag, you assign a simple name to a physical I/O point address.

13. From the Type pull-down menu,

choose Alias.

14. In the Alias For pull-down menu,

browse to the local 1769-OB16
output module choose any bit.

This example uses
Local:4:O.Data.0.

15. Click Create and Close.

16. The graphic shows the Output

Energize after assigning the Alias
tag to a point on the output
module.

17. Save your changes.
