Set the 1769-sdn scanner module’s node address, Set the 1769-sdn, Scanner module’s node – Rockwell Automation 1769-L24ER-QB1B_L24ER-QBFC1B_L27ERM-QBFC1B CompactLogix 5370 L2 Controllers Quick Start User Manual
Page 57: Address
Rockwell Automation Publication IASIMP-QS025B-EN-P - December 2012
57
Configure the DeviceNet Network Chapter 4
Set the 1769-SDN Scanner Module’s Node Address

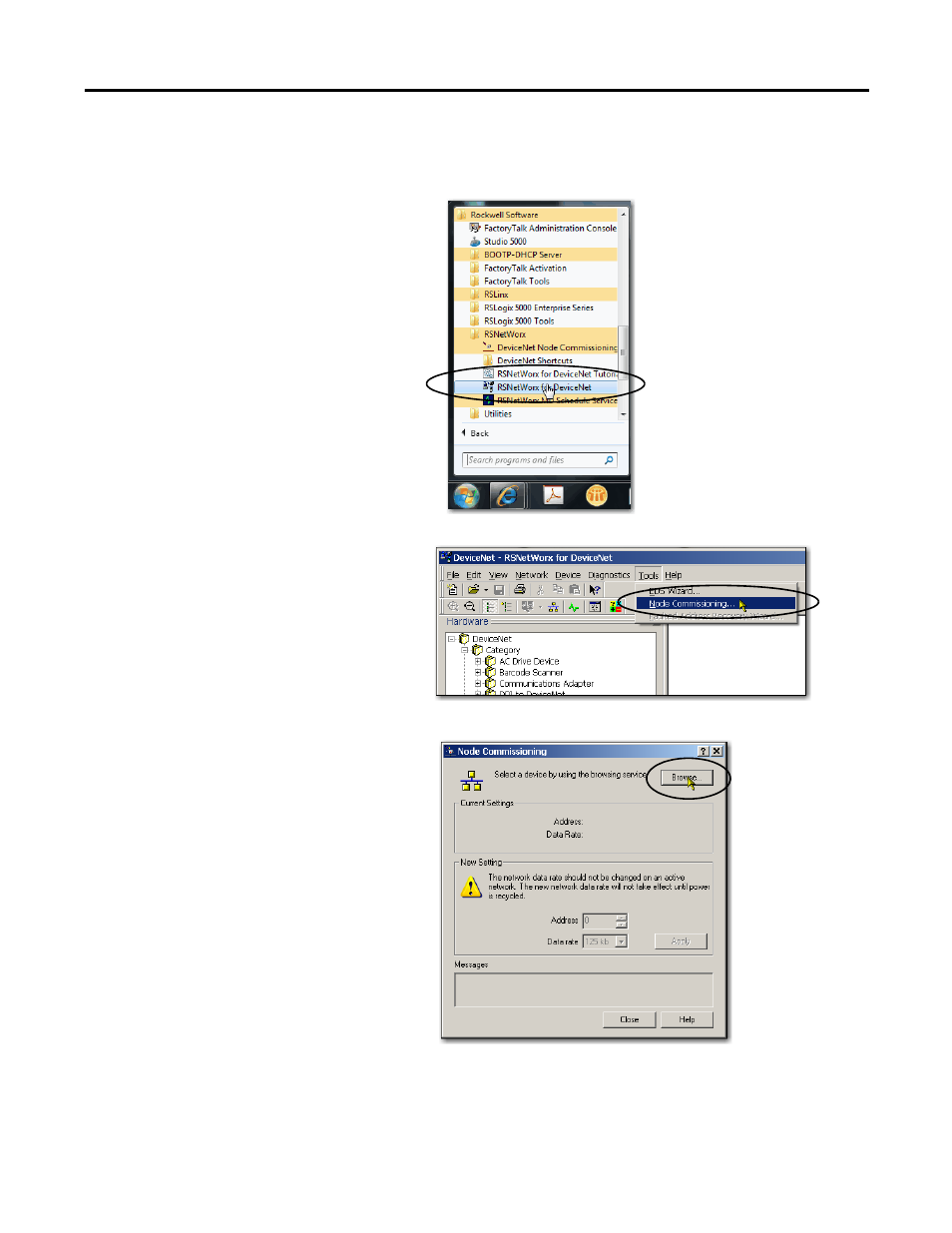

1. Start the software.
2. From the Tools menu, choose
Node Commissioning.
3. Click Browse.
When the Device Selection dialog
box appears, you can browse to the
1769-SDN scanner module over
an EtherNet/IP network or USB
connection. This example uses an
EtherNet/IP network connection.
