Configure an ethernet/ip, Driver in rslinx classic, Software – Rockwell Automation 1769-L24ER-QB1B_L24ER-QBFC1B_L27ERM-QBFC1B CompactLogix 5370 L2 Controllers Quick Start User Manual
Page 37
Rockwell Automation Publication IASIMP-QS025B-EN-P - December 2012
37
Prepare the Computer and Load Controller Firmware Chapter 2
Configure an EtherNet/IP Driver in RSLinx Classic Software

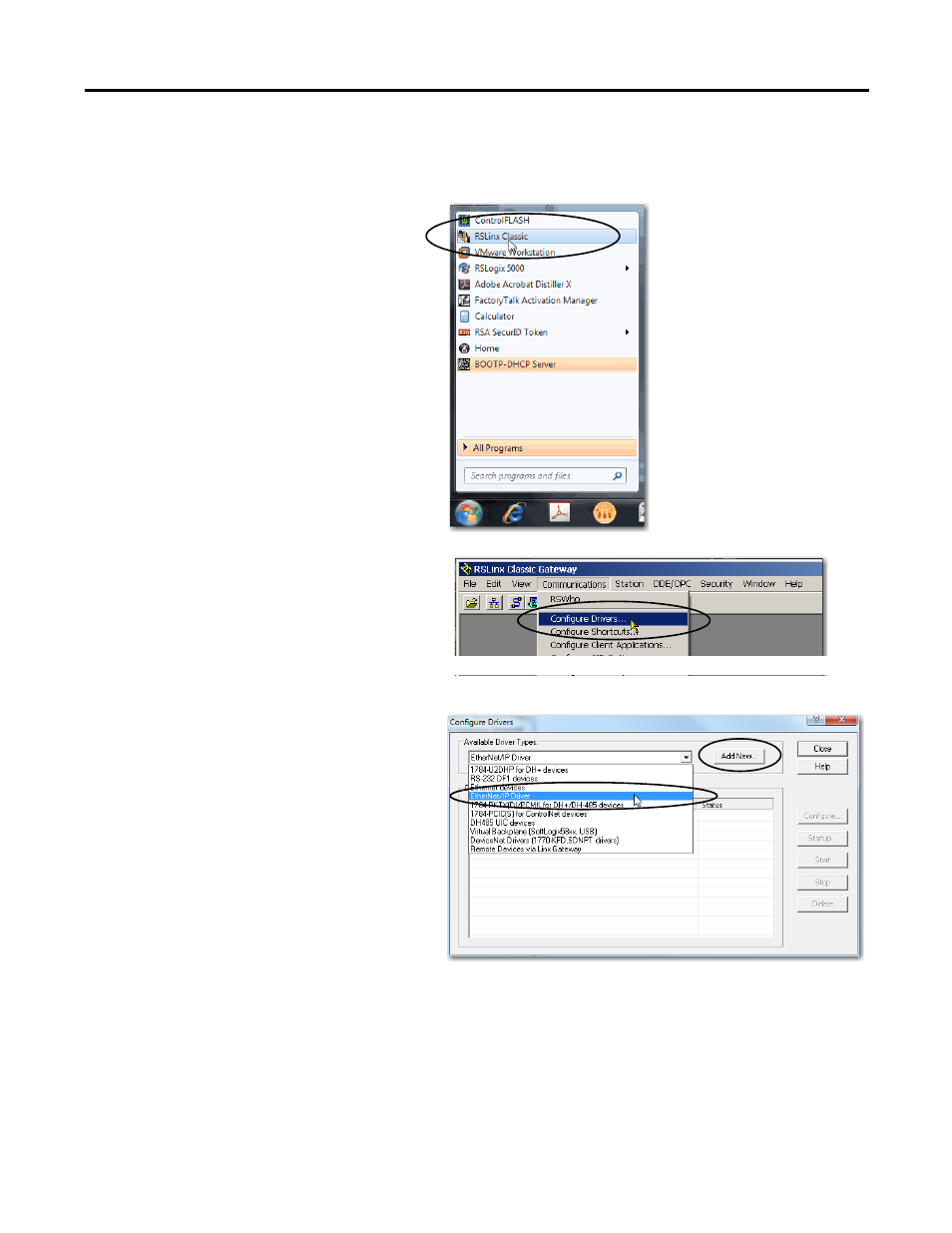

1. Start the software.
2. From the Communications menu,
choose Configure Drivers.
The Configure Drivers dialog box
appears.
3. From the Available Driver Types
pull-down menu, choose
EtherNet/IP Driver or Ethernet
devices and click Add New.
We recommend that you use
EtherNet/IP Driver.
The Add New RSLinx Classic
Driver dialog box appears.
