Rockwell Automation 1769-L24ER-QB1B_L24ER-QBFC1B_L27ERM-QBFC1B CompactLogix 5370 L2 Controllers Quick Start User Manual
Page 72
72
Rockwell Automation Publication IASIMP-QS025B-EN-P - December 2012
Chapter 5 Create a Logix Designer Project

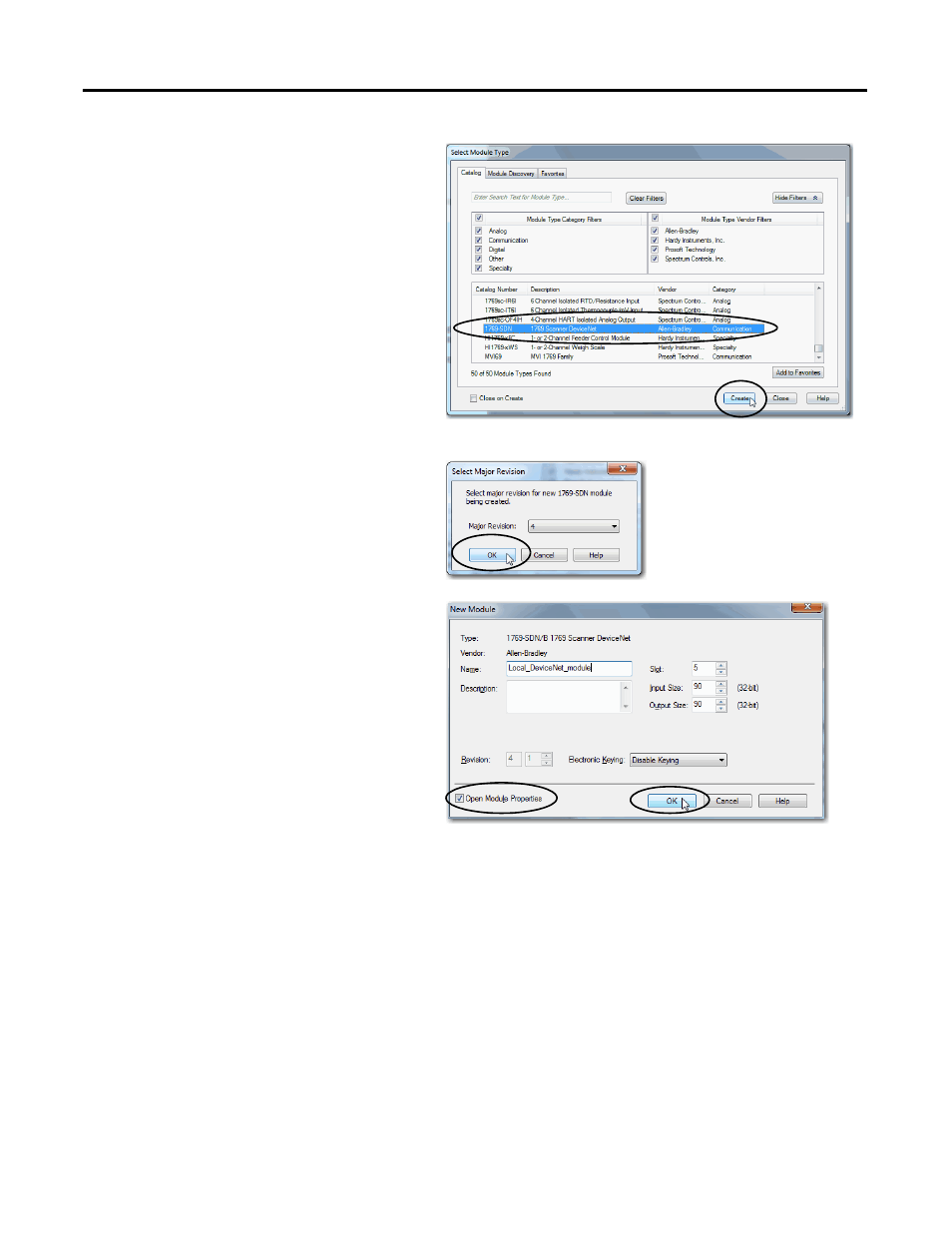

2. Select the 1769-SDN scanner
module and click Create.
3. Select the 1769-SDN scanner
module’s major revision and
click OK.
4. When the New Module dialog box
appears, configure the 1769-SDN
scanner module.
5. Check the Open Module
Properties checkbox and click OK.
Additional tabs with configurable
parameters appear.
