Rockwell Automation Publication IASIMP-QS025B-EN-P - December 2012
75
Create a Logix Designer Project Chapter 5

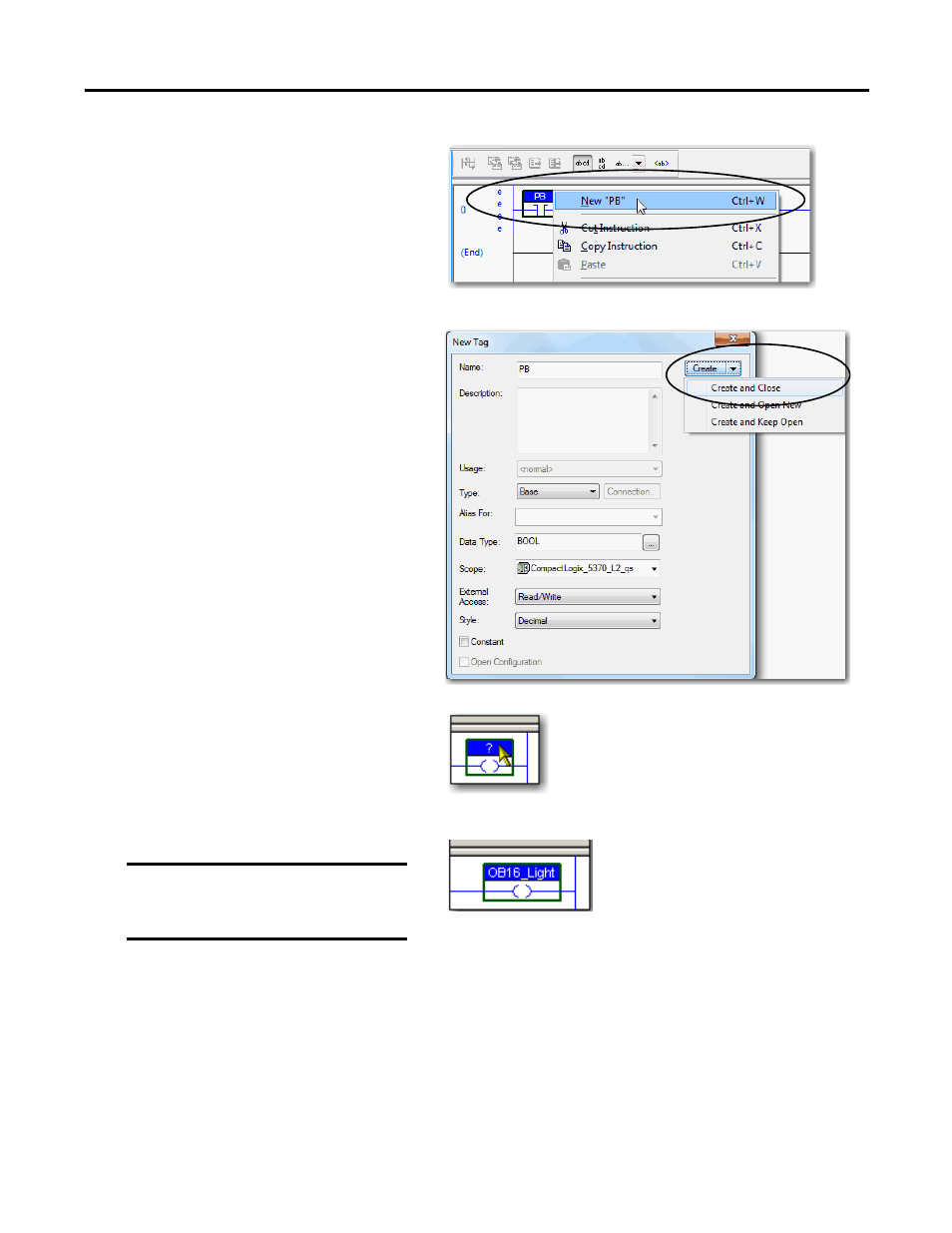

7. Right-click PB and choose
New ‘PB’.
8. Click Create and Close.
9. Double-click the ? in the Output
Energize element.
10. Name the Output Energize
element OB16_Light.
11. Press Enter.
IMPORTANT
Do not use spaces in the
tag name. Use
underscores (_) instead.
