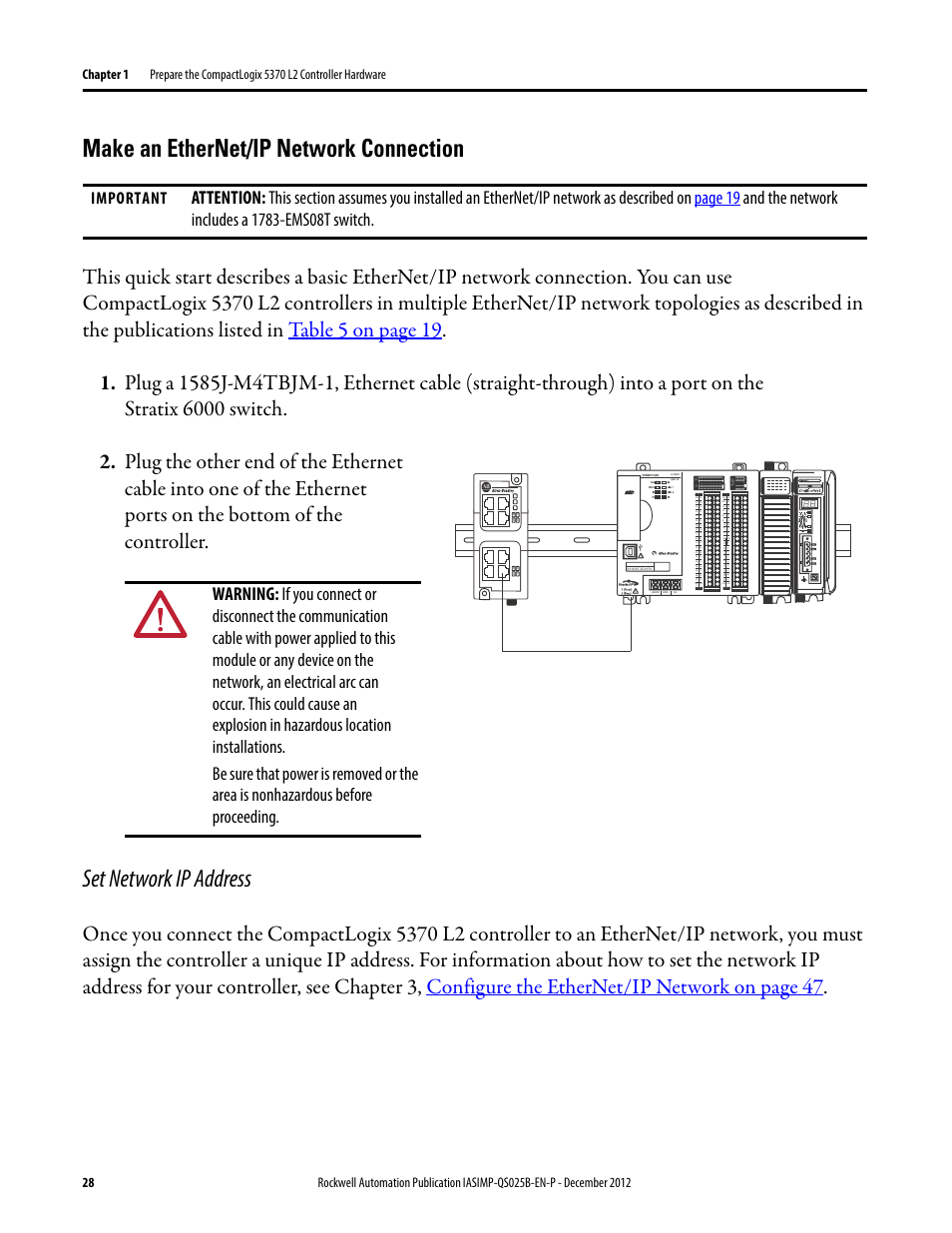

Make an ethernet/ip network connection, Set network ip address, Important – Rockwell Automation 1769-L24ER-QB1B_L24ER-QBFC1B_L27ERM-QBFC1B CompactLogix 5370 L2 Controllers Quick Start User Manual
Page 28: Dc in hsc dc out analog
