Process Configuration and Operation Software for Windows

t

23

Publication 6723Ć10.1 Ć August 1996

The third button on the PCO Startup Screen allows you to start your
PLC programming tool. When your PCO software is shipped to you,
this button is configured to launch the IPDS 6200 software from the
C:\IPDS directory. By clicking on this button, you can use 6200
Series software to create the JSR instructions and data table files that
will complete your PLC code.

With 6200 software, you can create these steps in one session.

1. From the PCO Startup screen, click on the IPDS 6200

Programming Tool button.

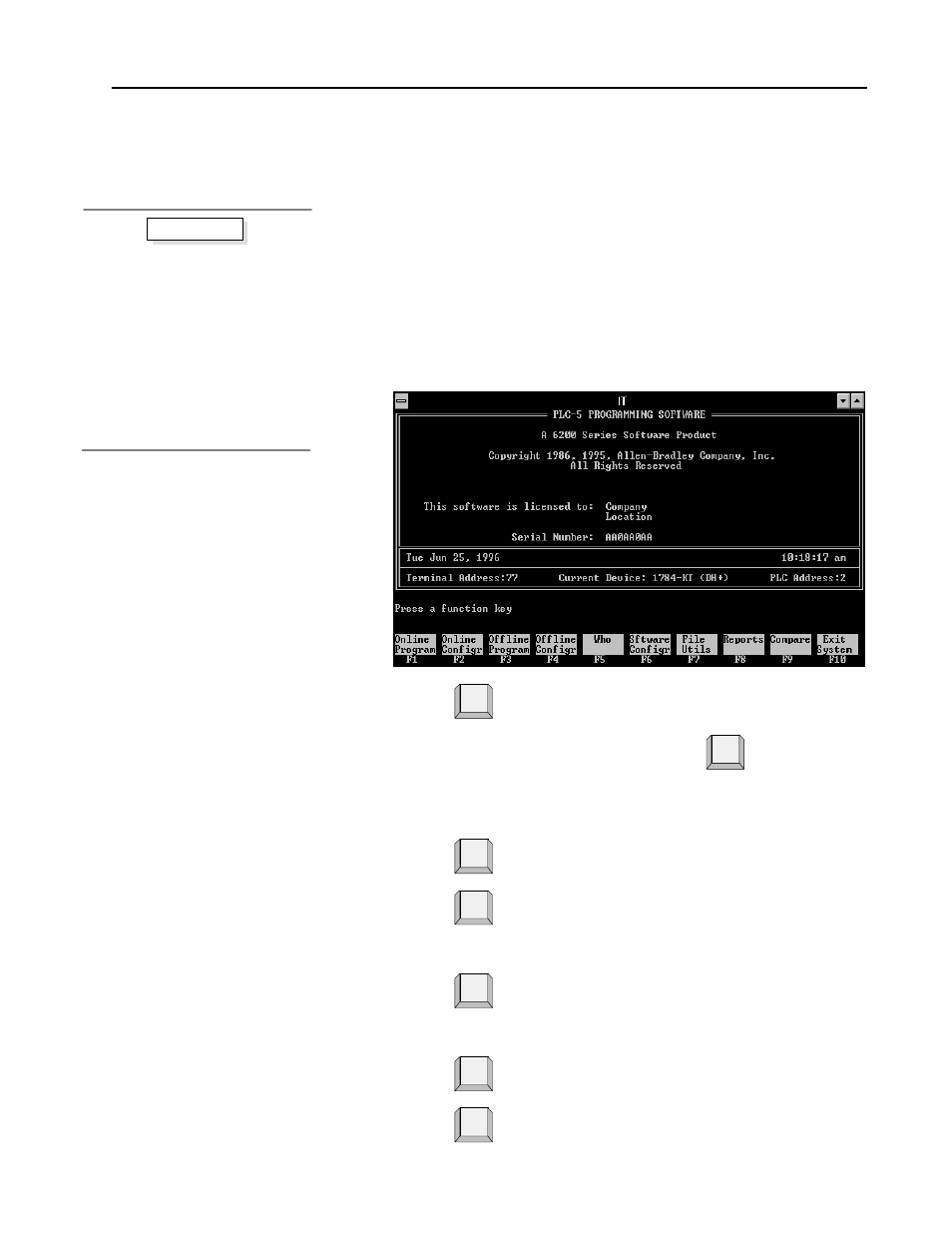

The 6200 Series Software main screen appears.

2. Press

F4

- Offline Configr.

3. Highlight the USER application and press

F1

- Offline

Program.

The USER PLC application appears..

4. Press

F1

- Proc. Functions.

5. Press

F6

- Create Lad Fl.

6. Enter a file number. For purposes of this example, type 55.

7. Press

F10

- Change Fl. Name.

8. Type a new name for the ladder file.

9. Press

F8

- Monitor File.

10.Press

F10

- Edit.

1. From the PCO Startup screen, click

on the IPDS 6200 Programming Tool

button.

2. Add JSR instructions for each of the

functions you merged with this

application

3. Enter data table file information for

each of the functions you merged with

the application.

4. Save the program.

5. Download the application to the PLC

processor.

Basic steps

Creating JSR Instructions

and Data Table Files
