Rockwell Automation 6723-PCO DATA PROCESS CONFIG OPERATIO User Manual
Page 10
Process Configuration and Operation Software for Windows
t
8
Publication 6723Ć10.1 Ć August 1996

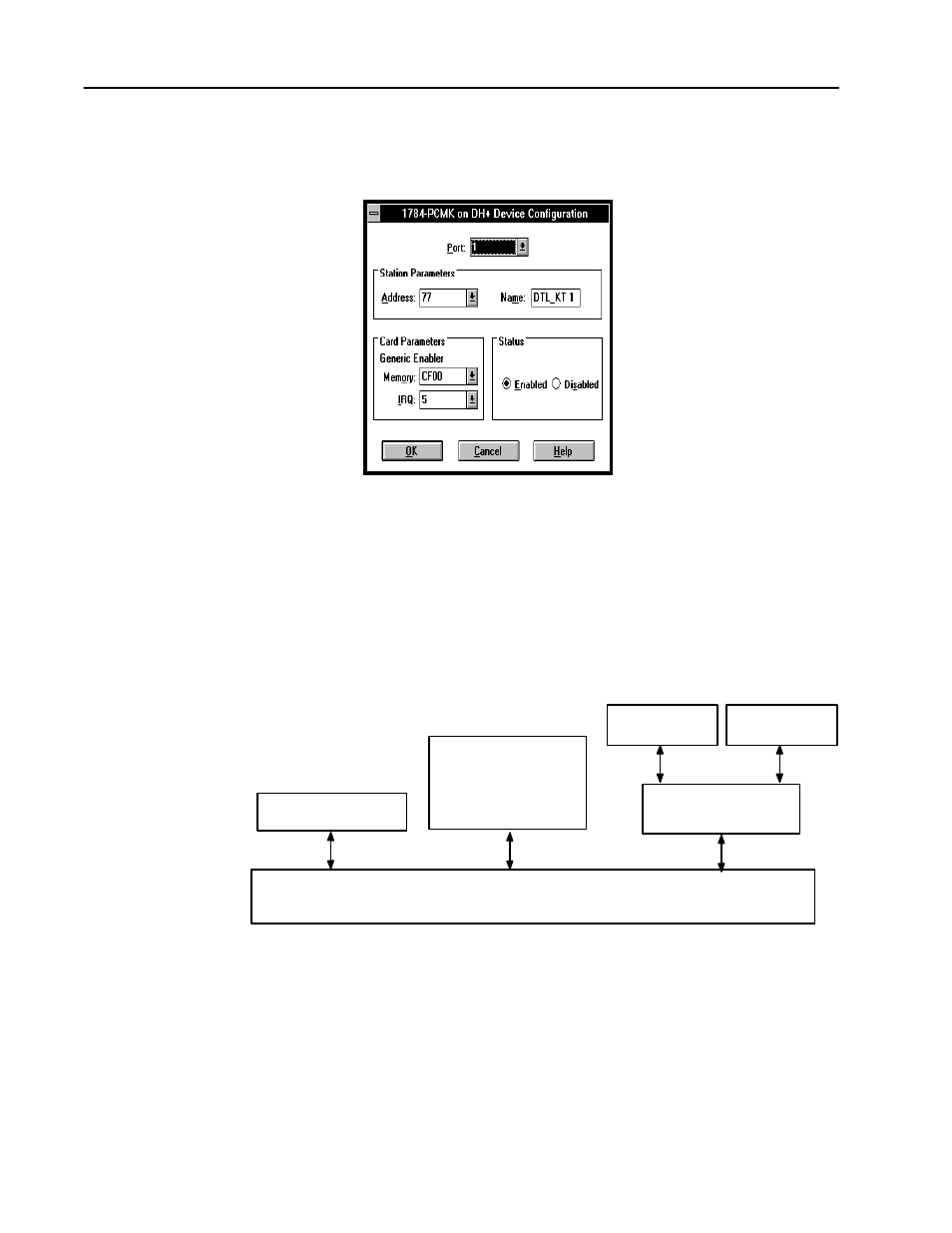

If you choose Generic, when you click on the Add Device button, the
1784-PCMK on DH+ dialog box appears as follows. You must enter
the memory address and the IRQ value on this screen.
INTERCHANGE Compatibility
The following diagram illustrates the software packages that relate to
running PCO software on a single computer through one
communication interface (either DH+ or DF1), along with 6200, AI,
and RSView software.
RSView
PCO ExcelĆbased
Application Configuration
Software
WINLinx V4.50 or later
INTERCHANGE V6.1.0 or later*
6200 Series Software
* You must have INTERCHANGE 6.1.0 for Windows 95 PlugĆnĆPlay 1784ĆPCMK support.
Tip: Pick the INTERCHANGE to DH+Ć1
Channel configuration option
6723ĆPCO
AI
