Process Configuration and Operation Software for Windows
t
16
Publication 6723Ć10.1 Ć August 1996
Select Your PLC Processor Type
Before you do anything else, you must define the PLC processor
type that your application will be using.
1. From the Configure menu, choose PLC Type.

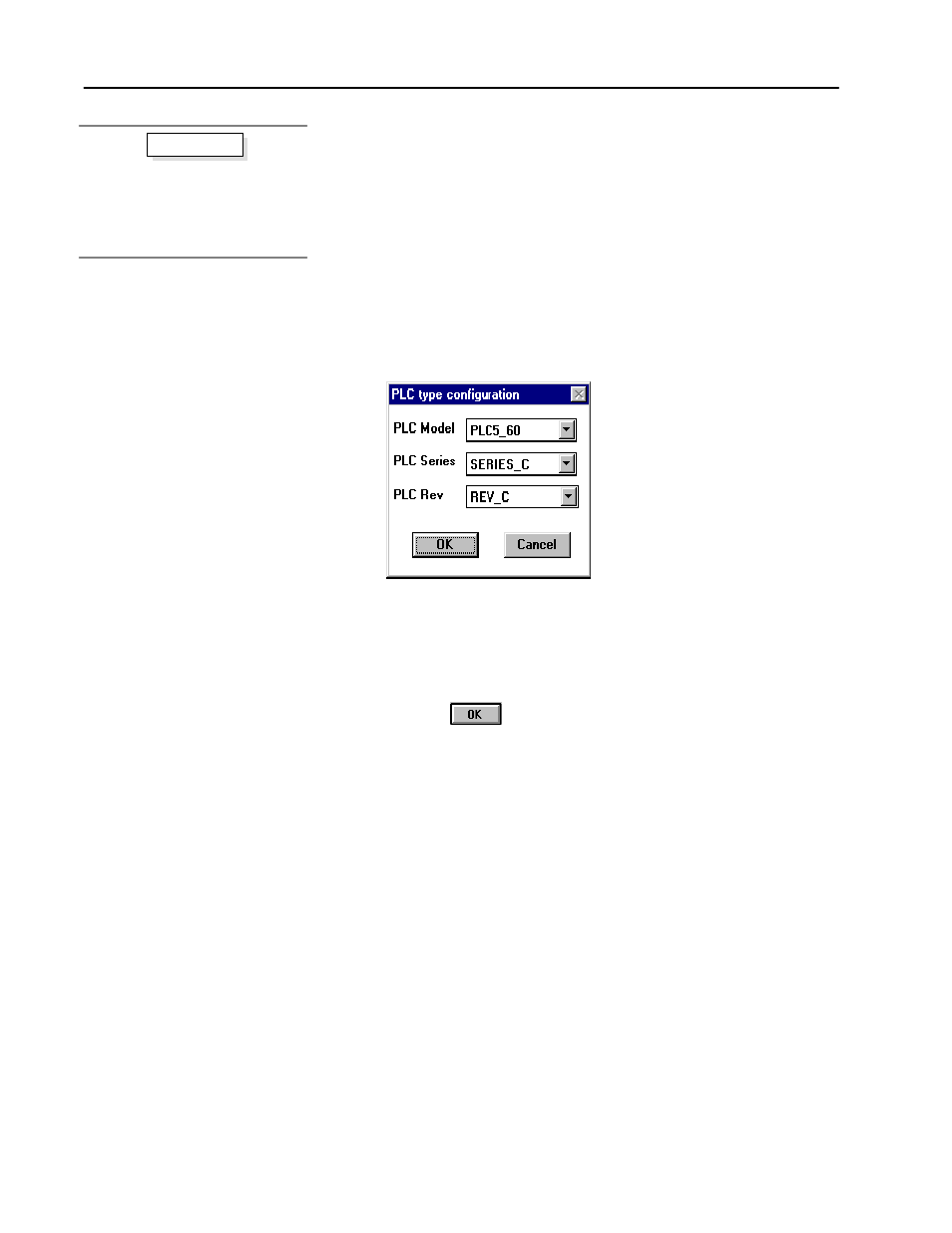

The PLC type configuration dialog box appears.
If you get an error message instead, it could be that your PCO
Application Files window is not empty. If this is the case, select
all the files listed in the window and press DEL to delete the
contents of this window. Then repeat step 1.
2. Enter your PLC processor Model, Series, and Rev information
appropriate for your processor.
For the grain dryer application example, we will use the
PLC-5/60, Series C, Rev C processor.
3. Click on
.
This saves your inputs and closes the PLC type configuration
dialog box.
You cannot alter the PLC type configuration information if the PCO
Application Files window (in the upper right corner of the PCO
Library Manager screen) is not empty. You must delete all files
before you can enter new PLC type configuration information.
1. From the Configure menu, choose
PLC Type.
2. Enter the appropriate information for
your processor type.
3. Click on OK.
