6–4 Creating Control List Selectors and Tags
Publication 2711E-818 – January 1998
9. Place each image directly on the button, as shown. See Chapter 5
for information on importing and drawing graphic images.
10. After you’ve added the arrows, select each arrow and choose
Make Label from the Edit menu. This associates the image with
the object. If MakeLabel appears dimmed, PanelBuilder
automatically made the graphic image into a label when you
placed it. The handles for the image are hollow if it is a label.
11. Since you’ll be assigning a function key to this button, add the
following text: F16
12. Select the object and change the appearance of the object to
match the remaining objects on the screen. Make the following
changes:
A. Change the colors to yellow on dark blue.
B. Select the list component by clicking it twice, and choose
Inset 4 as Border Style in the Format menu.
C. Select the down button by clicking it twice, and choose
Raised 2 as Border Style.

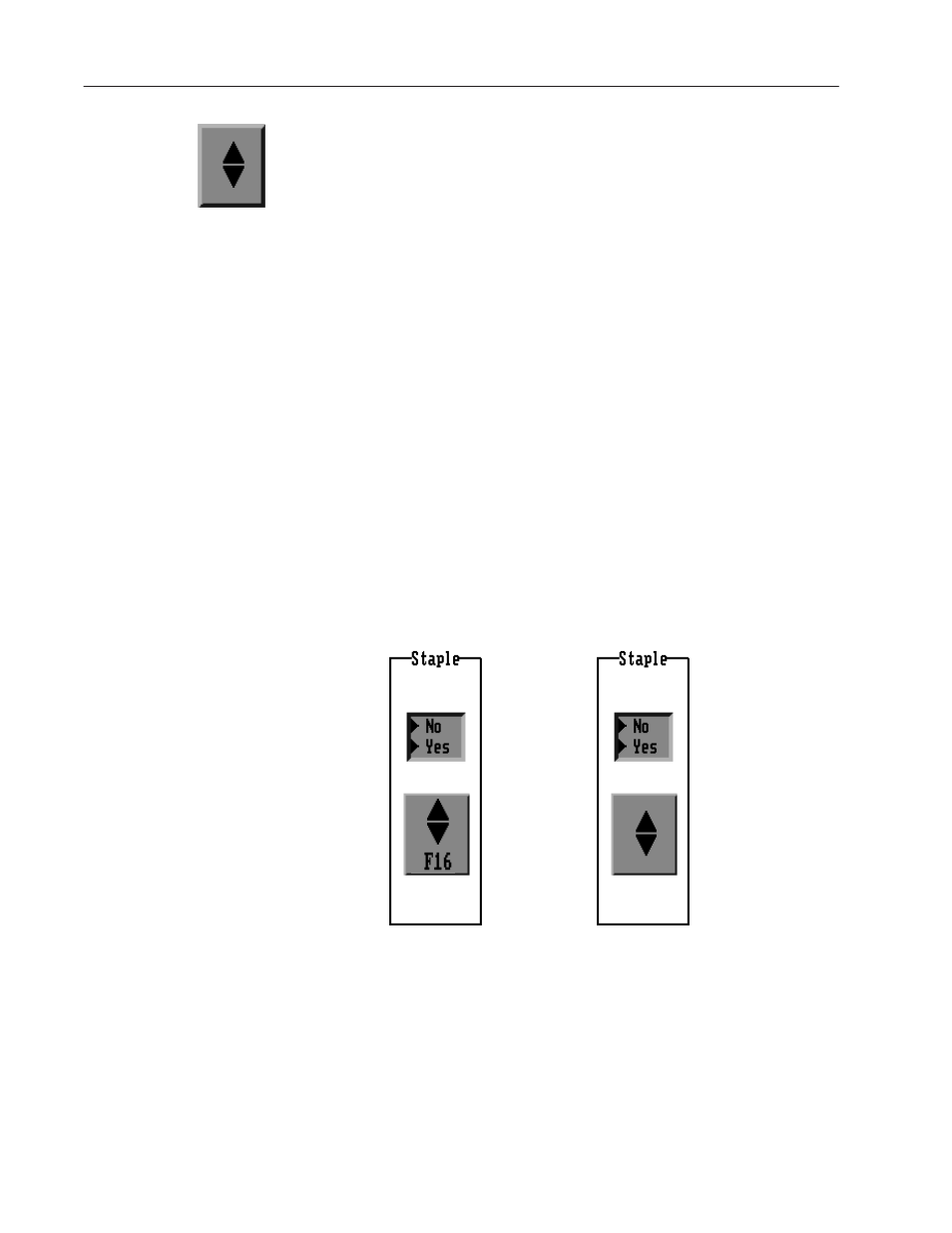

When you’re finished, the Control List Selector without Enter
Key should look similar to the following illustration.
Keypad Touch Screen
Now you’re ready to configure the Control List Selector without
Enter Key.
