4–9

Introduction to the Tutorial

Publication 2711E-818 – January 1998

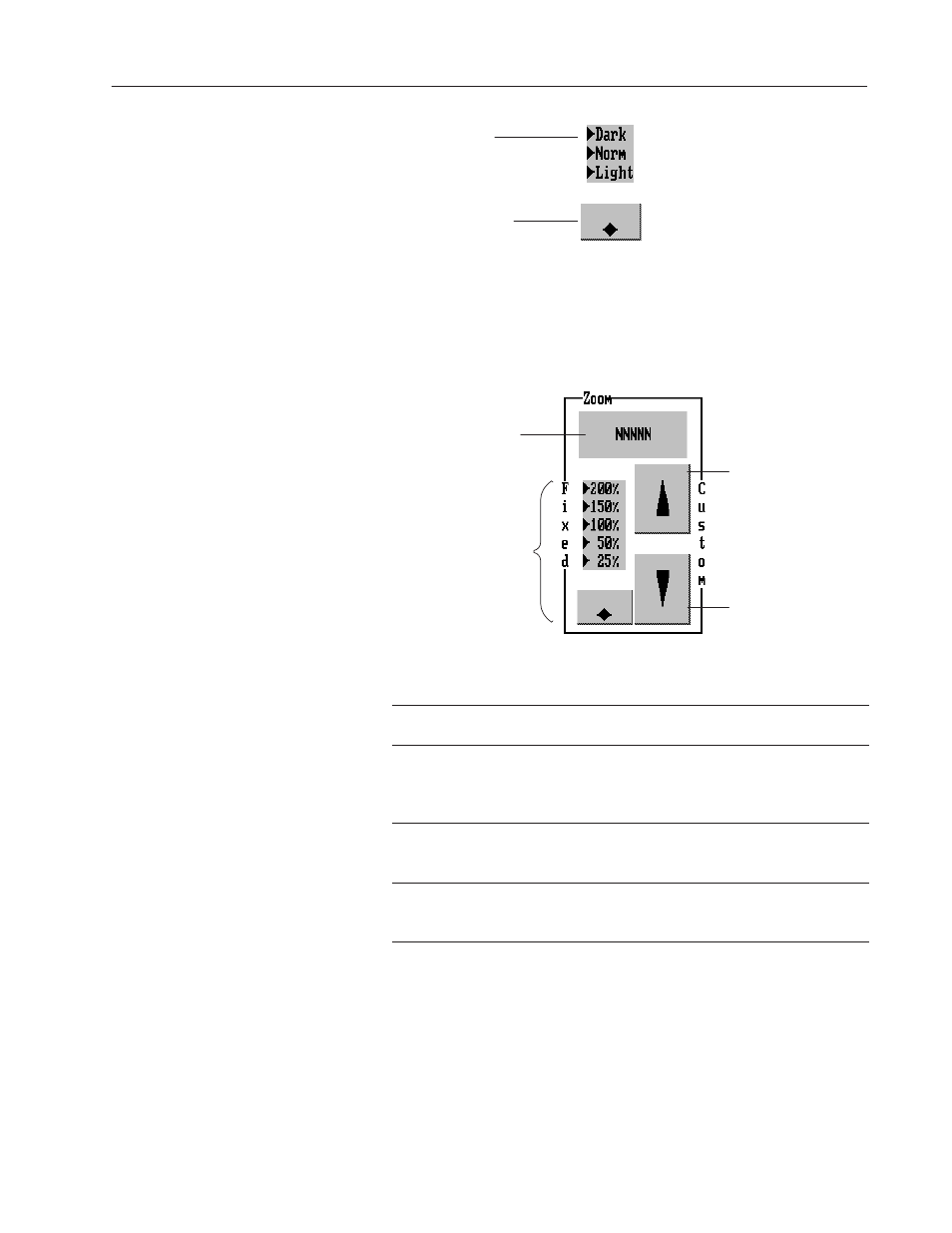

List component

Down Cursor button

Zooming—These objects enable you to choose whether you want to
increase the magnification of the copies, or decrease the zoom. You
can choose from a list of zoom options. Then, if you wish, you can
fine-tune these to the exact zoom you want.

Numeric Data Display

Control List Selector
(without Enter Key)

Normally Open
Momentary Push Button

Object

Function

Numeric Data Display
(Zoom)

Displays the zoom you’ve selected for the document.

Control List Selector
without Enter Key (Zoom
Fixed)

Choose the zoom option you want for the document, from
25% to 200%. The default is 100%. Press the Down
Cursor button or the corresponding function key to move
through the list and to make the selection.

Normally Open Momentary
Push Button (Zoom
Increment)

Press this button or the corresponding function key to
increase the zoom by single percentages.

Normally Open Momentary
Push Button (Zoom
Decrement)

Press this button or the corresponding function key to
decrement the zoom by single percentages.

Note: This is an example of a complex object that is created out of
several simple objects.
