3–10

A Brief Tour of PanelBuilder 1400e

Publication 2711E-818 – January 1998

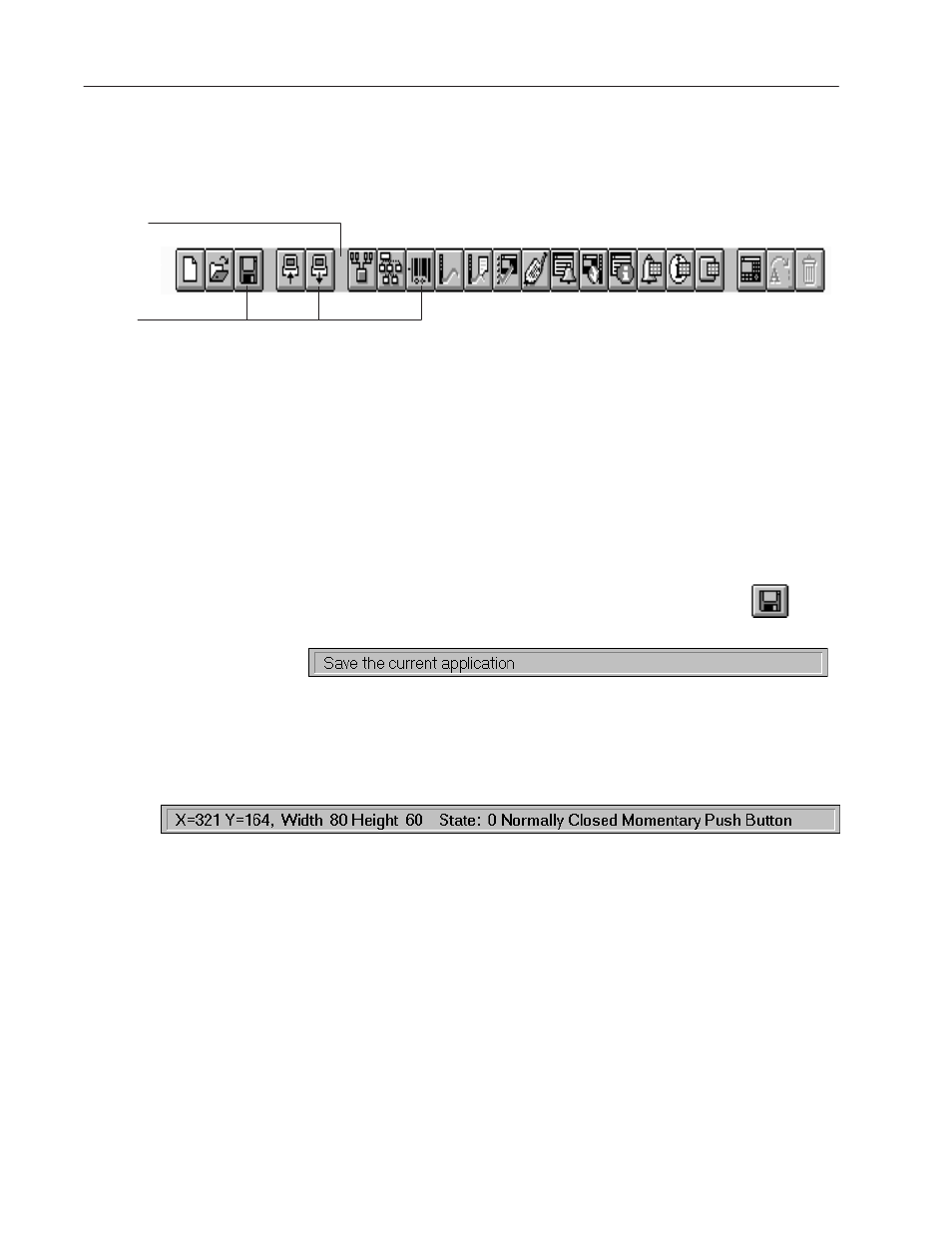

The toolbar consists of icons that carry out commands when you
click them. Each icon corresponds to either a menu item or an editor
in the Application Window folders.

Toolbar

Icons

You will notice that the menu bar changes as you work in different
editors within PanelBuilder 1400e.

Using the Status Bar

Each window in PanelBuilder 1400e has a status bar. The status bar
informs you about PanelBuilder 1400e components, tools,
commands, and error messages.

For example, if you position the mouse pointer over the

icon,

the following message appears in the status bar.

Or, if you select a screen object in an application screen, the status
bar tells you what kind of object you’ve selected, its position on the
screen, height and width, and state.

In the Screen editor, as you move the mouse pointer, the status bar
displays the pointer’s coordinates on the screen.
