Rockwell Automation 2711E-ND1 PanelBuilder 1400E Configurator Software Getting Started User Manual
Page 32
2–11
Setting Up PanelBuilder 1400e
Publication 2711E-818 – January 1998

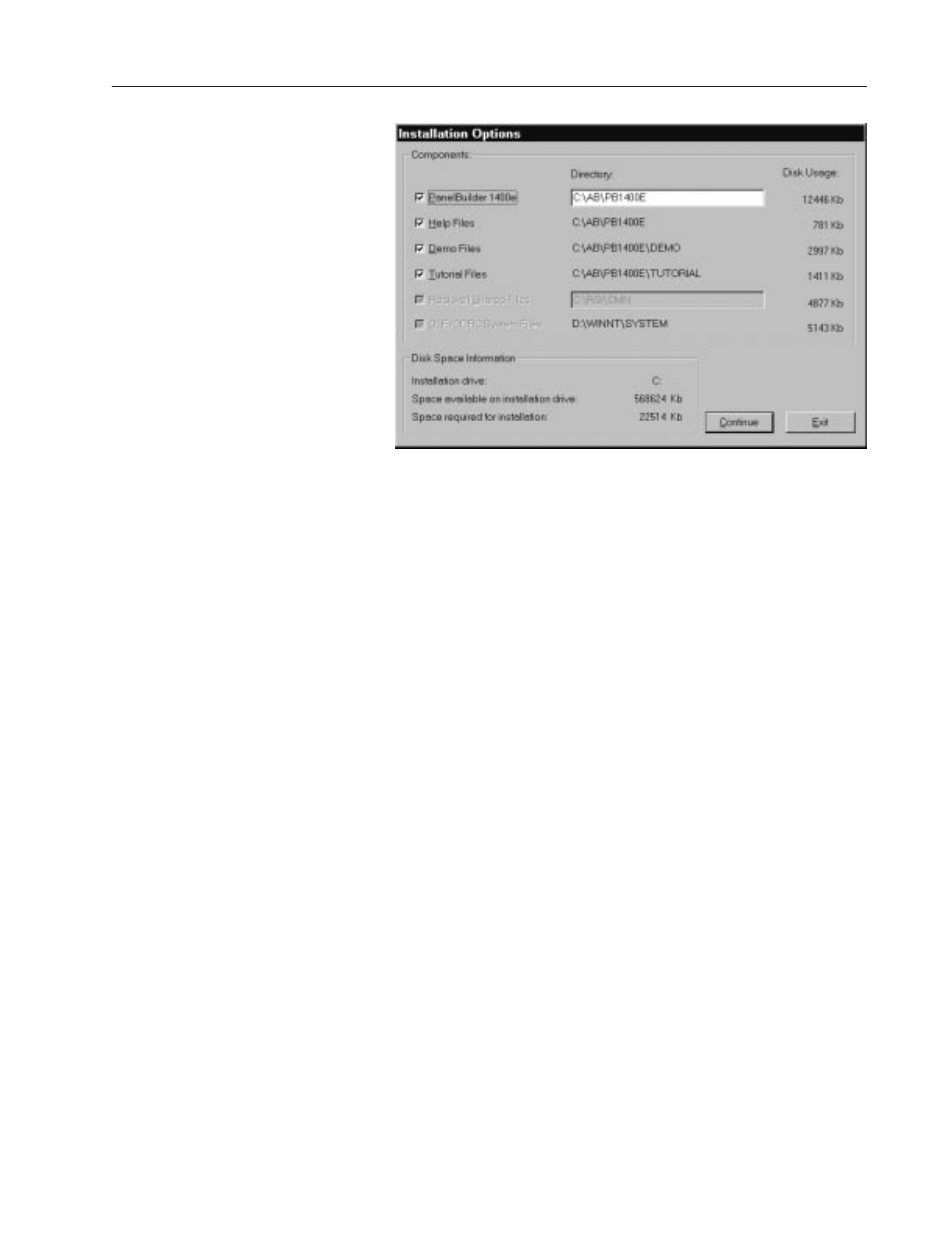

You can install any or all of the following options:
•
PanelBuilder 1400e
•
Help files
•
Demo files—These files demonstrate sample PanelBuilder
1400e applications.
•
Tutorial files—These files are required for the tutorial outlined
in this manual.
The following files are part of the install set and cannot be
deselected:
•
OLE/ODBC System Files—These files are necessary for
running PanelBuilder 1400e.
If disk space is limited, you may want to install only PanelBuilder
1400e. However, if you have enough space, we strongly
recommend you also install the Help files.
7. If the C:\RSI\CMN directory already exists, an Installation dialog
box appears, indicating the files in the C:\RSI\CMN directory
will be updated. Click Yes to continue with the installation.
8. When the files have finished loading, an Installation dialog box
appears to confirm completion. Click OK to continue.
9. After the installation is complete, you will be prompted to reboot
your computer. You can reboot immediately or later, but you must
reboot before you can run PanelBuilder 1400e, or other
applications successfully.
