Programming interfaces, A –5 – Rockwell Automation 1771-DB BASIC MODULE User Manual
Page 337
Product Overview
Appendix A
A –5
Program the BASIC module using a subset of the Intel
BASIC 52
programming language. You can program the BASIC module using an
ASCII terminal or a personal computer running ASCII terminal emulation
software, such as the BASIC Development Software (catalog number
1747-PBASE).
Refer to Chapter 2 for additional information on port configuration.
ASCII Terminal Interface
Use an ASCII terminal to enter a BASIC program one line at a time to
your BASIC module through port PRT1. The ASCII terminal connected to
the BASIC module must be an industrial terminal, workstation, or personal
computer (without the BASIC development software) that communicates
in alphanumeric mode. An ASCII terminal can also be used to display
charts or graphs generated by your BASIC program.

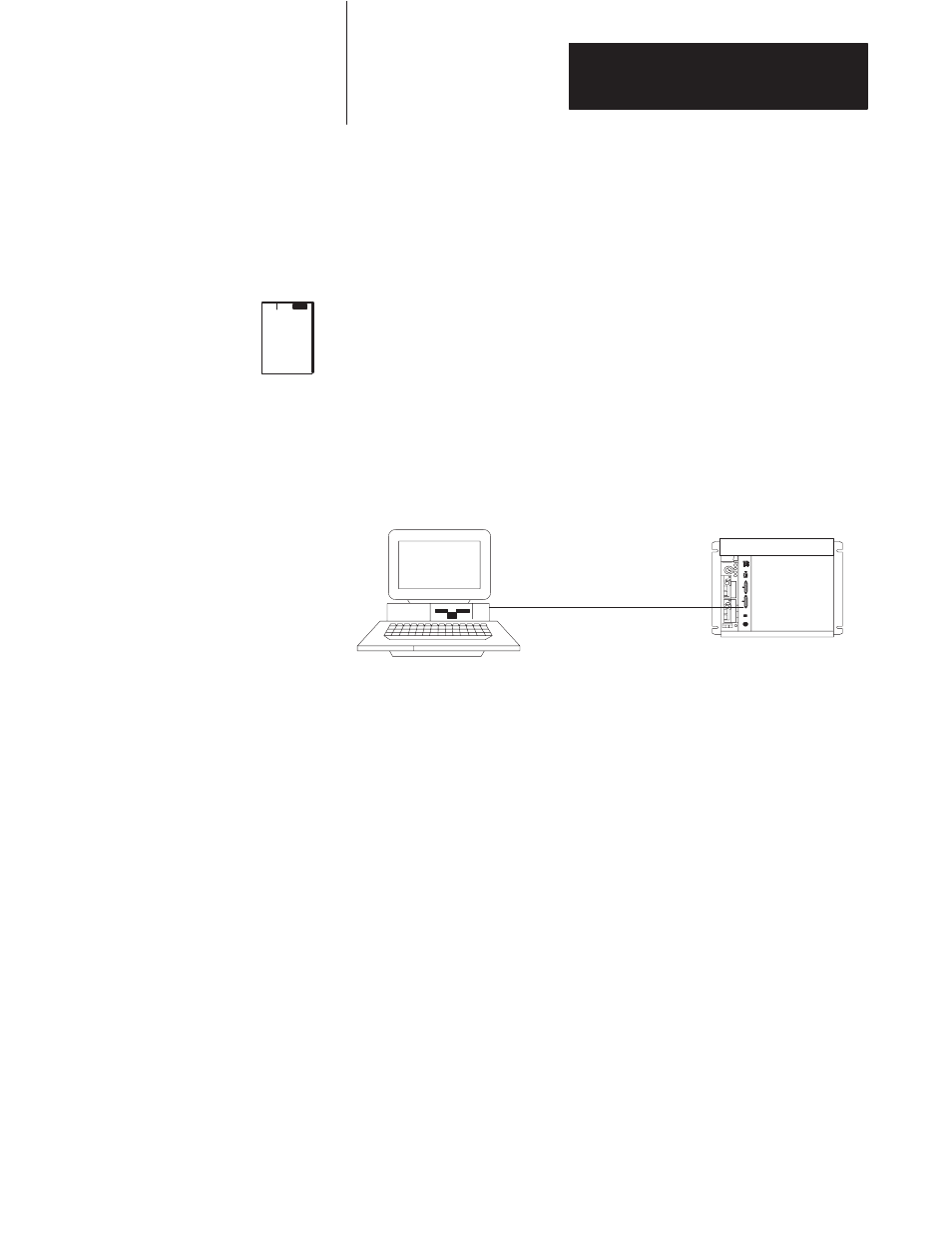

PLC processor
with BASIC module
Console device with ASCII
terminal emulation software
Null modem cable
In this configuration, you connect the RS-232 port on the back of your
industrial terminal or personal computer to port PRT1 on your BASIC
module. Port PRT1 must be configured as the program port.
Programming Interfaces
Chapter
