Publication 1769-UM001B-EN-P - October 2002
Explicit Messaging Application Examples B-3

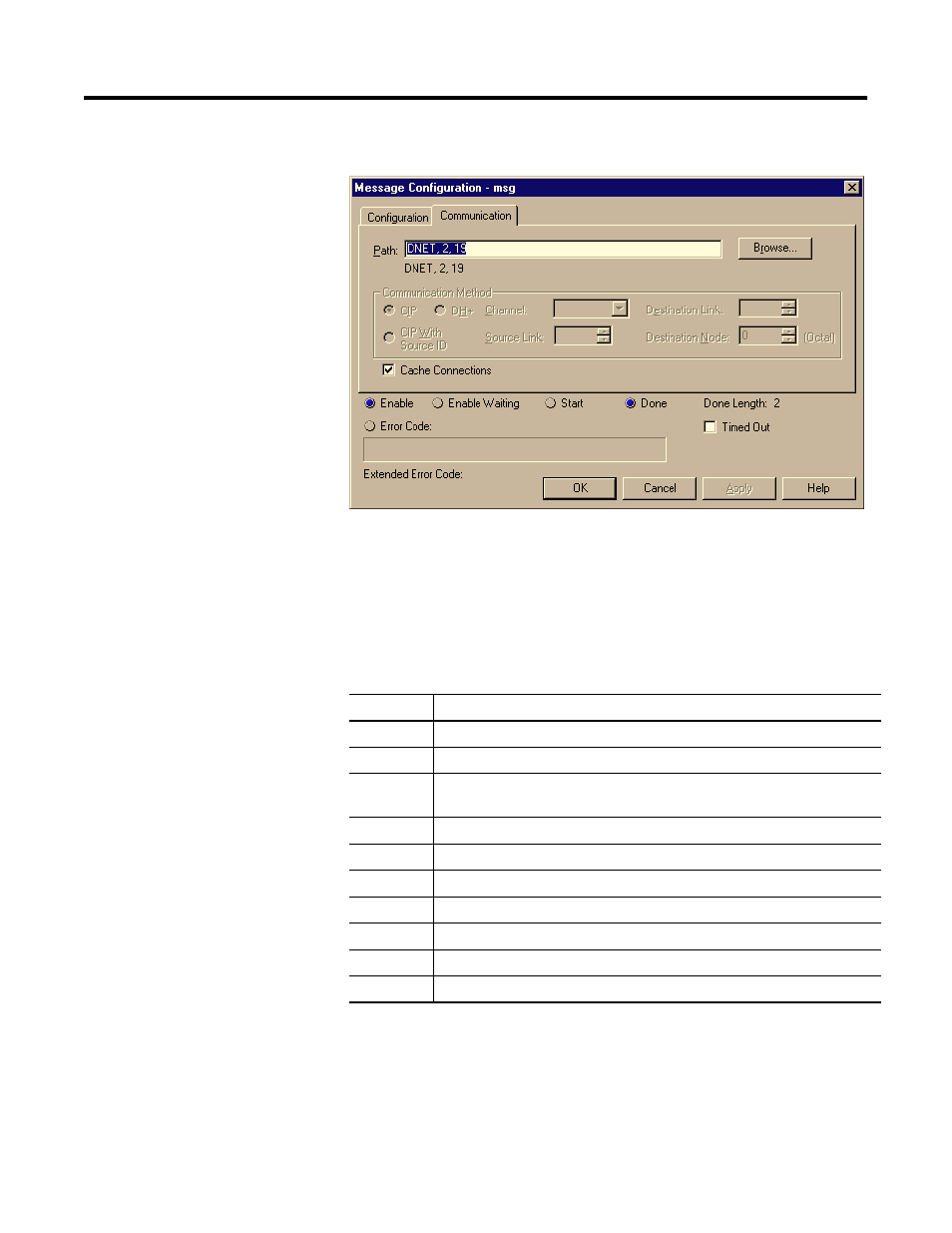

The following screen is the Communications tab for the MSG
instruction above.
You only need to enter the path on this screen. “DNET” refers to the
module on the 1756 backplane to which the message is sent. “2” is the
DeviceNet port on the 1756-DNB. “19” is the DeviceNet address of the
1769-ADN.
The status word written to the tag specified in the destination field of
the MSG instruction is defined as follows:
Refer to the Troubleshooting information in Chapter 4 for additional
information on Recoverable and Unrecoverable, Major and Minor
faults.
Bit Description
0 When true, indicates the device has an owner
1 Reserved, set to 0
2 When true, indicates the application of the devices has been configured
beyond out-of-the-box defaults
3 Reserved, set to 0
4-7 Vendor specific
8 When true, indicates the device has experienced a Minor Recoverable Fault
9 When true, indicates the device has experienced a Minor Unrecoverable Fault
10 When true, indicates the device has experienced a Major Recoverable Fault
11 When true, indicates the device has experienced a Major Unrecoverable Fault
12-15 Reserved, set to 0
