6-6 Application Examples
Configuring the 1747-SDN To configure the 1747-SDN DeviceNet scanner to exchange I/O data

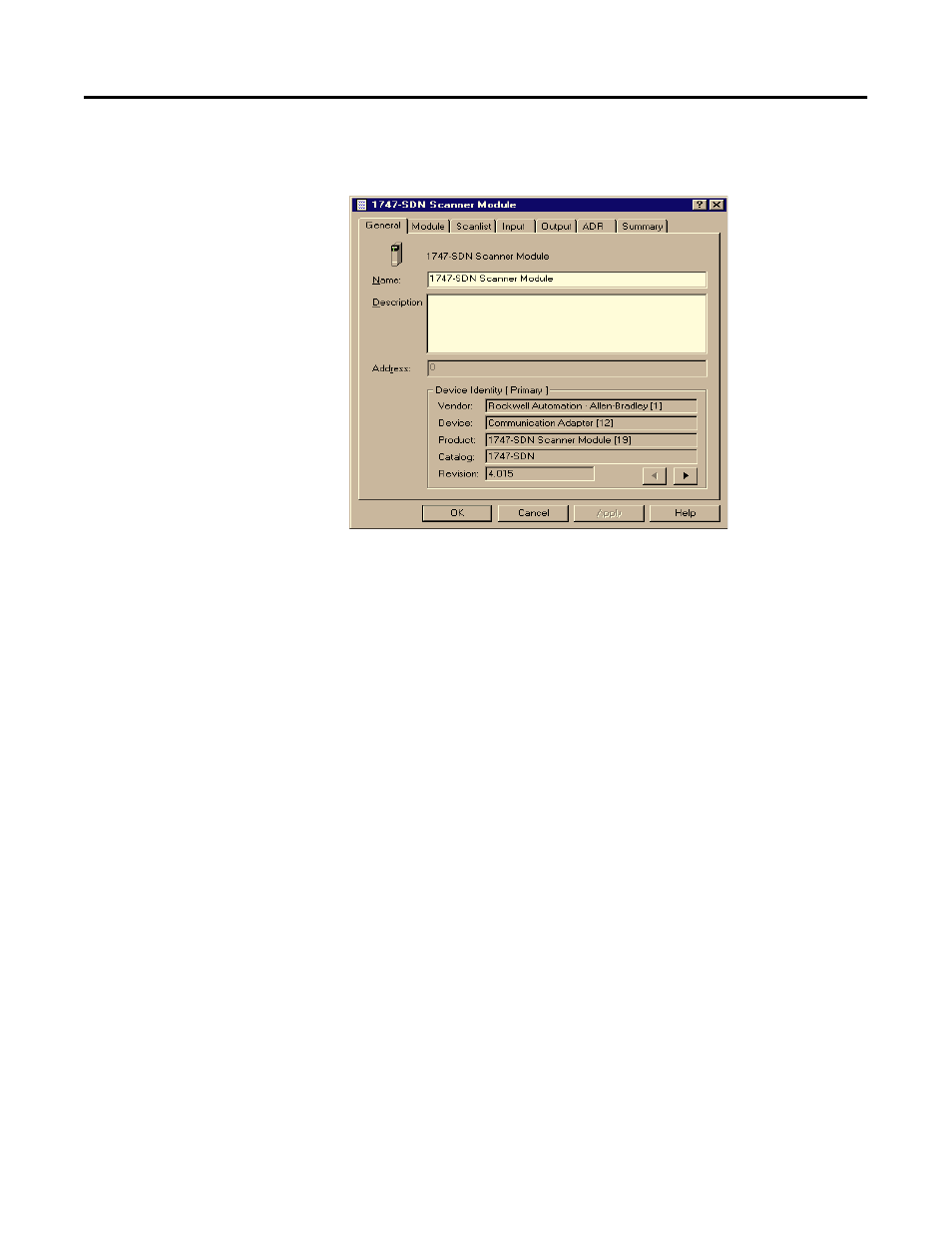

with the 1769-ADN, double-click on the 1747-SDN. You’ll see this
screen.
The General tab supplies information about the scanner. Choose the
Module tab and choose Upload on the Scanner Configuration screen.
Once the upload is complete you’ll return to the Module tab.
You should accept the defaults except for the 1747-SDN slot number.
For this example, the slot number for the 1747-SDN in its SLC chassis
is 3.
After modifying the chassis slot number, choose Download to
Scanner. This will ensure that the correct I/O addresses are displayed
under the Input and Output tabs.
Now choose the Scanlist tab. To add the 1769-ADN to the 1747-SDN
scanlist, choose the 1769-ADN shown in the Available Devices box on
the left. Choose the single right arrow between the Available Devices
box and the Scanlist box. This moves the 1769-ADN to the 1747-SDN
scanlist.
