6-26 Application Examples
Read I/O Configuration

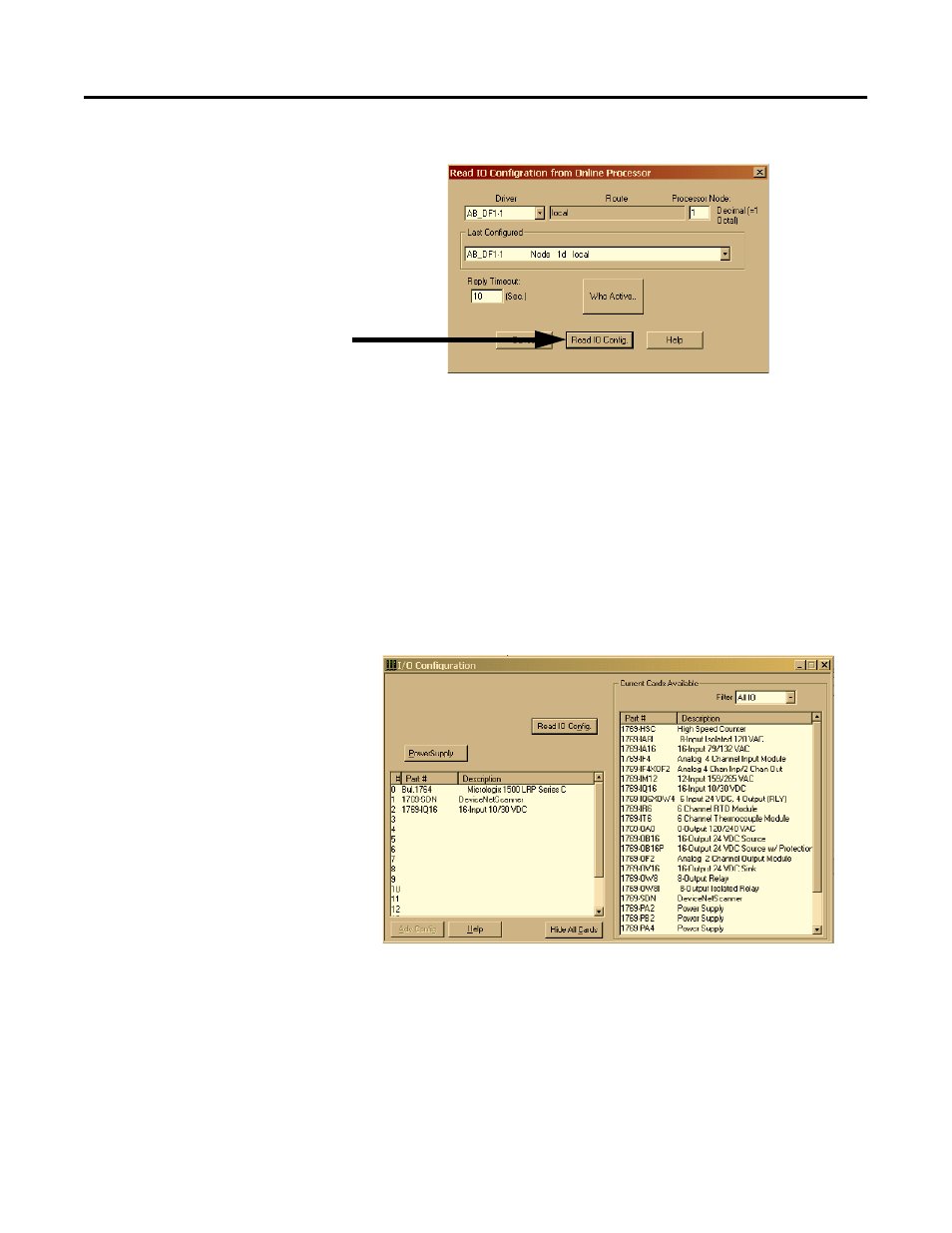

The next screen that appears is a communications dialog that allows
you to select a communication path using RSLinx to the MicroLogix
controller.
If you have previously connected to a controller, the communications
driver that you used before will be the active driver. This dialog
screen provides the ability to change the driver or perform a Who
Active across a network to locate the specific MicroLogix controller.
If the driver and path are correct, select Read I/O Config.
Installed I/O
RSLogix 500 then displays all of the I/O modules that are attached to
the MicroLogix controller.
In this example, there is a 1769-SDN scanner module at slot 1, and a
16-point discrete input module in slot 2.
