Application Examples 6-3

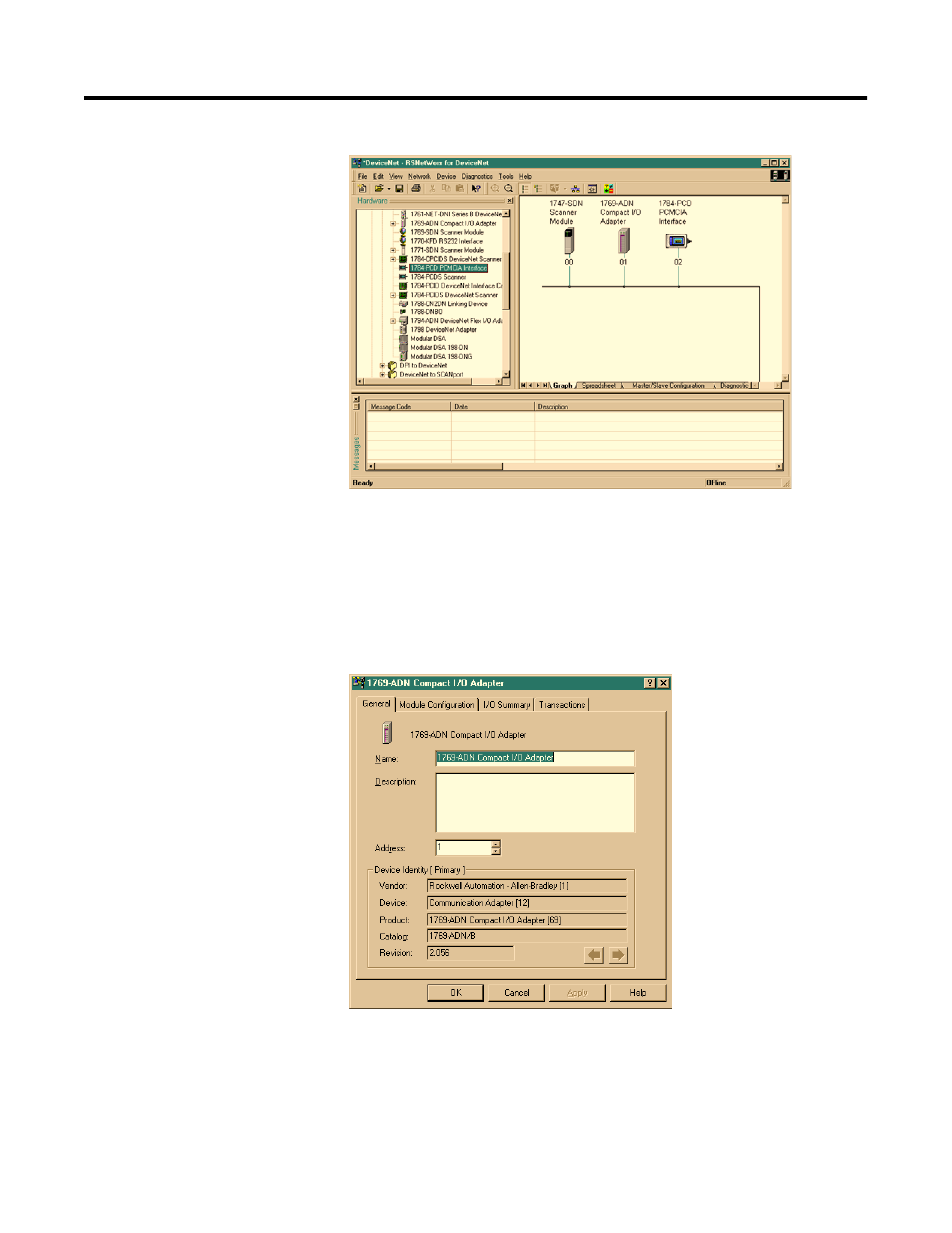

You’ll see this screen with your network devices.
Note that this example has the 1747-SDN at node address 00, the
1769-ADN at node address 30, and the 1784-PCD at node address 62.
These node address assignments are arbitrary and each device could
be assigned any unique address from 00 to 63.
To begin configuring your DeviceNet network you’ll configure the
Compact I/O system. Double-click on the 1769-ADN icon. You’ll see
this screen.
