Using banks of i/o, Configuration rules for series b adapters – Rockwell Automation 1769-ADN Compact I/O 1769-ADN DeviceNet Adapter User Manual

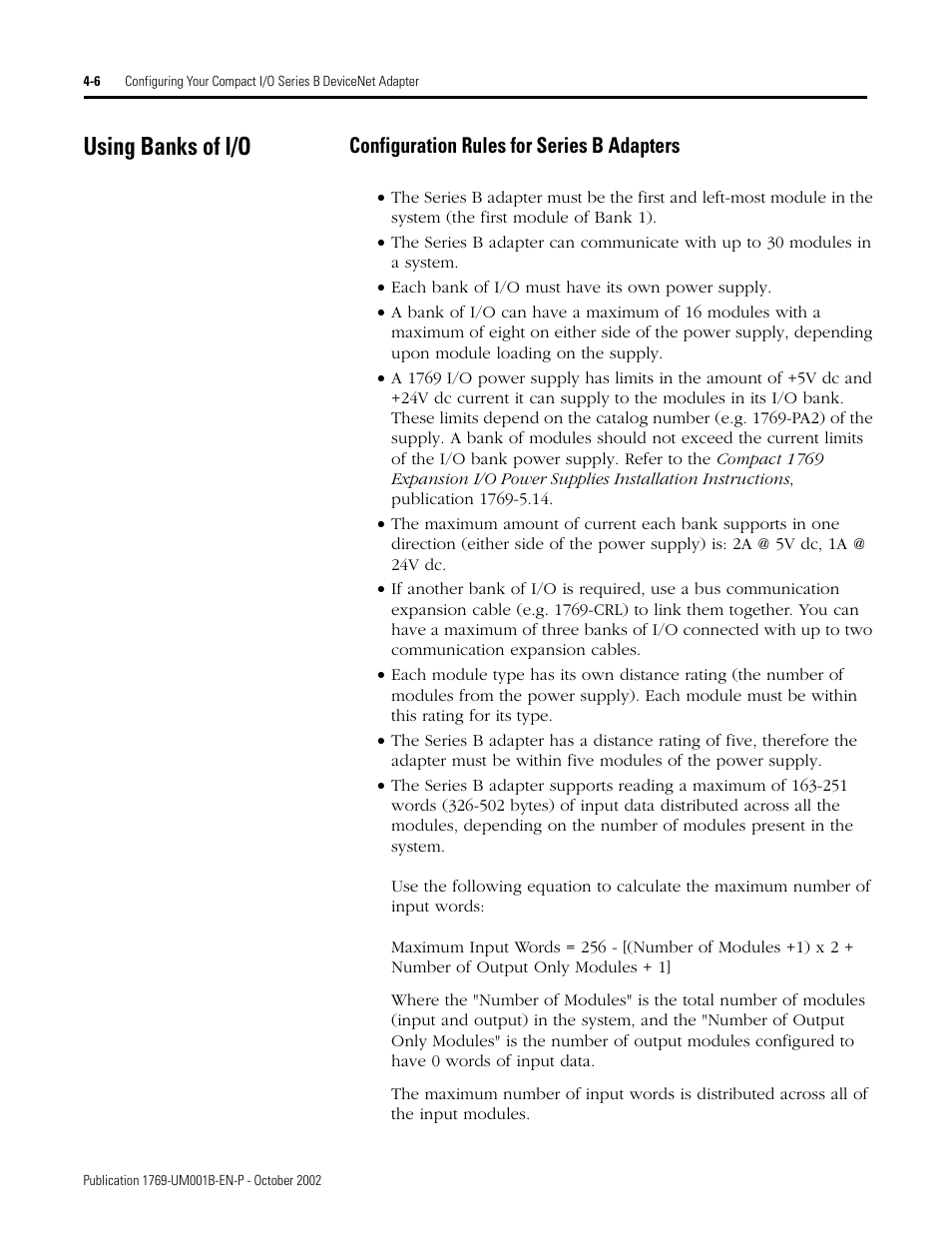

Page 82
