4-4 Configuring the Module

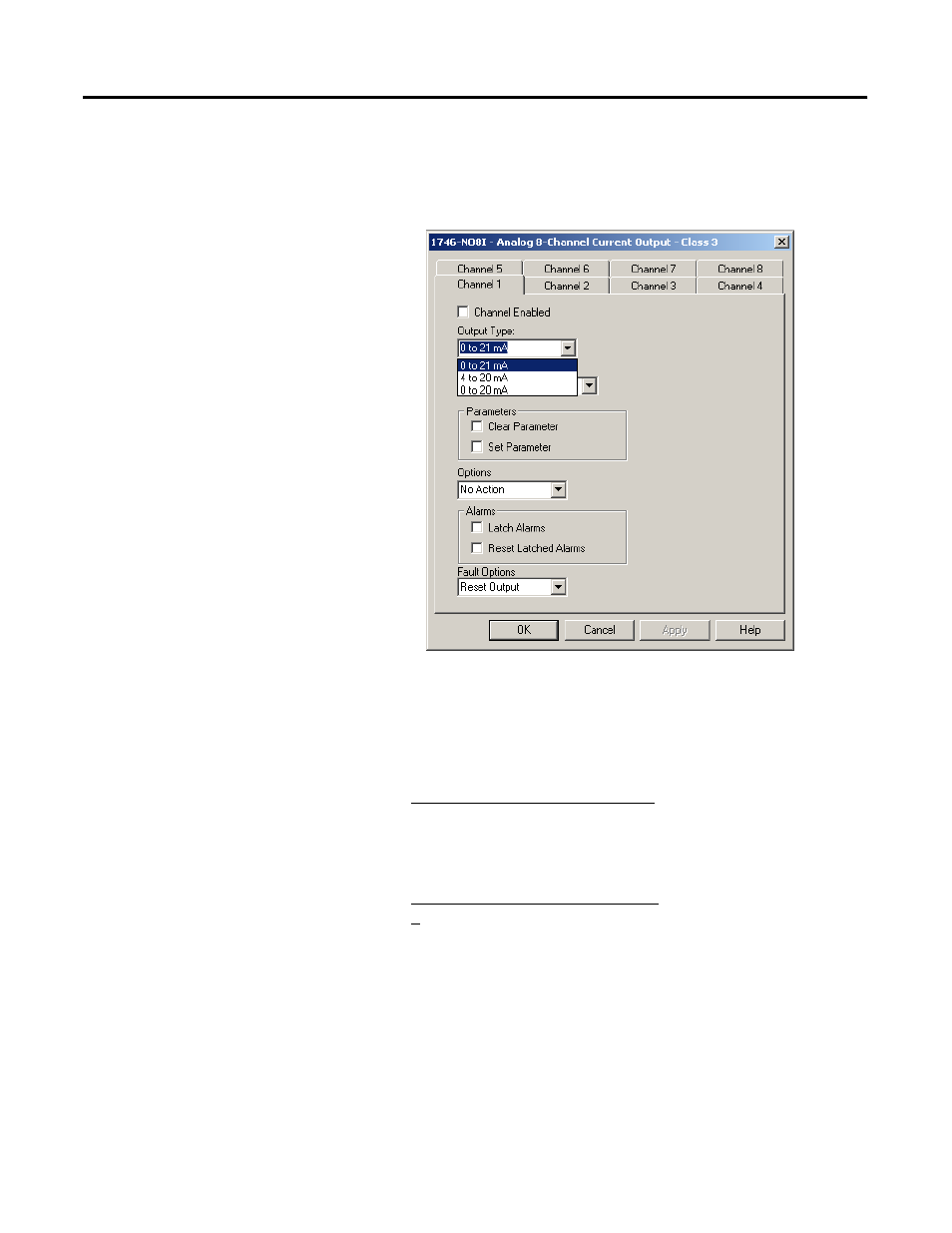

6. Check boxes and pull-downs allow for complete configuration

for each channel. The pull-downs provide the following
configuration options:

a. The “Channel Enabled” check box controls bit 0 of the

channel configuration word.

b. The “Output Type” pull-down allows configuration of the

output range (bits 1 and 2 of the channel configuration word),
dependent upon the module being used.

1746-NO8I Current Output Type:
0 to 21 mA
4 to 20 mA
0 to 20 mA

1746-NO8V Voltage Output Type:
+10V dc
1 to 5V dc
0 to 5V dc
0 to 10V dc

c. The “Clear Parameter” and “Set Parameter” check boxes

correspond to bits 7 and 8 of the channel configuration word.
A configuration error will occur if both are set.
