1-12 About the Modules

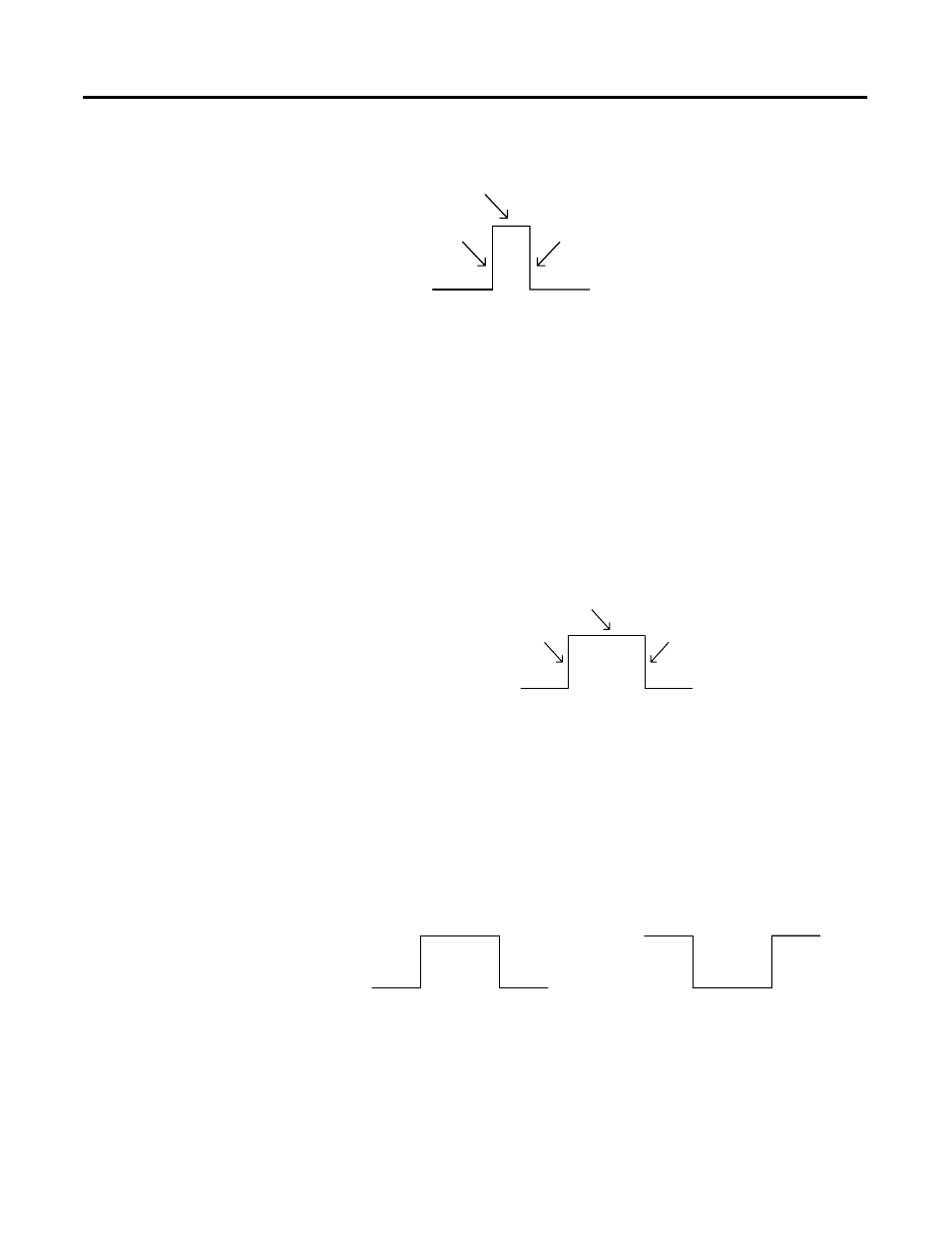

Store-Reset/Start
Output Control
To connect an output to a compare window, you could program the
module accordingly:
• Tie Output 0 to Window 0
• Program Window 0 ON Value to 2000
• Program Window 0 OFF Value to 5000
ON-OFF Operation of Output 0
If the OFF value is greater than the ON value, the output turns ON at
2000 and OFF at 5000. If the ON value is greater than the OFF value,
the output turns OFF at 2000 and ON at 5000.
and Reset to zero
Start Counting
Continue Counting
Store Count,
Output turns ON at count value of 2000
Output turns OFF at count value of 5000
Output remains energized for 3000 additional counts
Effect of ON-OFF Value on Output Operation
Output turns ON
Output turns OFF
Output remains Energized
at count of 2000
for 3000 additional counts
at count of 5000
Turn Off Value > Turn On Value
Output turns OFF
Output turns ON
Output remains Deenergized
at count of 2000
for 3000 additional counts
at count of 5000
Turn On Value > Turn Off Value
