Rockwell Automation 1734-VHSC24 Very High-Speed Counter Modules User Manual User Manual
Page 21

Publication 1734-UM003B-EN-P - August 2005
About the Modules 1-11
Store Count Mode 2: Store/Wait/Resume

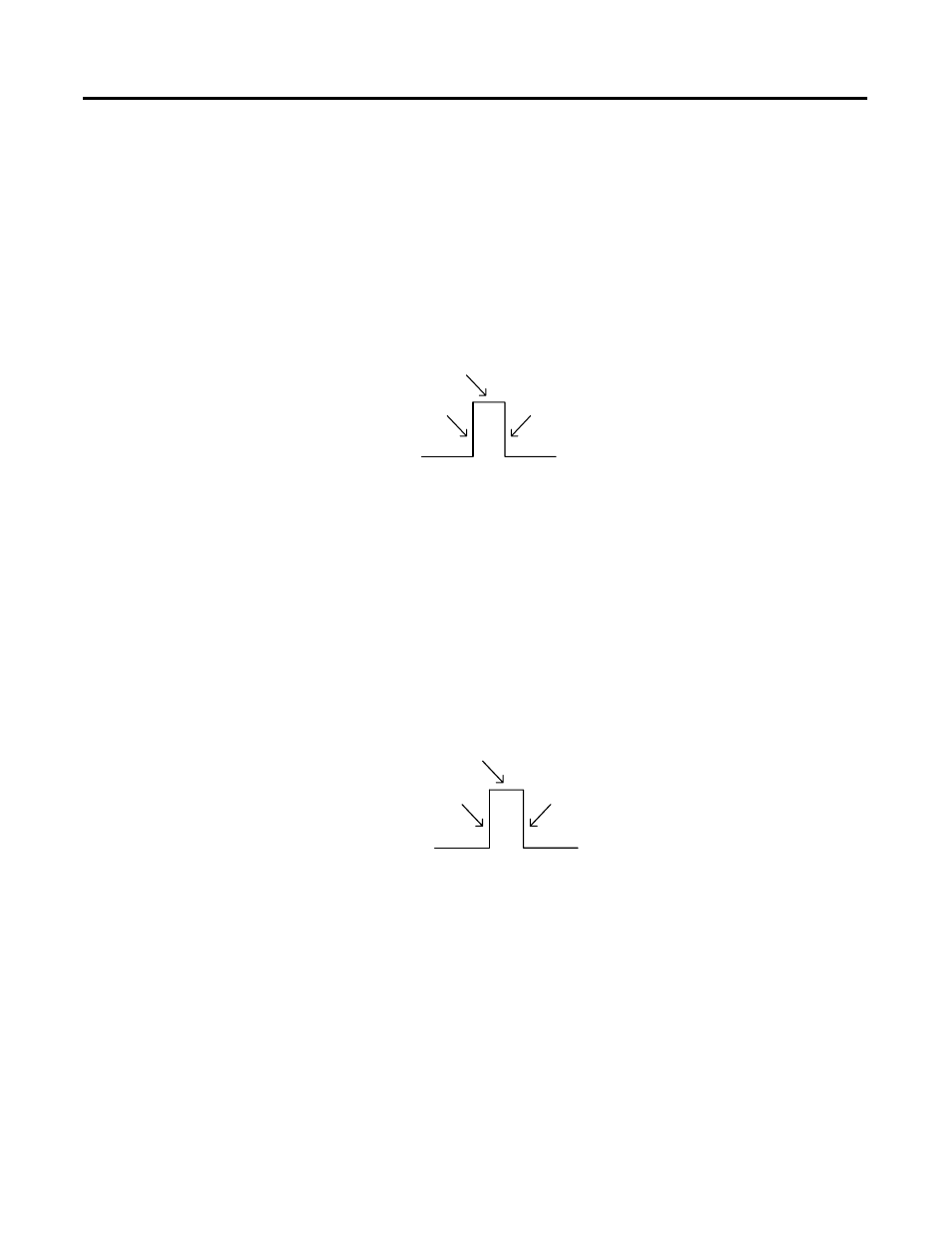

In mode 2, the rising edge of a pulse input on the Z Gate/Reset
terminal reads and stores the current counter value in the
Stored/Accumulated Count word and inhibit counting while the Z
Gate/Reset terminal is high. Counting resumes on the falling edge of
the pulse at the Z Gate/Reset terminal. The stored count information
remains until it is overwritten with new data.
Store/Wait/Resume
Store Count Mode 3: Store-Reset/Wait/Start
In mode 3, the rising edge of a pulse input on the Z Gate/Reset
terminal stops counting, reads, and stores the current counter value in
the Stored/Accumulated Count word, and resets the counter to zero.
The counter does not count while the input pulse on the Z Gate/Reset
terminal is high. Counting resumes from zero on the falling edge of
the pulse at the Gate/Reset terminal. The stored count information
remains until it is overwritten with new data.
Store-Reset/Wait/Start
Store Count Mode 4: Store-Reset/Start
In mode 4, the rising edge of a pulse input on the Z Gate/Reset
terminal stores the current counter value in the Stored/Accumulated
Count word and reset the counter to zero. The counter continues
counting while the Z Gate/Reset terminal is high. The stored count
information remains until it is overwritten with new data.
Store Count
Resume Counting
Stop Counting
and Reset to zero
from zero
Counter has stopped Counting
Start Counting
Stop Count, Store,
