Function Block Library 4–11
1336 FORCE — 5.9 August 1995

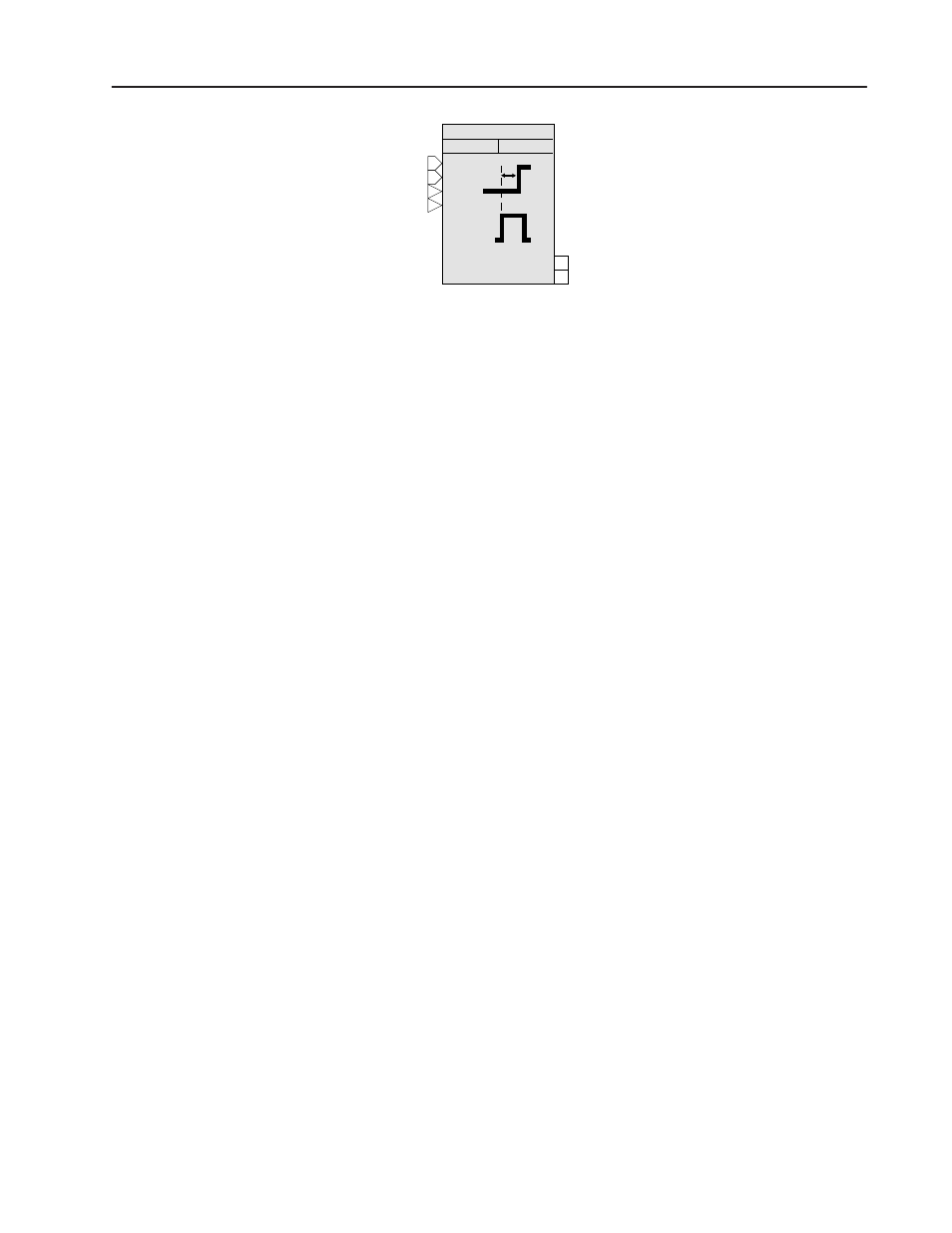

DELAY
BLOCK TYPE 6 decimal 6 hexadecimal
Delay
ID = Exec =
Out Not
NODE 0 Input
NODE 1
NODE 5
Out NODE 4
Enable
NODE 2 On (ms)
NODE 3 Off ms.
IN
OUT
DEFINITION
The output echoes the logical input after a specified time delay.
Separate time delays of On (ms) and Off ms. are provided for rising
and falling edges. The resolution of the on and off delay times are
calculated and limited by the 20 mS task interval.
INPUTS
Input — A logic input.
Enable — When true, enables the delay function. When false,
holds the output at it’s last state.
On (ms) — On time delay, entered in 20mS increments.
Off ms. — Off time delay, entered in 20mS increments.
OUTPUTS
Out — A logical output that follows Input if Enable is true.
Out Not — A logical output that is the complement of Out.
FUNCTION
1. If Enable
0 0:
— For the rising edge of Input, the on delay is in progress and
the On (ms) counter = mS
÷
20.
— For the falling edge of Input, the off delay is in progress and
the Off ms. counter = mS
÷
20.
2. For the On (ms) delay:
Decrement the On (ms) counter
If On (ms) counter = 0, then Out is true and Out Not is false.
3. For the Off ms. delay:
Decrement the Off ms. counter
If Off ms. counter = 0, then Out is false and Out Not is true.
