Programming 5-34
Feature Select Group (continued)
[S Curve Time] Parameter # 56 Factory Default 0.0 Sec [S Curve Time]
Parameter Type Read & Write Minimum 0.0 Sec
This parameter enables an adjustable shape S-Curve
accel/decel time. Important: [S-Curve Time] must be set
to a value less than or equal to the Accel & Decel times. Units 0.1 Second Maximum 300.0 Sec
a '
1/2
S-Curve
Time
Decel Time
1 or 2
Accel Time
1 or 2

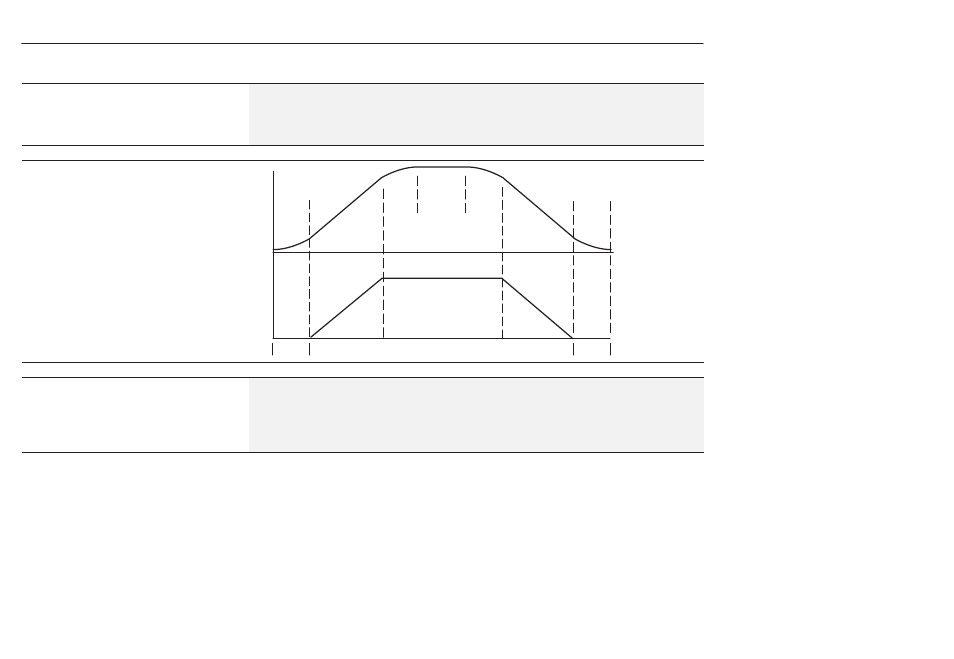

Figure 5.17 S-Curve Time
Enabled
Disabled
[S-Curve Enable] must be ‘‘enabled” for this
parameter to be active. The [S-Curve Time] setting
is added to the active accel/decel times to form an
adjustable S-Curve.
Important: If [Stop Select] is set to “S Curve”
then the decel time will be double the active decel
setting when a stop command is provided.
a '
a ' a '
1/2
S-Curve
Time
1/2
S-Curve
Time
a '
1/2
S-Curve
Time
a '
[Language] Parameter # 47 Factory Default Alternate language in multilingual versions,English in English only [Language]
Parameter Type Read & Write
Alternate language in multilingual versions,English in English only
versions.
This parameter selects between English and the alternate
second language that can be displayed on the HIM. Units Text Settings ‘‘English” or “French”
“Italian”
“Spanish”
“German”
