Modbus Communication
Chapter 14
Example Architectures
Some examples of how the CR30 is used with Modbus are shown in
.
In the example below, a PanelView C600 is connected to the serial port of the
CR30. The C600 is configured over its Ethernet port. The C600 can read status
information from the CR30 and can send reset and restart signals to the CR30.

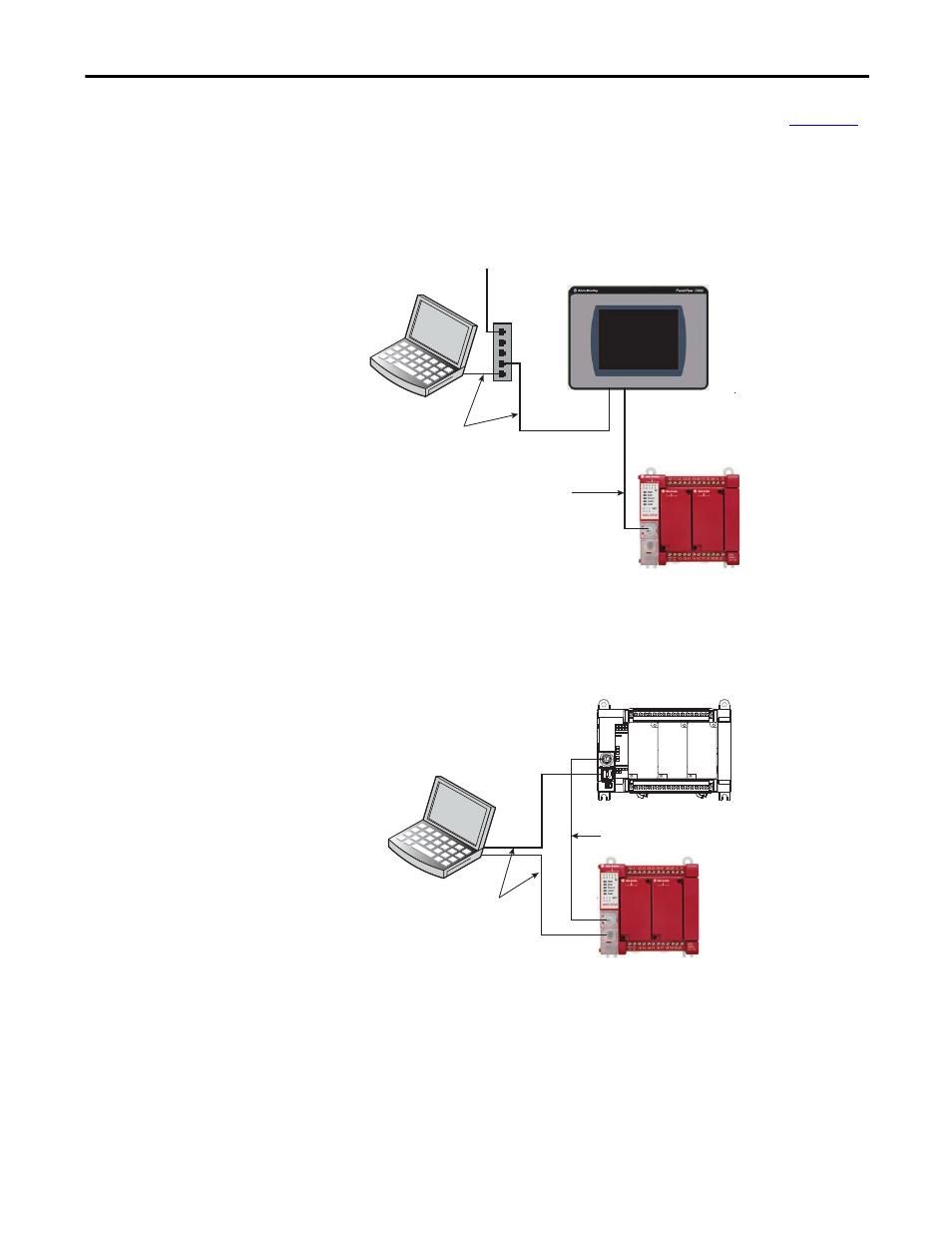

Figure 114 - Modbus RTU Communication — PanelView C600
In this example, a Micro830® is connected to the CR30 by the 8-pin DIN serial
port connections. The Micro830 can read/use status information from the CR30
and can send reset and restart signals to the CR30.
Figure 115 - Modbus RTU Communication — Micro830
In the example below, a PanelView C600 is connector the serial port of the
Micro830 and the Micro830 is connected to the CR30 through a SERIALISOL
plug-in module. The Micro830 can read/use status information from the CR30
and can send reset and restart signals to the CR30.
8-pin Mini DIN
RS232
1761-CBL-PM02 Cable
Ethernet Cables
To Ethernet DHCP-enabled Network
Ethernet Port
10/100Base-T
RS-232 Serial Port
9-pin D-shell
PanelView C600
2711C-T6T
Modbus Master
CR30
440C-CR30-22BBB
Modbus Slave
1761-CBL-HM02
8 Pin mini DIN to 8 Pin mini DIN
Standard Cable
USB A Male to B Male
Micro830
2080-LC30-24QBB
Modbus Master
CR30
440C-CR30-22BBB
Modbus Slave
