Safety Monitoring Functions Chapter 9

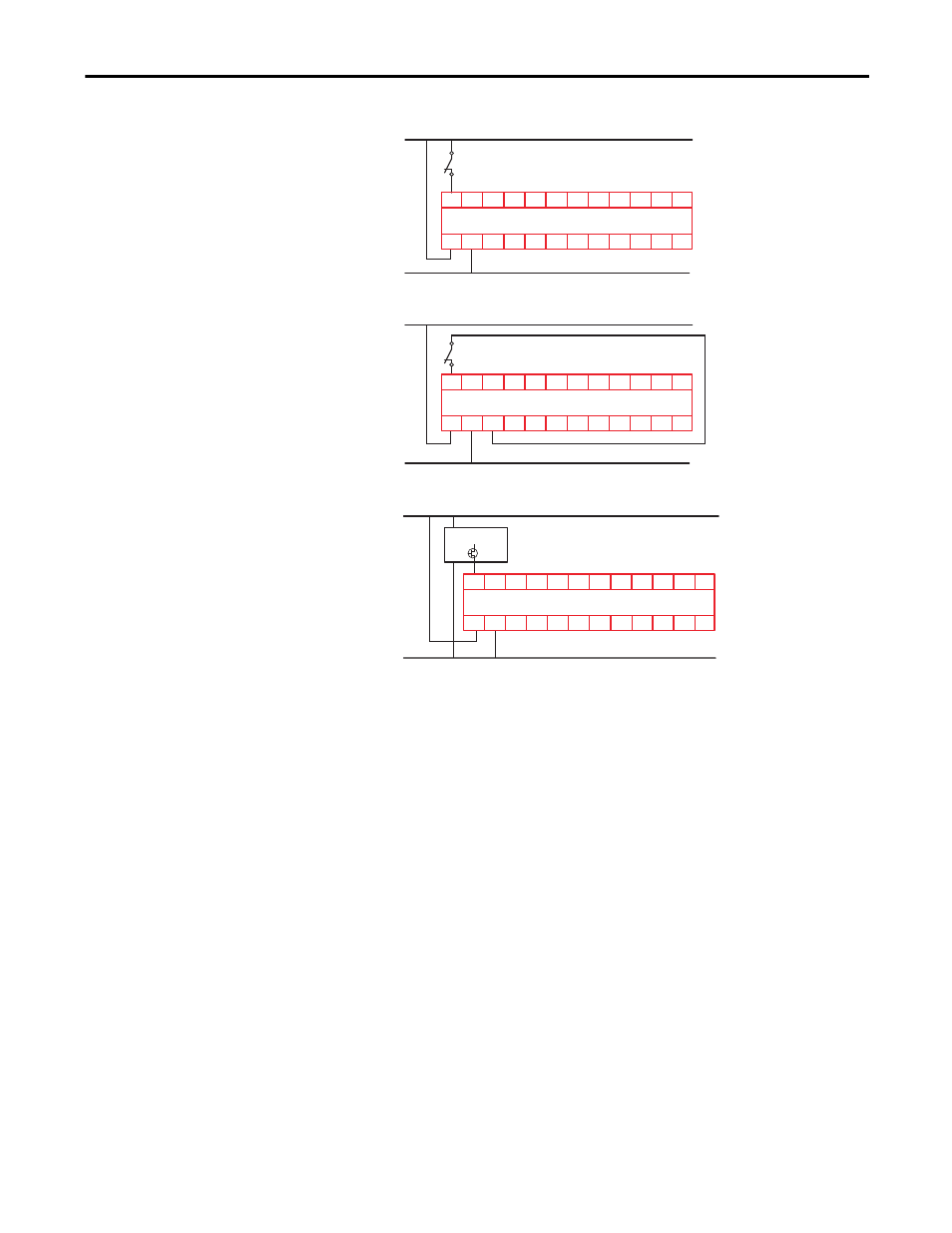

Figure 75 - Example Schematic for Single Channel N.C. without Test Pulse
Figure 76 - Example Schematic for Single Channel N.C. with Test Pulse
Figure 77 - Example Schematic for Single Channel OSSD
Dual Channel
Dual channel safety monitoring functions require two independent circuit
connections to the CR30. Dual channel inputs are used for medium and high risk
applications.
You can modify the number and types of inputs:
• 2 N.C.
• 2 OSSD
• 1N.C./1 N.O.
The available input selections for the dual-channel OSSD and two N.C.
inputs are:
• EI_00…EI_11 (embedded input terminals 00…11)
• MP_12…MP_17 (multi-purpose terminals 12…17)
The available input selections for the N.O. contact are:
• MP_12…MP_17 (multi-purpose terminals 12…17)
