1-24 Installation/Wiring
Table 1.G Recommended Control Wire for Digital I/O
Wiring the Main Control Board I/O Terminals
Terminal blocks TB1 and TB2 contain connection points for all inputs,
outputs, and standard encoder connections. Both terminal blocks reside on
the Main Control Board of the PF700S Control Cassette.
Remove the terminal block plug from the socket, and make connections.
Important: For NEMA 1 applications, all wiring must be routed through
the conduit plate on the drive. Route any wires from the
expanded cassette to the base cassette and out of the drive.
Reinstall the plug when wiring is complete. The terminal blocks have keys,
which make it difficult to insert a terminal plug into the wrong socket.

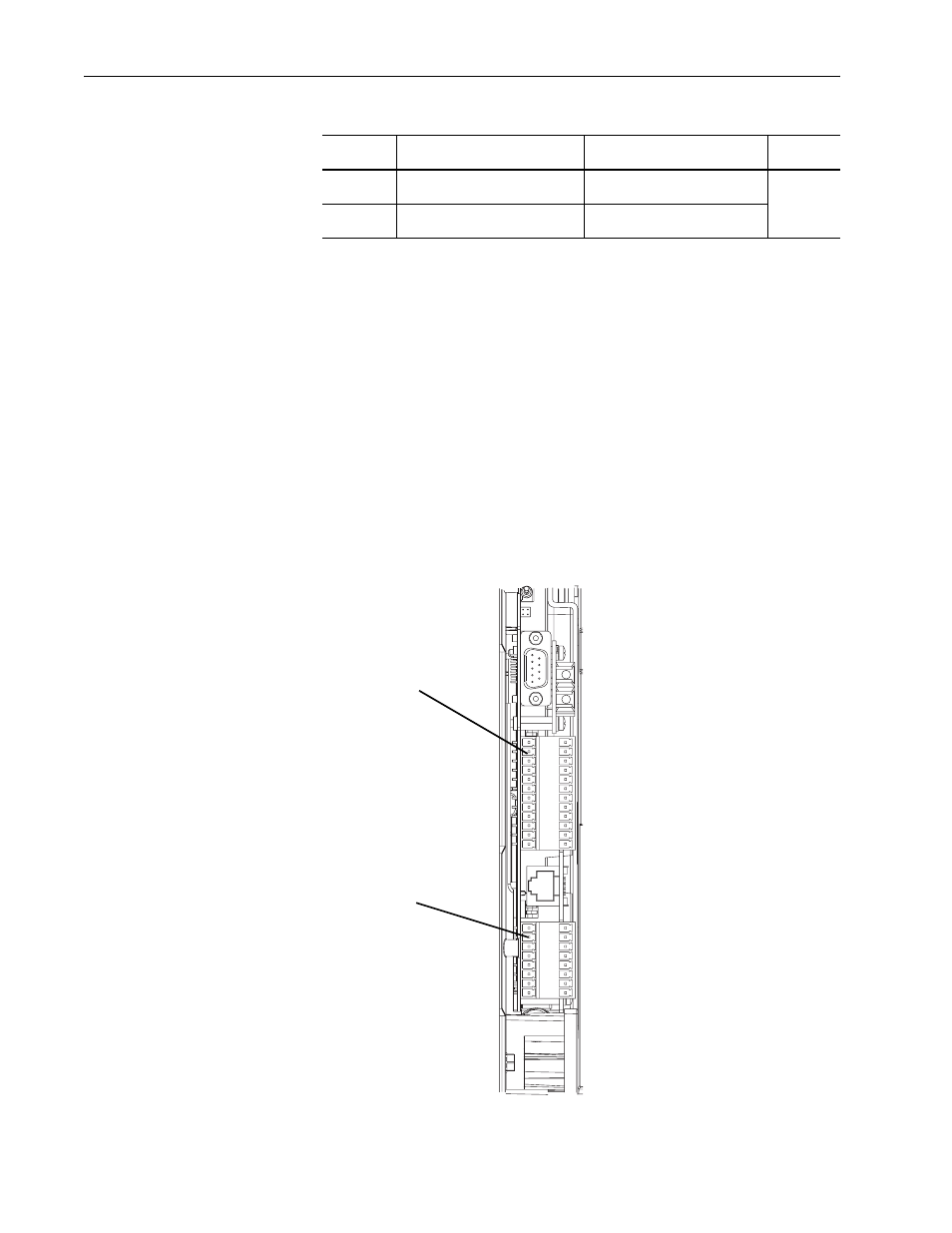

Figure 1.9 Main Control Board I/O Terminal Locations
Type Wire Type(s) Description
Insulation
Rating
Unshielded Per US NEC or applicable national
or local code — 300V,
60°C
(140°F)
minimum
Shielded Multi-conductor shielded cable
such as Belden 8770(or equivalent) 0.750 mm 2 (18AWG),
3 conductor, shielded.
TB1 Terminals
TB2 Terminals
