3-2 Configuring the Adapter
The PowerFlex 4-Class HIM (Human Interface Module) can be used to
access parameters in the adapter (see basic steps shown below). It is
recommended that you read through the steps for your HIM before
performing the sequence. For additional HIM information, refer to your
HIM Quick Reference card.
Using the HIM
Using the PowerFlex 4-Class HIM

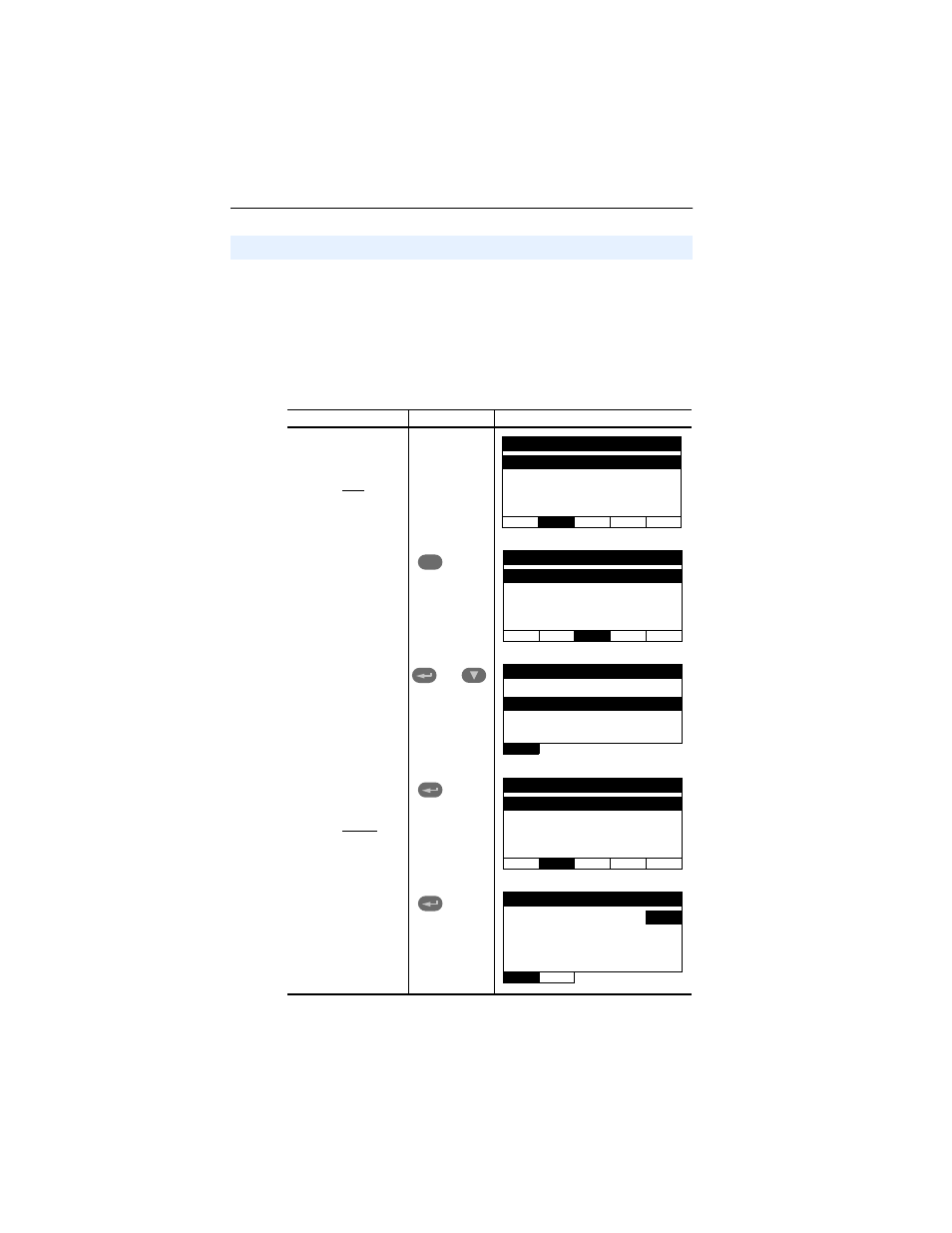

Step Key(s) Example Screens
1. Power up the drive.
Then plug the HIM
into the drive. The
Parameters menu
for the drive will be
displayed.
2. Press Sel key once
to display the
Device Select
menu.
3. Press Enter to
display the DSI
Devices menu.
Press Down Arrow
to scroll to
22-COMM-D.
4. Press Enter to select
the DeviceNet
adapter. The
Parameters menu
for the adapter will
be displayed.
5. Press Enter to
access the
parameters. Edit the
adapter parameters
using the same
techniques that you
use to edit drive
parameters.
Parameters
Groups
Linear List
Changed Params
DIAG PARAM DSEL MEM SEL !
Sel
Device Selected
DSI Devices
DIAG PARAM DSEL MEM SEL !
and
DSI Devices
PowerFlex 40
22-COMM-D
Parameters
Linear List
Changed Params
DIAG PARAM DSEL MEM SEL !
Mode RO
Parameter: # 001
Single Drive 0
VALUE LIMITS SEL !
