Connecting the adapter to the drive, Connecting the adapter to the drive -5, Figure 2.5 – Rockwell Automation 22-COMM-D DeviceNet Adapter User Manual

Page 21: Item 2.)

Installing the Adapter

2-5

1. Remove power from the drive.

2. Use static control precautions.

3. Mount the adapter on the cover, using the screw on the adapter to

secure it in place.

Important: Tighten the screw in the lower left hole to ground the

adapter (see

4. Connect the Internal Interface cable to the DSI port on the drive and

then to the mating DSI connector on the adapter.

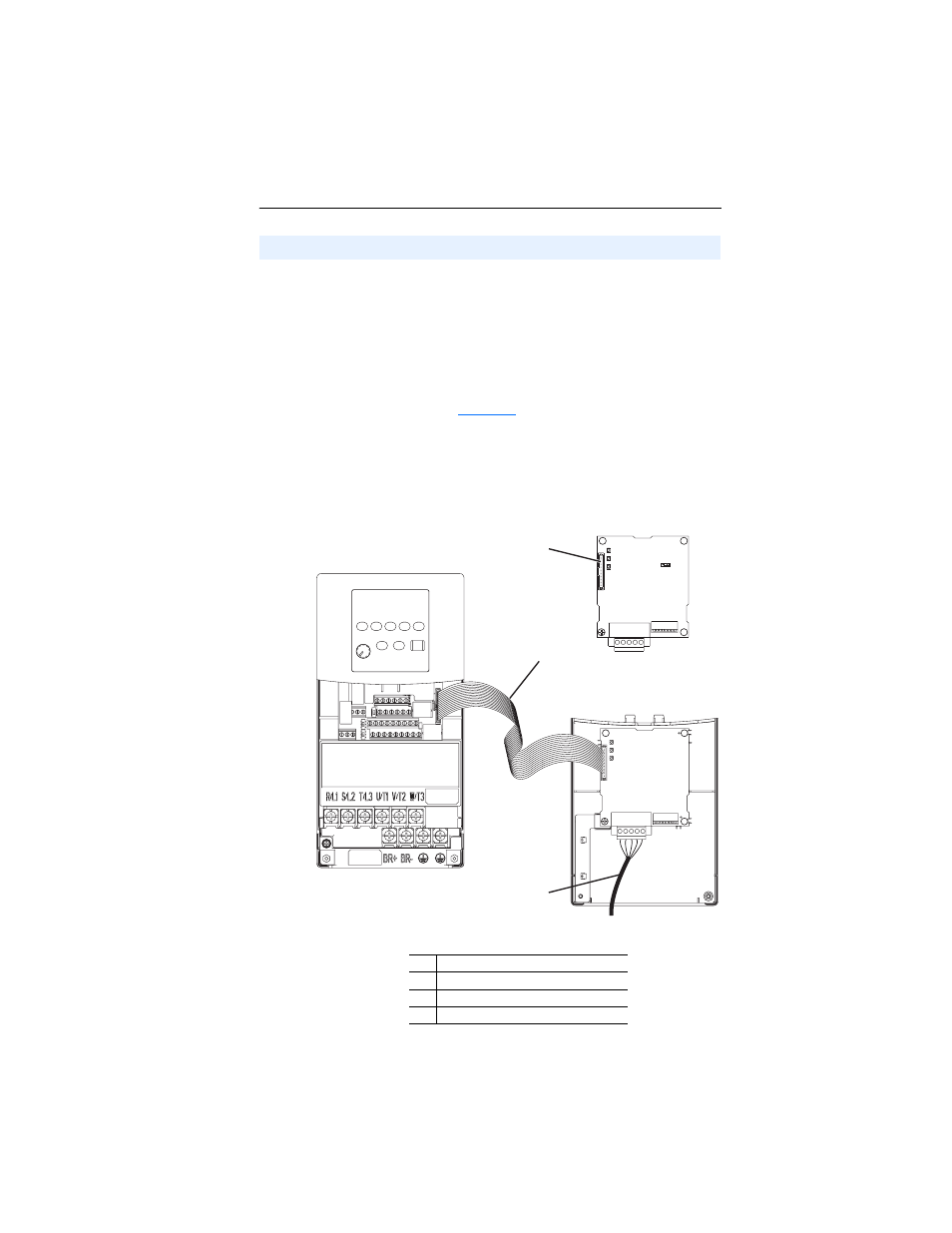

Figure 2.5 DSI Ports and Internal Interface Cables

Connecting the Adapter to the Drive

Description

➊

DSI Connector

➋

15.24 cm (6 in.) Internal Interface cable

➌

DeviceNet cable

➊

➋

DeviceNet Adapter

PowerFlex 40 Drive

B and C Frames

(cover removed)

➌

Back of Cover
